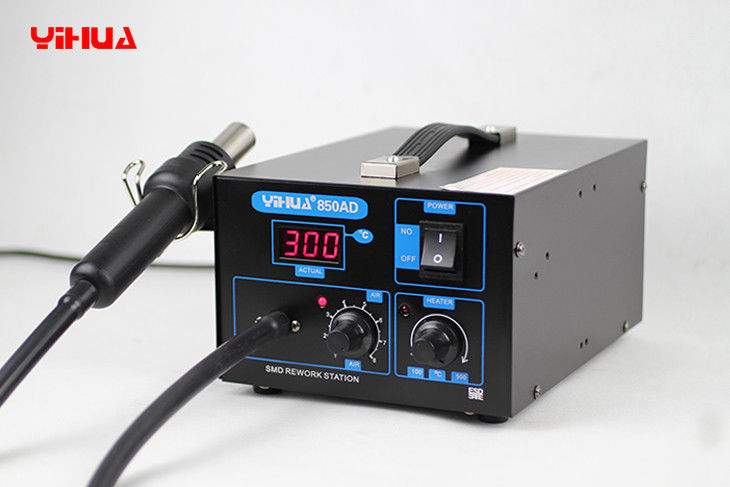

Air Pump SMD Rework Station Of Micro Computer Control , Electronic Soldering Station

Air Pump SMD Rework Station Of Micro Computer Control , Electronic Soldering Station

  • Air Pump SMD Rework Station Of Micro Computer Control , Electronic Soldering Station
  • Air Pump SMD Rework Station Of Micro Computer Control , Electronic Soldering Station
  • Air Pump SMD Rework Station Of Micro Computer Control , Electronic Soldering Station
  • Air Pump SMD Rework Station Of Micro Computer Control , Electronic Soldering Station
Air Pump SMD Rework Station Of Micro Computer Control , Electronic Soldering Station
Product Details:
Place of Origin: Guangzhou China
Brand Name: YIHUA
Certification: CE
Model Number: 850AD
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 6PCS / CTN
Payment Terms: T/T / PAYPAL / WESTERN UNION
Contact Now
Detailed Product Description
High Light:

cell phone soldering station

,

temperature controlled soldering station





Air Pump SMD Rework Station Of Micro Computer Control , Electronic Soldering Station Features



 1.YIHUA 850AD hot air rework station use lastest and good quality diaphragm pump , LED shows air gun work temperature , wind pressure large ,
use long lifetime ( use the smaller nozzles , the more large wind pressure , our company accompany 4 nozzles ,

easy to operate.)

2. Low noise design , it avoid to obsession when use the machine.

3. Air gun heating elements use skeleton type , high quality , it durable and effectively extend the service life of heating elements.

4. Gun line is silica gel line , durability.

5. Temperature precision control , when use it , the temperature control range ±15°C.

6. The system has automatic cold wind feature to extend life and protect  the hot air gun and pump.

7. Airflow can adjustable , a large amount of gentle wind , temperature  regulation , it can adapt to multiple use.

8. Use high-quality pump , long lifetime , low noise ; use high-quality heater , it durable and and effectively extend the service life of heating elements.





Air Pump SMD Rework Station Of Micro Computer Control , Electronic Soldering Station Main Function



1. Comfortable portable handheld and the Digital LED display.

2. Microcomputer control , warming-up quickly.

3. Adjust the air flow and temperature control rotation.

4. Refer to the instructions included with three kinds of nozzles ( big , medium  and small ) replacement part.

5. Would replace the part if the resistance value is incorrect.

6. High-quality resistance good for long service life.





Air Pump SMD Rework Station Of Micro Computer Control , Electronic Soldering Station Technical Data



Power consumption 550W
Gun temperature  100-500oC
Gun type  Diaphragm pump
Air flow 24L / MIN
Gun heater material  Nickel-alloys
Gun heater resistance  90Ω
Inner box dimension (cm)  32*27*19.8
Outer box dimension (cm)  56*34*60
Outer carton box Q'TY 6PCS / CTN
Product weight 3.1KG / PCS





What Difference For Brushless Fan And Diaphragm Pump?



diaphragm pump the air are focus , airflow are 24L / min. brushless fan the air are soft , airflow are 120L / min.









What's In The Box


* main unit + gun + power cord
* guide
* 3 nozzles


These are 220V units you may need a transformer to use the machine in your country. we also do accept special orders for 110V  / 230V / 240V units
