Name: SMD Hot Air 3 in1 Repairing & Rework Station AOYUE 968 Soldering Irons & Stations Welding Iron
Brand: Guangzhou EPT Environmental Protection Technology Co.,Ltd
SKU: AOYUE 968
Availability: InStock

Home Products Solder Fume Extractor

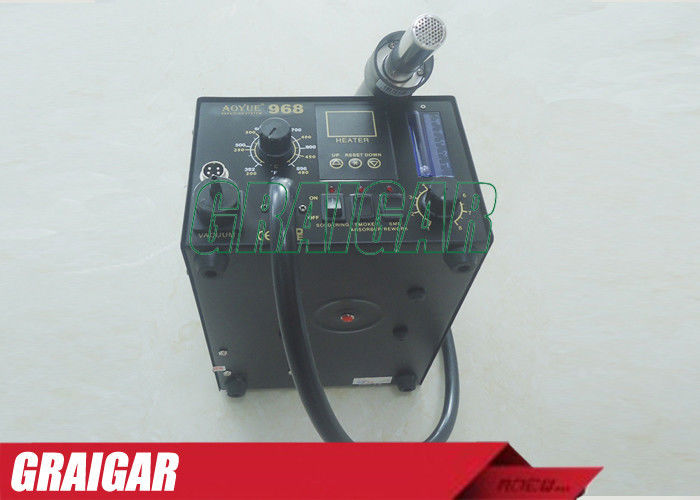

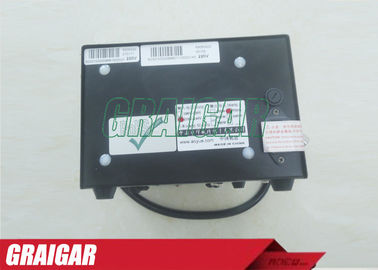

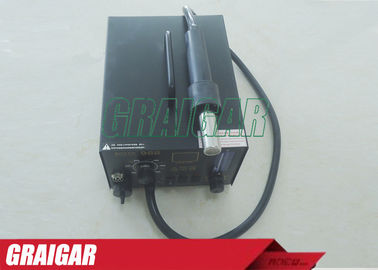

SMD Hot Air 3 in1 Repairing & Rework Station AOYUE 968 Soldering Irons & Stations Welding Iron

Product Details:

Place of Origin:	China
Brand Name:	AOYUE
Certification:	CE/ROHS/SGS/ISO9001
Model Number:	AOYUE 968

Payment & Shipping Terms:

Minimum Order Quantity:	1 pieces
Price:	negotiation
Packaging Details:	Packed in carrying bag firstly,and then reinforced with export carton for outer packing
Delivery Time:	3 working days after received your payment
Payment Terms:	T/T, Western Union, Paypal, L/C, MoneyGram
Supply Ability:	1000 pieces per week

Contact Now

Detailed Product Description

Power Input:	Available In 110V / 220V	Power Consumption:	35W
Temperature Range:	200 - 480 Degrees Celsius	Heating Element With Tip:	Ceramic Heater
Pump/Motor Type:	Diaphragm Pump	Air Capacity:	23 L /min (max)
Heating Element:	Metal Heating Core	Station Dimensions:	188(w) X 126(h) X 250(d) Mm
Highlight:	welding equipments , welding tools and equipment

SMD Hot Air 3 in1 Repairing & Rework Station AOYUE 968 Soldering Irons & Stations Welding Iron

PRODCUT DESCRIPTION:

1.Creative built-in smoke extractor that absorbs the fumes created at the source.

Eliminates the space hindering smoke absorbing units yet allowing a healthy environment.

2.Microprocessor precisely controls temperature and airflow.

3.Digital display of hot air set and actual temperature as well as its airflow.

4.Microprocessor controlled with self-testing hot air heating core system which warns

user when ageing or breakdown of heating core occurs.

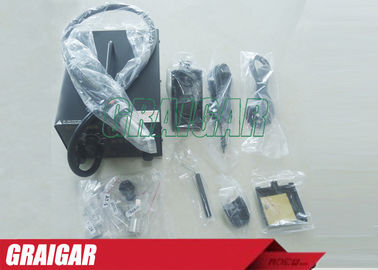

Package content:

968 Station with hot air gun, Air nozzles (1124,1130,1197,1313), B003 Soldering iron,2630 Soldering iron

holder, Z003 Hot air gun holder, G001 IC Popper, 2 pcs. Filter pads, Power cord

Power Input :	available in 110V / 220V
Station Dimensions:	188(w) x 126(h) x 250(d) mm
Weight:	5.25Kg
SOLDERING IRON
Power Consumption:	35W
Temperature Range:	200 - 480 degrees Celsius
Heating Element with Tip:	Ceramic Heater
Output Voltage:	24V
Tip to Ground Resistance:	Below 2 ohms
Tip to Ground Potential:	Below 2mV
HOT AIR
Power Consumption:	550W
Temperature Range:	100 - 480 degrees Celsius
Heating Element	Metal Heating Core
Nozzle to Ground Resistance:	Below 2 ohms
Pump/Motor Type:	Diaphragm Pump
Air Capacity:	23 L /min (max)
Automatic Reworking Time:	20-9999 seconds
SMOKE ABSORBER
Vacuum Pressure:	600mm Hg
