2 In 1 Soldering Station YIHUA 852D ( Diaphragm Pump ) Rework Soldering Station

2 In 1 Soldering Station YIHUA 852D ( Diaphragm Pump ) Rework Soldering Station

  • 2 In 1 Soldering Station YIHUA 852D ( Diaphragm Pump ) Rework Soldering Station
  • 2 In 1 Soldering Station YIHUA 852D ( Diaphragm Pump ) Rework Soldering Station
  • 2 In 1 Soldering Station YIHUA 852D ( Diaphragm Pump ) Rework Soldering Station
  • 2 In 1 Soldering Station YIHUA 852D ( Diaphragm Pump ) Rework Soldering Station
  • 2 In 1 Soldering Station YIHUA 852D ( Diaphragm Pump ) Rework Soldering Station
  • 2 In 1 Soldering Station YIHUA 852D ( Diaphragm Pump ) Rework Soldering Station
2 In 1 Soldering Station YIHUA 852D ( Diaphragm Pump ) Rework Soldering Station
Product Details:
Place of Origin: Guangzhou China
Brand Name: YIHUA
Certification: CE
Model Number: 852D(diaphragm pump)
Gun type:: Diaphragm pump
Inner box dimension(cm):: 32*27*20.2cm
Outer box dimension(cm):: 58*35*63.5cm
Voltage: 110V / 220V / 230V / 240V optional
goods weight: 4.26kg / pcs
G.W.: 25.56KG / CTN
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 6PCS / CTN
Payment Terms: T/T PAYPAL WESTERN UNION
Contact Now
Detailed Product Description
High Light:

Lead free Solder Station

,

temperature controlled soldering station





2 In 1 Soldering Station YIHUA 852D (Diaphragm Pump) Rework Soldering Station Main Function



1. Comfortable portable handheld and the Digital LED display.

2. Microcomputer control , warming-up quickly .

3. Adjust the air flow and temperature control rotation.

4. Refer to the instructions included with three kinds of nozzles ( big , medium and small ) replacement part .

5. Would replace the part if the resistance value is incorrect.

6. When the temperature is less than 70 degree , can stop rotation automatically.

7. Intelligent system that could alarm , Fault detection automatically.

8. This product is ESD-protected.

9. High-quality resistance good for long service life

10. Shell using alloy materia l, elegant appearance .

11. Safe solder QFP , PLCC , BGA and other temperature-sensitive components .

12. Intelligent detection and cool airflow features .

13. Green lines and high-quality silicone body heat good for extend life and save power .





 In 2 In 1 Soldering Station YIHUA 852D (Diaphragm Pump) Rework Soldering Station Technical Data



Power consumption



600W

Gun temperature range

100-450oC

 Soldering Iron Temperature range

200-450oC

Gun type

Diaphragm pump

Air flow 24-28L / MIN

 Soldering Iron type

Black handle

Gun heater material

Nickel-Alloys

Soldering Iron heater material

Common heater

Gun heater resistance

90Ω

Soldering Iron heater resistance

15Ω





*What difference for brushless fan and diaphragm pump ?


diaphragm pump the air are focus , airflow are 24~28L / min. brushless fan the air are soft , airflow are 120L / min.



Model NO.

Inner box

Dimension(cm)

Outer box

Dimension(cm)

QTY

Prduct weight

YIHUA 852D(Diaphragm pump)

32*27*19.8

56*34*60

6PCS

4.26g







What's In 2 In 1 Soldering Station YIHUA 852D (Diaphragm Pump) Rework Soldering Station Inner Box


* main unit + gun + power cord
* guide
* soldering iron
* soldering iron holder
* 3 nozzles





Remark



Specifications and design subject to change without notice

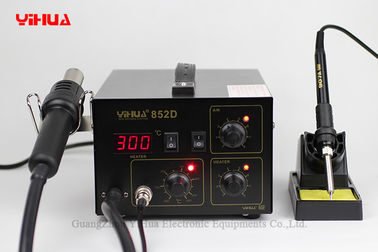

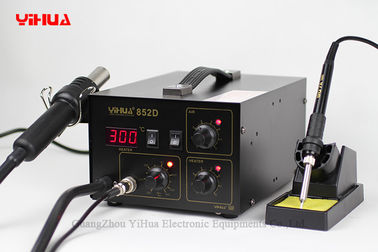

2 In 1 Soldering Station YIHUA 852D ( Diaphragm Pump ) Rework Soldering Station Picture







These are 220V units, you may need a transformer to use the machine in your country. we also do accept special orders for 110V  / 230V / 240V units.


2 In 1 Soldering Station YIHUA 852D ( Diaphragm Pump ) Rework Soldering Station Our Warranty



*Credit Safeguard



GuangZhou YiHua Electronic Equipments Co,. Ltd  was signed a contract with Alibaba and  paid a large deposit , make buyers fee l comfortable buying



*Factory advantage



Factory D&R / production / sales / and sales service together.

Manufactory  sell directly , the goods are in plenty supply , delivery date fast,good compete price You could arrange to ship the goods by your self , or  ask we help you arrange to ship . If  we help you arrange to ship. Before quote the shipping freight , we need to know which model and quantity you are asking. We will according your detail address , order model and quantity to advise  you ship by sea  or , by air , or by Express . As usual , we are using HongKong DHL to ship the small order .



*Delivery date



As usual , 1~16pcs are 1~3 days will ship out . Made in time , fresh from the assembly line.

Over 100~over 500pcs are 20days  will ship out. Over 1000pcs are 30days .

If the material not enough or we have some customer  queue up our products before you ,

we will discuss with you the shipping date. If you want the delivery date faster than that day , please inquiry us , we will try to do it as your request .



*Warranty policy



One Years warranty

As usual, the shipping fee are high . if return China to repair are not worth the money . So we could support technology and give you the spare parts along with the product .

Note warranty does not cover wearing parts , for example iron heater , gun heater , iron tips .



*Products  discount



as usual we quote three price for each model sample price , over 60pcs price , over 500pcs price.

Those price are calculate our produce cost , as you know big order are less margin to sell . we hope take win-win business with both .
