YIHUA 853D 1A with 5V Output USB interface has Auto / Manual conversion function 3in1 Soldering Station

YIHUA 853D 1A with 5V Output USB interface has Auto / Manual conversion function 3in1 Soldering Station

    • YIHUA 853D 1A with 5V Output USB interface has Auto / Manual conversion function 3in1 Soldering Station
    • YIHUA 853D 1A with 5V Output USB interface has Auto / Manual conversion function 3in1 Soldering Station
    • YIHUA 853D 1A with 5V Output USB interface has Auto / Manual conversion function 3in1 Soldering Station
    • YIHUA 853D 1A with 5V Output USB interface has Auto / Manual conversion function 3in1 Soldering Station
    • YIHUA 853D 1A with 5V Output USB interface has Auto / Manual conversion function 3in1 Soldering Station
  • YIHUA 853D 1A with 5V Output USB interface has Auto / Manual conversion function 3in1 Soldering Station

    Product Details:

    Place of Origin: Guangzhou China
    Brand Name: YIHUA
    Certification: CE
    Model Number: 853D 1A(A/M)
    inner box size: 32*27*19.8cm
    outer carton box size: 56*34*62cm
    goods weight (1A): 4.06kg/pcs
    outer carton box quantity: 6pcs /carton
    Case color(1A): Black
    Soldering iron heater: Common heater
    Gun type: Brushless fan
    G.W.:: 25.06KG/CTN

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Packaging Details: 6PCS / CTN
    Payment Terms: T/T/ PAYPAL / WESTERN UNION
    Contact Now
    Detailed Product Description





    YIHUA 853D 1A with 5V Output USB interface has Auto / Manual conversion function 3in1 Soldering Station





    YIHUA 853D 1A with 5V Output USB interface has Auto./Manual conversion function 3in1 Soldering Station Main Function



    This mode has all merits of origin YIHUA 853D 1A,and add the follow function



    1.Iron handle add to iron sleep function: iron handle have 10mins sleep function.

    2.Air gun handle add to auto./manual conversion function ,

    Manual mode: air gun back into the handle frame, air gun to maintain the current state of the work, the manual m ode is suitable for frequent use of air guns, eliminating the need for back and forth to cool the warming process, convenient.

    Automatic mode: air gun back into the handle frame, air gun automatic cooling to standby, automatic mode for infrequently used air gun to save energy and reduce wear and tear on the machine, to extend the life of the machine.

    3.This new type add to 5V output USB interface ,it more convenience repair mobile phone,also can use power supply for mobile.

    4.all parts is LED digital display ,and the current is 4 digital precise display current value,the

    current value can precise display mA value.it is very directly perceived through the senses.

    5.The goods inside board use double panel SMT technology,the performance more stability and durable.

    6.Wiring terminal output use thick material than before,then the output end power will be larger than before.

    7.Power tube install insiade the machine.

    8.The machine inside circuit board is SMT double panel.





    YIHUA 853D 1A with 5V Output USB interface has Auto./Manual conversion function 3in1 Soldering Station Technical data



    Rated voltage: AC 220V±10% 50HZ ( 110V±10% 50HZ)

    Total Power: 700W+50W+15W=765W±10%(max)

    Work environment : 0-50°C

    Iron parts

    Gun parts

    Dc power supply parts

    Work Voltage :AC:26V±10% 50HZ

    Work Voltage: AC:220V±10% 50HZ( 110V±10% 50HZ)

    Work Voltage:AC 20V±10% 50HZ ( 110V±10% 50HZ)

    Output power:50W±10%

    Output power:700W±10%

    Output power:15W/30W/45W

    Temperature range:200°C-480°C

    Temperature range:100°C-480°C

    Output voltage:0-15V

    Output current:1A/2A/3A

    Temperature stability:±2°C

    Temperature stability:±2°C

    Load stability:<0.01±2mv

    Tip of ground impedance<2ohm

      Recovery time:<100us
    Tip of ground voltage<2mV   Ripple dB<1mvrms (virtual value)
        Temperature coefficient:<300PPm/°C
        Protection starting current:>standard value 10%

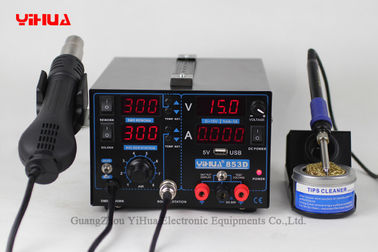

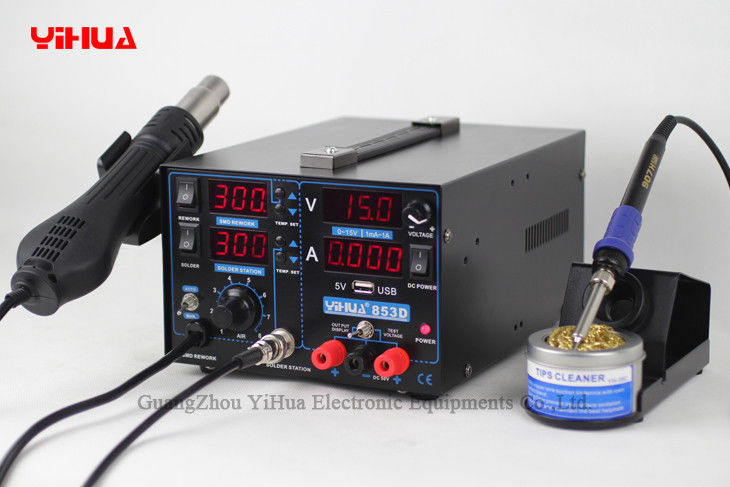

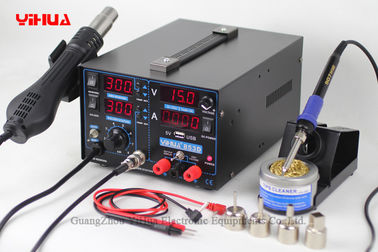

    YIHUA 853D 1A with 5V Output USB interface has Auto./Manual conversion function 3in1 Soldering Station Pictures display











    What's YIHUA 853D 1A with 5V Output USB interface has Auto./Manual conversion function 3in1 Soldering Station in the box

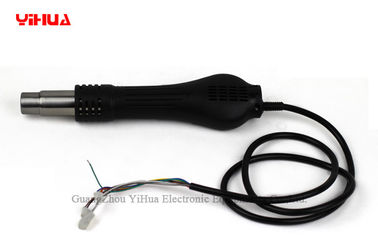

    * main unit + gun + power cord
    * guide
    * soldering iron

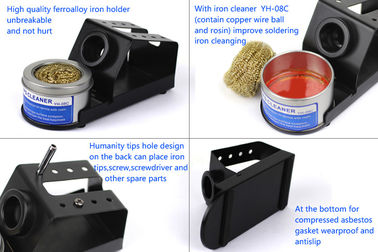

    * soldering iron holder +gun frame+testleadest cable
    * 4 nozzles







    These are 220V units, you may need a transformer to use the machine in your country. we also do accept special orders for 110V / 230V/ 240V units.
