Large Power Mobile Phone Rework Station Lead-free LCD Repair Machine , Welding Station soldering station

Large Power Mobile Phone Rework Station Lead-free LCD Repair Machine , Welding Station soldering station

    • Large Power Mobile Phone Rework Station Lead-free LCD Repair Machine , Welding Station soldering station
    • Large Power Mobile Phone Rework Station Lead-free LCD Repair Machine , Welding Station soldering station
    • Large Power Mobile Phone Rework Station Lead-free LCD Repair Machine , Welding Station soldering station
  • Large Power Mobile Phone Rework Station Lead-free LCD Repair Machine , Welding Station soldering station

    Product Details:

    Place of Origin: Guangzhou China
    Brand Name: YIHUA
    Certification: CE
    Model Number: 872D
    inner box size: 32*27*20.2cm
    outer box size: 58*35*63.5cm
    outer carton goods quantity: 6PCS
    G.W.: 25.2KG/CTN
    goods weight: 4.2kg/pcs
    color: white-blue

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Packaging Details: 6PCS / CTN
    Payment Terms: T/T/ PAYPAL / WESTERN UNION
    Contact Now
    Detailed Product Description

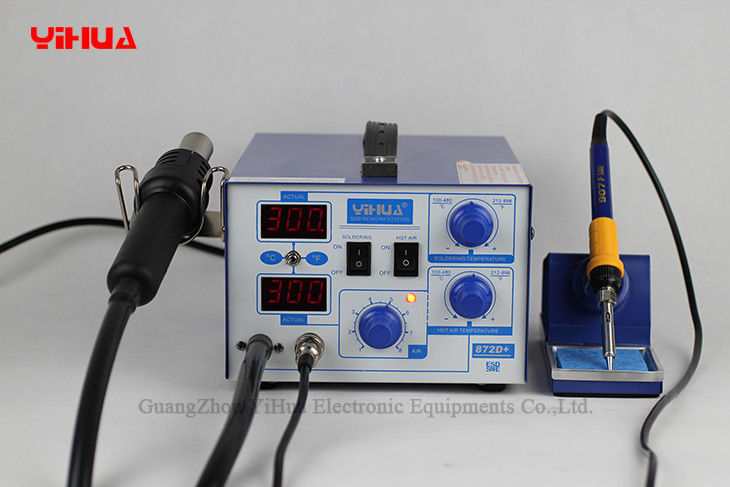

    Large Power Lead-free LCD Repair Machine,Welding Station soldering station




    Product Description



    Features:

    1. 872D+ integrate all merits of 872D,and YIHUA872D+ use imported large-power heater,and use bule Ferro-alloy iron holder.

    2. 872D+ Soldering station products according to different regions market demands, with designed Fahrenheit / Celsius temperature display accurate conversion, according to the country person custom method used to select the display preferences.



    Goods datas Specification:

                        Model 862 Series 872D+
    Power Consumption 700W 720W
    Measurement 124*187*249MM 124*187*157MM
    Weight 3.2KG 4.8KG
    Working environment 0~50°C 0~50°C/0~122°F
    Storage environment -20-80°C -20-80°C
    Hot Air Reworks
    Airflow type brushless fan gentle wind diaphragm pump spiral wind
    Air Flow ≤120L/min ≤24L/min
    Temperature Range 100°C-480°C 100°C-480°C
    Temperature Stability ±1°C ±1°C
    Display Type Digital Display Digital Display
    Handle length ≥90CM ≥90CM
    Soldering Iron
    Temperature Range 100°C-480°C 100°C-480°C
    Temperature Stability ±2°C ±2°C
    Tip of ground voltage <2mV <2mV
    Tip ground impedance <2 ohm <2 ohm
    Display Type Digital Display Digital Display
    Handle length ≥100CM ≥100CM
    Performance comparison table
    series 862 872
    Model 862D+ 872D+
    LED Display Two LED Two LED
    Fahrenheit/Celsius Conversion NO YES

    Controal Temperature

    Type

    Digtal PID Digtal PID
    Mannual/AUTO. YES NO
    High-temperature Protection YES YES
    Send air Type Brushless fan Diaphragm pump




    Packaging & Shipping




    What's in the box:
    * main unit + gun + power cord
    * guide
    * soldering iron
    * soldering iron holder

    * 4 nozzles

    *1pcs IC pick-up



    The following pictures is Soldering rework station air nozzles and soldering tips can choose to buy:







    .jpg



    Our Services

    Our warranty

    * Credit Safeguard

    GuangZhou YiHua Electronic Equipments Co,. Ltd was signed a contract with Alibaba and paid a large deposit, make buyers fee l comfortable buying



    * Delivery date

    Over 100~over500pcs are 20days will ship out. Over 1000pcs are 30days .

    If the material not enough or we have some customer queue up our products before you,

    we will discuss with you the shipping date. If you want the delivery date faster than that day, please inquiry us, we will try to do it as your request.

    * Warranty policy

    One Years warranty

    As usual, the shipping fee are high. if return China to repair are not worth the money. So we could support technology and give you the spare parts along with the product .

    Note: warranty does not cover wearing parts:, for example :iron heater, gun heater ,iron tips.



    * Warm-heart note

    1.If products upgrade or quality improve to change the technique parameter, the factory will not further notice.

    2.If the customer haven't special request, the product in accordance with factory's setting quality standards to produce
