Guangzhou EPT Environmental Protection Technology Co.,Ltd
High quality, Best service,Reasonable price.
|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||52x35x54cm/main body:13kgs 43x42x20/duct:4kg|
|Delivery Time:||10 working days after received your payment|
|Payment Terms:||T/T, western Union or Paypal|
|Supply Ability:||1,000pcs per month|
|Product Name:||3D Printing Fume Extractor||Application:||Removal Of Hazardous Particulate, Gases/vapours And Odours Associated With 3D Printing Methods.|
|Material:||Metal,Plastic,HEPA Filter||Noise:||Less Than 65 DB|
|Duct Diameter:||Dia.75mm X 1.40M||Voltage/Power:||110V-220V 200W|
|Systemic Flow:||330m3/h||Filtering Efficiency:||0.1micron 99.999%|

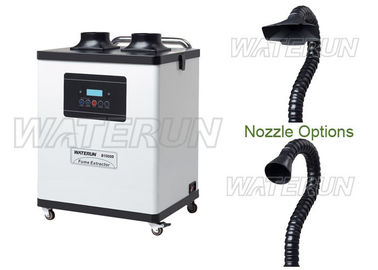

Mobile Portable Welding Fume Extractor Smoke Eater Dust Collector For Welding And Soldering
F8-filter + PP filter +Fiber glass filter + active carbon filter
Length of Duct:
Dia.75mm x 1.4m
Less than 65db
Waterun printing fume extraction systems effectively capture and remove the fumes generated by wide-format, continuous inkjet and laser printing processes. Potentially dangerous printing fumes are captured by powerful fume extractors and removed by activated and specialty impregnated carbon filters.3D printing fume extractor is designed for the 3D Printing industries, including Stereolithography, Selective Laser Sintering (SLS), 3D Printing, FDM (Fused Deposit Modelling), PolyJet Technology, WDM (Wax Deposition Modelling). The range of extraction systems combines high capture performance with proven filter technology, ensuring the effective removal of hazardous particulate, gases/vapours and odours associated with 3D printing methods.
1. Microcomputer chip control, intelligent digital display and equipped with the remote control.
2. Small, easy to use and install; standard castor for convenient and flexible movement.
3. Adopt DC brushless motor that has stable performance and long service life. Low noise, high efficiency, low energy consumption, zero maintenance and zero consumable.
4. The purification rate for 0.1micron harmful particles can reach up to 99.999%
5. It can purify the fumes, smells, dusts, PM2.5 and sterilization, it effectively purify the toxic and harmful gases in the air.
6. Circulating purification, without discharge cold or hot air
7. When the filter gets saturated and clogged, the machine will give sound and light alarms within 20 seconds. It notifies the operator to replace the filter in time, to guarantee a comfortable working environment.
1. Integrated body design, structured with metal framework and processed with electrostatic spraying for premium cold-rolled steel sheet, is corrosion-resistant, environment-friendly and durable.
2. Unique modeling curve design of original “air inlet flange” better accords with fluid mechanics principle.
3. Available for remote operation; stepless speed regulation for you to regulate air volume and suction force arbitrarily without the necessity of bending over and lowering your head.
4. Four-stage purification design: filtering step by step enables harmful smoke to be better purified. Even for objects at least 8 times smaller than PM2.5, the purification rate can reach up to 99.97%.
◆ Active carbon filter element with catalyst can absorb multiple substances that exist in the air to be purified and are with foreign odor, toxic and harmful.
◆ Modular design for protection layer by layer: Independent replacement of primary, medium and high-efficiency filter elements enables longer service life of filter element and lower use cost.
◆ Energy conservation and environmental protection: Built-in circular initiative filtering method can prevent indoor cold air/warm air from flowing outside without destroying temperature and humidity environment in the operation section.
5.This product has the 1.4m universal smoke suction arm, which can be positioned and oriented arbitrarily (its length may be regulated according to customer requirements, without the support of external force).
◆ Original square-shaped smoke hood, uniquely structured in accordance with aerodynamics principle, has larger smoke suction area and better efficiency. (A patent application has been filed.)
◆ Easy installation and convenient use without the necessity of laying pipes otherwise.
Waterun Technology Co.,Ltd manufacturing a variety of high quality air purification systems for filter the harmful substances. Our line of floor, bench top, mounted and portable units serve a variety of applications including welding, soldering, manufacturing, laboratory and pharmaceutical operations.
Don’t despair if you don’t see your application listed below. Our modular product line can be configured in a number of different ways to address your specific requirements.Contact us today to find out the solutions!
soldering fume extractor
laser cutting, laser engraving and marking
welding, laser welding,Argon Arc welding
medical, moxibustion, moxa-moxibustion
beauty fume extraction
Pharmaceutical and laboratories, chemical
Compared with the products from foreign countries, our products in terms of the effect is almost the same, but the majority of our products are less than USD2000, so our products are cost-effective, and the use of more affordable cost. The products from abroad mainly purify the viruses and bacteria as the main direction of governance. In China not only to purify viruses, bacteria, but also clean harmful smoke pollution. WHO estimates that there are over 200 million people deaths each year due to inhalation of indoor and outdoor air pollution in small particles.
Our company uses a brushless motor, compare with the ordinary motor, this motor speed is higher, lower noise, it does not require maintenance, but longer product life span. Self-developed impeller, better quality than ordinary plastic impeller, more stable, more powerful suction. The unique tiered filter design, can effectively purify the toxic and harmful substances in the air, such as formaldehyde, benzene, ammonia, radon gas, sulfur dioxide..etc, and use of low cost.
1. What’s the functions for the filters?
Answers. 1) Pre-Filter/F8 pre-filter: the large-size pad filter can filter large particles of dust (according the requirement to select pre-filter or F8)
2) PP Middle Filter/Fiber glass filter: it filters the middle-size, small size particles bigger powders for prolonging the main filter's life. (according the requirement to select PP middle filter or fiber glass filter,can use both, the efficiency better.)
3) Main Filter/Active carbon: it cleans harmful particles and fumes.
4) High efficiency filter(combine middle filter and active carbon filter): it can filter about 0.3micron particles and other harmful fumes.
2. What’s the advantage compare with ducted exhaust fan?
Answer: 1. Many advantages like (1) Clean the air quality (2) energy saving (3) easy installation, flexible remove (4) low cost (5) reduce the incidence of diseases and major diseases, and health is priceless (6) to reduce unpleasant smell (7) to reduce dust and other harmful substances, and so on.
3. What’s the life span of our fume extractor?
Answer: Motor lifetime is (continuous working 24 hours) 20,000 hours, consider environmental factors. Usually it can use 4-5 years without any problems.
4. The ducts for the fume extractor can be shortened or lengthened?
Answer: It can be shortened or lengthened appropriate; but we suggest not more than 1.5meter. For multi-station, the total pipe length should not exceed 10 meters.
5. What’s the best distance between the nozzle and the smokes?
Answer: The distance to be 5-15cm is the best.
6. How long need to to replace the pre-filter, middle filter and the main filter?
Answer: 1. Pre-filter : normally needs to replace by 1 months
2. Middle filter: normally needs to replace by 3 months
3. Main filter: normally needs to replace by 6 months.
7. Bent pipe will affect smoke purify?
Answer: Yes, it affect the suction power, it should reduce the bent rate.
8. Can our fume extractor completely filtered poison gas?
Answer: No, there still no any kind of filter can filter out 100% of poison gas, but you can make a different filter net rate upon request.
