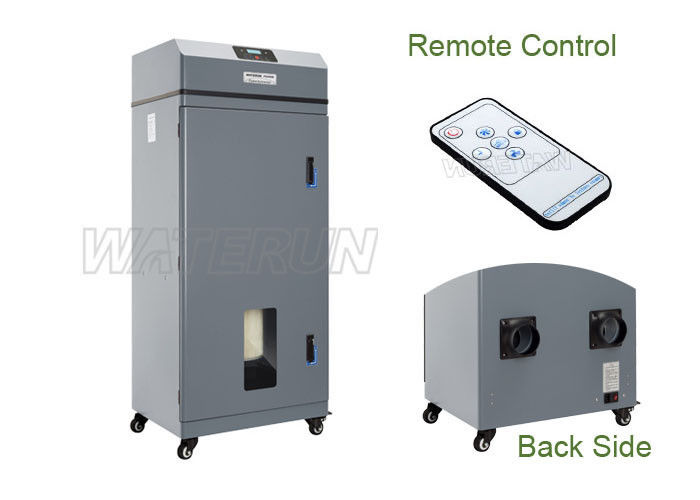

HEPA Filters Portable Dust Collector for Dust and Fume Collection

HEPA Filters Portable Dust Collector for Dust and Fume Collection

  • HEPA Filters Portable Dust Collector for Dust and Fume Collection
HEPA Filters Portable Dust Collector for Dust and Fume Collection
Product Details:
Place of Origin: China
Brand Name: Waterun
Certification: CE/ROHS/SGS
Model Number: F6000D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: 65x54x140cm/set, 75kgs
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, western Union or Paypal
Supply Ability: 1,000pcs per month
Contact Now
Detailed Product Description
Product Name: HEPA Filters Portable Dust Collector With Castor For Dust And Fume Collection Application: Dust And Fume Collection
Filter: 8 Filter Duct Lenght: 1.4m
Noise: Less Than 75 DB Power: 700W
Systemic Flow: 620m3/h Filtering Efficiency: 99.97% 0.3micron
High Light:

welding dust collector

,

industrial dust collector

HEPA Filters Portable Fume Extractor for Dust and Fume Collection





Specifications:



Model

F6000D

Filter Quality 8 Filter
Power 700W
Size 550 x 415 x 1300 mm
Systemic Flow 620m3/h
Filtering Efficiency 0.3micron 99.97%

Voltage

110-220V

Flange 2 pcs (90mm)
Lenght of Duct 1.4m or Custom

Dia of Duct

Dia.75mm

Noise

Less than 75db

Net weight

75kgs

Castor 4 pcs





8 Filters of F6000D:



Filter-1 Pre-filter
Filter-2 F8 filter
Filter-3 PP filter (HEPA Filter)
Filter-4 Fiberglass (HEPA Filter)
Filter 5-8 Activated carbon





Description:



1. F6000D Portable Dust Collector effectively remove the fumes generated in many electronics manufacturing processes.



2. HEPA filter F6000D applications include solder smoke removal, reflow ovens, wave soldering, plasma cutting, conformal coating fumes and cleaning solvent fumes.



3. Multiple filtering ensure through purifying efficiency



4.These efficient and economical fume extractors are easy to install, reliable and safe.



5. High voltage and large volume brushless motor.



6. With truly sensitive and effective “filter clogging alarm system”



7. Equipped with the remote control, the operator can control the machine from a distance.





Applications:



1 SMT Automation Equipment
2 Powder Collect, Dust Collect

3

Soldering, Dip Soldering,Reflow Soldering,Wave Soldering,

4

Laser marking, Cutting, Engrave

5

Electronics Manufacturing

6

Welding, laser welding

7

Electric welding, Argon-arc Welding,Plasma Cutting



Waterun Technology Co.,Ltd manufacturing a variety of high quality air purification systems for filter the harmful substances. Our line of floor, bench top, mounted and portable units serve a variety of applications including welding, soldering, manufacturing, laboratory and pharmaceutical operations.



If F6000D Portable Dust Collector is not suitable for you, please contact us to find out the solustion!





Features:



1. Adopt DC brushless motor that has stable performance and long service life. Low noise, high efficiency, low energy consumption, zero maintenance and zero consumable.

  • The wind wheel, designed in vortex backward type, adopts special alloy material that could effectively prevent itself from being corroded. Unique dynamic balance correction technology enables it to operate more stably and reliably, with higher wind suction volume. (A patent application has been filed.)



2, Integrated body design, structured with metal framework and processed with electrostatic spraying for premium cold-rolled steel sheet, is corrosion-resistant, environment-friendly and durable.

  • Original noise reduction structure design enables it to work more quietly and create a more tranquil and pleasant environment.
  • Easy to use and install; standard castor for convenient and flexible movement.
  • Unique modeling curve design of original “air inlet flange” better accords with fluid mechanics principle (A patent application has been filed).
  • Microcomputer intelligent control and digital display keep you informed of the use condition all the time.
  • Really effective intelligent “filter element blockage alarm” function gives an acousto-optic alarm immediately upon filter element blockage.
  • Available for remote operation; stepless speed regulation for you to regulate air volume and suction force arbitrarily without the necessity of bending over and lowering your head.

3, Eight-stage purification: filtering step by step enables harmful smoke to be better purified. Even for objects at least 8 times smaller than PM2.5, the purification rate can reach up to 99.97%.

  • Active carbon filter element with catalyst can absorb multiple substances that exist in the air to be purified and are with foreign odor, toxic and harmful. Modular design for protection layer by layer: Independent replacement of primary, medium and high-efficiency filter elements enables longer service life of filter element and lower use cost.
  • Energy conservation and environmental protection: Built-in circular initiative filtering method can prevent indoor cold air/warm air from flowing outside without destroying temperature and humidity environment in the operation section.



4, CE and PONY certified, safe and reliable.

  • Designed according to standards: Indoor Air Quality Standard, GB21551.1- 2008 and GB/T 18801.
  • Awarded national appearance design patent and the overall structure utility model patent. No counterfeiting is allowed.



5, This product has the 1.4m universal smoke suction arm, which can be positioned and oriented arbitrarily (its length may be regulated according to customer requirements, without the support of external force). (A patent application has been filed.)

  • Original square-shaped smoke hood, uniquely structured in accordance with aerodynamics principle, has larger smoke suction area and better efficiency. (A patent application has been filed.)
  • Easy installation and convenient use without the necessity of laying pipes otherwise.



Competitive Advantage:



1. Compared with the extrators from other countries, our products in terms of the effect is almost the same, but the majority of our products are less than USD2000, so our products are cost-effective, and the use of more affordable cost.



2. Our company uses a brushless motor, compare with the ordinary motor, this motor speed is higher, lower noise, it does not require maintenance, but longer product life span.



3. Extractor from abroad mainly purify the viruses and bacteria as the main direction of governance. In China not only to purify viruses, bacteria, but also clean harmful smoke pollution. WHO estimates that there are over 200 million people deaths each year due to inhalation of indoor and outdoor air pollution in small particles.



4. Self-developed impeller, better quality than ordinary plastic impeller, more stable, more powerful suction. The unique tiered filter design, can effectively purify the toxic and harmful substances in the air, such as formaldehyde, benzene, ammonia, radon gas, sulfur dioxide..etc, and use of low cost.
