High Power 450W Welding Dust and Fume Extractor System for Dust Collecting AC 110V - 220V

High Power Welding Fume Extractor For Dust Collecting AC 110V - 220V

Specifications:

Description:

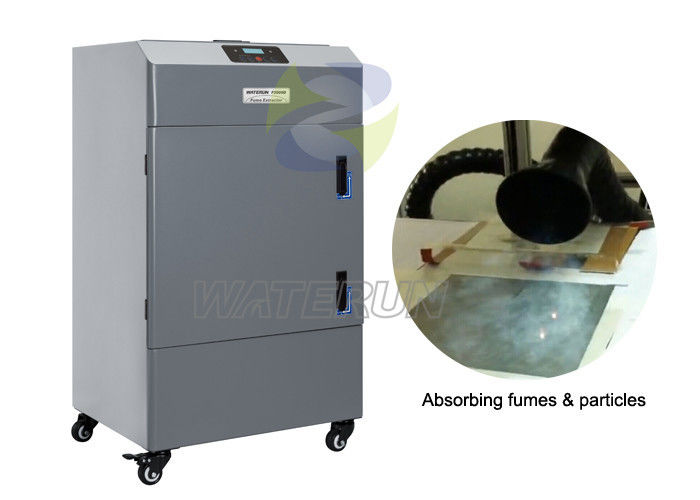

F5000D Dust Extraction Systems with High Efficiency 99.97%, Big Volume Brushless Motor designed by our company especially for dust collecting, waste gas and odor of tin furnace melting furnace Soldering welding argon arc welding, plasma cutting ink operation emissions, odor.

Features:


1. CE and PONY certified, safe and reliable.

• Designed according to standards: Indoor Air Quality Standard, GB21551.1- 2008 and GB/T 18801.
• Awarded national appearance design patent and the overall structure utility model patent. No counterfeiting is allowed.

2. Four-stage purification design: filtering step by step enables harmful smoke to be better purified. Even for objects at least 8 times smaller than PM2.5, the purification rate can reach up to 99.97%.

• Active carbon filter element with catalyst can absorb multiple substances that exist in the air to be purified and are with foreign odor, toxic and harmful.
• Modular design for protection layer by layer: Independent replacement of primary, medium and high-efficiency filter elements enables longer service life of filter element and lower use cost.
• Energy conservation and environmental protection: Built-in circular initiative filtering method can prevent indoor cold air/warm air from flowing outside without destroying temperature and humidity environment in the operation section.

3.  Integrated body design, structured with metal framework and processed with electrostatic spraying for premium cold-rolled steel sheet, is corrosion-resistant, environment-friendly and durable.

• Original noise reduction structure design enables it to work more quietly and create a more tranquil and pleasant environment.
• Unique modeling curve design of original “air inlet flange” better accords with fluid mechanics principle (A patent application has been filed).
• Microcomputer intelligent control and digital display keep you informed of the use condition all the time.
• Really effective intelligent “filter element blockage alarm” function gives an acousto-optic alarm immediately upon filter element blockage.
• Available for remote operation; stepless speed regulation for you to regulate air volume and suction force arbitrarily without the necessity of bending over and lowering your head.
• Small, easy to use and install; standard castor for convenient and flexible movement.

4. Adopt DC brushless motor that has stable performance and long service life. Low noise, high efficiency, low energy consumption, zero maintenance and zero consumable.

• The wind wheel, designed in vortex backward type, adopts special alloy material that could effectively prevent itself from being corroded. Unique dynamic balance correction technology enables it to operate more stably and reliably, with higher wind suction volume. (A patent application has been filed.

5. This product has the 1.4m universal smoke suction arm, which can be positioned and oriented arbitrarily (its length may be regulated according to customer requirements, without the support of external force). (A patent application has been filed.)

• Original square-shaped smoke hood, uniquely structured in accordance with aerodynamics principle, has larger smoke suction area and better efficiency. (A patent application has been filed.)
• Easy installation and convenient use without the necessity of laying pipes otherwise.


Applications:

Waterun Technology Co.,Ltd manufacturing a variety of high quality air purification systems for filter the harmful substances. Our line of floor, bench top, mounted and portable units serve a variety of applications including dust collecting,welding, soldering, manufacturing, laboratory and pharmaceutical operations.


Choose your work environment:

Our modular product line can be configured in a number of different ways to address your specific requirements.Contact us today to find out the solutions!


 D. Or You Only Need to Say You Use Fume Extractor For Welding Smoke Purifying


Competitive Advantage:

Our products uses a brushless motor, compare with the ordinary motor, this motor speed is higher, lower noise, it does not require maintenance, but longer product life span. Self-developed impeller, better quality than ordinary plastic impeller, more stable, more powerful suction. The unique tiered filter design, can effectively purify the toxic and harmful substances in the air, such as formaldehyde, benzene, ammonia, radon gas, sulfur dioxide..etc, and use of low cost.
Compared with the products from foreign countries, our products in terms of the effect is almost the same, but the majority of our products are less than USD2000, so our products are cost-effective, and the use of more affordable cost. The products from abroad mainly purify the viruses and bacteria as the main direction of governance. In China not only to purify viruses, bacteria, but also clean harmful smoke pollution. WHO estimates that there are over 200 million people deaths each year due to inhalation of indoor and outdoor air pollution in small particles.

FQAs:

1. What’s the life span of our Dust and Fume Extractor System​?
Answer: Motor lifetime is (continuous working 24 hours) 20,000 hours, consider environmental factors. Usually it can use 4-5 years without any problems.

2. What’s the advantage compare with ducted exhaust fan?
Answer: 1. Many advantages like (1) Clean the air quality (2) energy saving (3) easy installation, flexible remove (4) low cost (5) reduce the incidence of diseases and major diseases, and health is priceless (6) to reduce unpleasant  smell (7) to reduce dust and other harmful substances, and so on.

3. What’s the best distance between the nozzle and the smokes?
Answer: The distance to be 5-15cm is the best.

4. Bent pipe will affect smoke purify?
Answer: Yes, it affect the suction power, it should reduce the bent rate.

5. Can our fume extractor completely filtered poison gas?
Answer: No, there still no any kind of filter can filter out 100% of poison gas, but you can make a different filter net rate upon request.
