Cement Plant Dust Filtration Machine Cyclone Dust Collector with PTFE Filter Bag
Product Details:
Place of Origin: CHINA
Brand Name: ECOGRACE
Certification: ISO 9001:2008 certified / SGS approved
Model Number: EDMC82
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 9000 .00/ set
Packaging Details: steel frame / container
Delivery Time: 30-50 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets / months
Contact Now
Detailed Product Description
Type Of Dust Collector: Cyclone Dust Filter Cleaning Type: Online Cleaning
Gas Temperature: Room Temperature Material: Steel / Stainless Steel
Air Flow: 9000 M3/h Filter Speed: 1.20-1.70 M/min
Filter Bags: PTFE Filter Bag Shape: Small Type
High Light:

Cyclone Dust Filter

,

Cyclonic Dust Collector

Cement Plant Dust Filtration Machine Cyclone Dust Collector with PTFE Filter Bag





Cyclone dust collector, separate the dust from the machine with centrifugal force. For its wide range of

applications, simple structure, various kinds, has been widely applied in the industry. EDMC82 has a 9000 m3/h air flow and 1.2-1.7m/min filter speed, which is all the best so far. For its filter bag, PTFE is an excellent material with high temperature resistance, abrasion resistance and long service life.



Brief Introduction :

ECOGRACE smaller type dust collector Filter Unit is generally with smaller air flow from 3000 M3/H to 20000 M3/H , which is small in outside dimention.  We will design the most reasonable dimention for easy container loading and shipping , no need for more installatin work at production site. It will be assembled in whole and put into the container , you can directly start when take out from container . Mining area also take the dust collector filter unit from 3000 M3/H to 20000 M3/H .



Dust Collector  technical specification :

Model No.

EDMC 82

Air Flow

9000M3/H

Filter  speed

1.7 M/min

Temperature of the gas

Room ambient

Filtration area

110 M2

Filter media

Polyester filter bag

Filter bag size

D140X2600

Compressed air consumption

0.5-0.8 M3/min

Pulse valve size

 1 inch

Resistance

<1000 pa



Working Principle of  smaller Baghouse Dust Collector  :

1. The compostion of small dust collector unit  :

Single Baghouse and assembled in whole before shipping and only one step before starting .

Assmebled Filter Unit ,  Fan , PLC , air compressor .

2. The filter  cleaned  by solenoid valve pulse.  ASCO and GOYEN is the regular band we take .

3. Filter cage  and filter bag will be fit in the assembled baghouse .

4. Good and reasonable design for the hoods and capacity of dust collector will reach a very different working result for the steel plant induction furnace .



Advantage of ECOGRACE smaller dust collector Filter Unit :

1. Easy operation and maintenance.

2. Assembled when EX work from our factory and no more  intallation work needed.

3. High filtration efficiency up to 99.99%, low emission <30 mg/ M3.

4. Low energy cost.

5. Lower system resistance up to < 1000 pa.

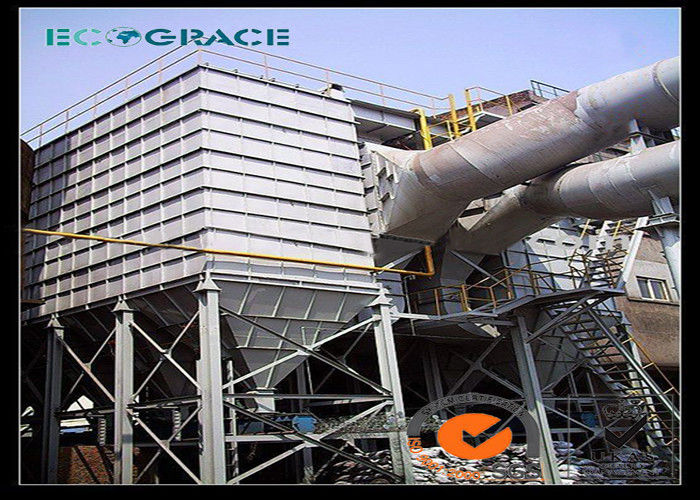

ECOGRACE Project Show :



Cement Plant Dust Filtration Machine Cyclone Dust Collector with PTFE Filter Bag 0Cement Plant Dust Filtration Machine Cyclone Dust Collector with PTFE Filter Bag 1
