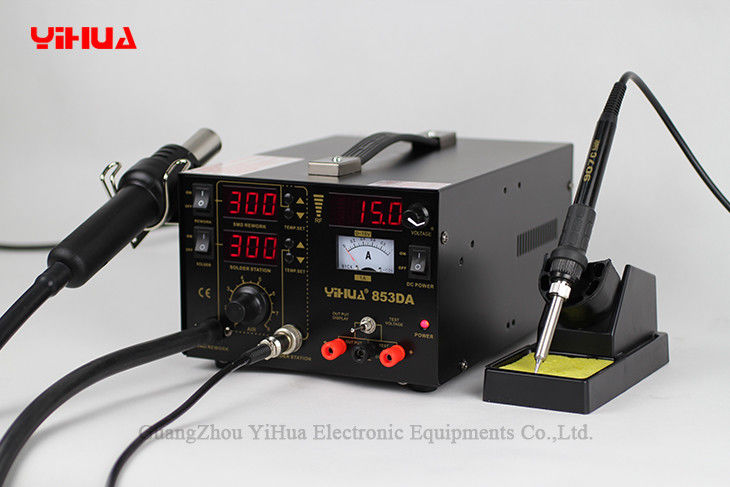

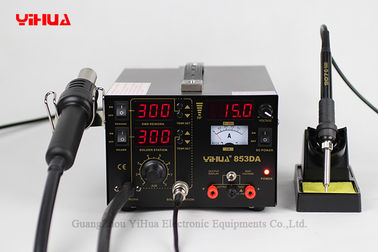

bga 3 In 1 Soldering Station

bga 3 In 1 Soldering Station
bga 3 In 1 Soldering Station bga 3 In 1 Soldering Station bga 3 In 1 Soldering Station bga 3 In 1 Soldering Station bga 3 In 1 Soldering Station bga 3 In 1 Soldering Station

Large Image :  bga 3 In 1 Soldering Station

Product Details:

Place of Origin: Guangzhou China
Brand Name: YIHUA
Certification: CE
Model Number: 853DA 1A

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: 4PCS/CTN
Inner box size: 33*27*20.2cm
Outer carton size: 56*34.5*42cm
Goods weight: 5.25kg/pcs
G.W.:: 22.13KG/CTN
Detailed Product Description
High Light:

temperature controlled soldering station


Lead free Solder Station



YIHUA 853DA 1A mobile phone bga rework station


Dear Customers:

 Recently illegal criminals counterfeit our machine that the machine we have independent

intellectual  property rights .Use three non false and inferior to assemble the device,

machine handle serious  security risks, the crisis to the user's safety. Recently, we will

take action in every major internet  sales platform to take activism.Infringement of our

intellectual property to promote fake and shoddy products off the shelf as soon as

possible to ensure the user's safety. Please  must  be careful to identify when you

purchasing, avoid fooled!

Product Description



Patented products, counterfeiting not allowed



Feature: has hot air rework,soldering station,powe supply 3 in 1 multi-functional tools,A product can meet customer testing,maintenance, welding and other demolition work .


2.Products within the exclusive use of double panels, patch (SMD) process, dual-CPU control,it has prolong lifetime.

3.Inside has dual-CPU control,,one of the bad, the other can continue to work, it ensure the main unit stability.

4.LED accurate display real-time temperature of the current work,procedures  in milliseconds to high speed track of the air gun and soldering iron actual temperature, rapid temperature compensation enhance the temperature stability.Avoid temperature error leading to damage delicate components,welcome to users thermometer test.

5.Use high quality Diaphragm pump air outlet,air is focus on and air pressure big, strong winds and long service life.

6.Air gun heater use of long-life Skeleton heating elements,long-term use it,will not deformation and not short-circuit,air gun handle air outlet tube and nozzles’s material is stainless steel.

7.Iron heateruse of new crafts and high-quality material,it prolong using lifetime,reducing the failure rate.

8.Power supply part:voltage:0~15V current:0~2A,its scope is far higher than the independent power supply,the most advanced short circuit protection auto recovery circuit, to full maintenance functions suitable for mobile phone maintenance, commissioning of production lines, laboratories and other occasions.



Main function:


1). Iron and gun temperature are using Intelligent Fuzzy logic PID control, therefore the temperature steady-state drift is relatively small, it overcomes the drift quite quickly even in a harsh environment.

2). Fan's airflow capacity,Iron and Hot air rework's temperature are all adjustable, the power supply  voltage is shown on the LED digital display, and it is constantly updated.

3). Iron, Gun and  power supply are using independent dual-core micro-controller, which means they can work independently, when the problem occurs on one tool it does not affect the others. Dual-core CPU is used to avoid failures .

4). Hot air rework, soldering iron are equipped by variety of fault protection

5). Power supply part of the recovery with continuous protection and RF protection, to avoid various unexpected burning mobile the phenomenon of interference.


6). The DC power supply provides power to a mobile phone, it can also detect the RF signal's strength through the LED indicator.



Technical data:


Rated voltage:  AC 220V±10% 50HZ ( 110V±10% 50HZ)

Whole machine  Power Consumption:  ≤800W

Work environment:  0-50°C



Iron parts


Gun parts


DC power supply parts


work Voltage :AC:26V±10% 50HZ


work Voltage:  AC:220V±10% 50HZ( 110V±10% 50HZ)


work Voltage:AC 220V±10% 50HZ ( 110V±10% 50HZ)


Output power:50W±10%


Output power:600W±10%


Output power:15W/30W


Temperature range:200°C-480°C


Temperature range:100°C-480°C


Output voltage:0-15V


Temperature stability:±2°C


Temperature stability:±2°C

Load stability:<0.01±2mv

Tip of ground impedance<2ohm

Gun type:Diaphragm pump

Airflow is focus on it,24L~28L/Min


recovery time:<100us

Tip of ground voltage: <2mV

Gun heater resistance:90Ω

Ripple dB<1mvrms (virtual value)

Iron Heater material: Common heater

Gun heater material:Nickel-alloys


Temperature coefficient:<300PPm/°C

Iron handle:Black handle

Protection starting current:>standard value 10%




Packaging & Shipping

What's in the box:
* main unit + gun + power cord

* guide

* soldering iron

* soldering iron holder +gun frame+testleadest cable
* 4 nozzles


These are 220V units you may need a transformer to use the machine in your country. we also do accept special orders for 110V  / 230V/ 240V units.




You could arrange to ship the goods by your self , or  ask we help you arrange to ship. If  we help you

arrange to ship. Before quote the shipping freight, we need to know which model and quantity you are

asking. We will according your detail address, order model and quantity to advise you ship by sea  or,

by air ,or by Express.


Delivery date


Over 100~over500pcs are 20days  will ship out. Over 1000pcs are 30days .

If the material not enough or we have some customer  queue up our products before you,

we will discuss with you the shipping date. If you want the delivery date faster than that day, please inquiry us,

we will try to do it as your request.

Our Services


One Years warranty

As usual, the shipping fee are high. if return China to repair are not worth the money. So we could support

 technology and give you the spare parts along with the product .

Note: warranty does not cover wearing parts:, for example :iron heater, gun heater ,iron tips.

Warm-heart  note

If the customer have special request, pls inform me before produce.DJUSTABLE TEMPERATURE CONTROLLED
