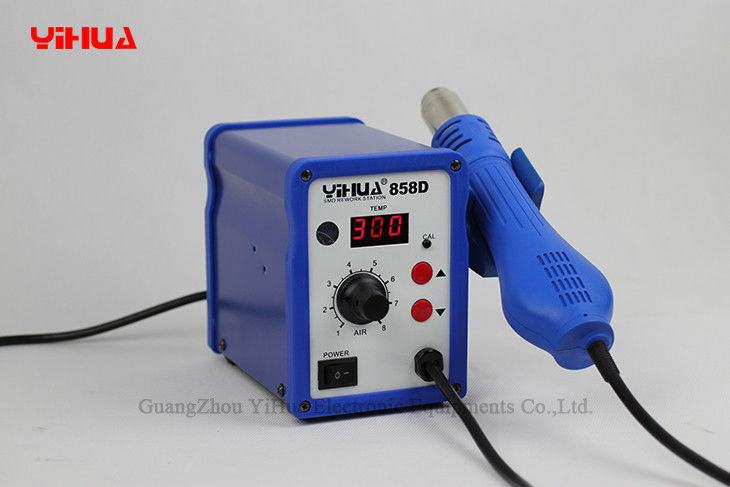

Digital Lead Free Mobile Phone Solder Stations , IC / PCB Rework Stations

Digital Lead Free Mobile Phone Solder Stations , IC / PCB Rework Stations

  • Digital Lead Free Mobile Phone Solder Stations , IC / PCB Rework Stations
  • Digital Lead Free Mobile Phone Solder Stations , IC / PCB Rework Stations
Digital Lead Free Mobile Phone Solder Stations , IC / PCB Rework Stations
Product Details:
Place of Origin: Guangzhou China
Brand Name: YIHUA
Certification: CE
Model Number: 858D
color: blue
Inner box size: 26*16.5*14.8cm
Outer box size: 54*34*47.5cm
Q'TY: 12PCS / CTN
G.W.:: 22KG / CTN
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 12PCS / CTN
Payment Terms: T/T / PAYPAL / WESTERN UNION
Contact Now
Detailed Product Description
High Light:

soldering desoldering station

,

smd rework station



Digital Lead Free Mobile Phone Solder Stations , IC / PCB Rework Stations Main Function

1. Comfortable portable handheld and the Digital LED display.
2. Microcomputer control,warming-up quickly.
3. Adjust the air flow and temperature control keypad.
4. Refer to the instructions included with three kinds of nozzles (big,medium and small) replacement part.
5. Would replace the part if the resistance value is incorrect.
6. When the temperature is less than 70 degree, can stop rotation automatically.
7. Intelligent system that could alarm , Fault detection automatically.
8. YIHUA858D upgrade version SMD hot air rework station is ESD-protected.
9. High-quality resistance good for long service life
10. Shell using alloy material, elegant appearance.
11. Safe solder QFP, PLCC, BGA and other temperature-sensitive components.Also for Heating Shrink, Viscidity Removal, Lacquer Removal, Preheating.
12. Intelligent detection and cool airflow features.
13.The air gun handle use pro-environment  materials .


Digital Lead Free Mobile Phone Solder Stations , IC / PCB Rework Stations Techincal Data


Power consumption

650W

Gun temperature range

100-480oC

Gun type

Brushless FAN
Air flow:120L/MIN

Gun heater material

Ferro-Alloys

Gun heater resistance

74Ω



Model NO.

Inner box
Dimension(cm)

Outer box

Dimension(cm)

QTY

Product weight

YIHUA 858D

26*16.5*14.8

54*35*47.5

12pcs

1.75kg



Remark
Specifications and design subject to change without notice



Digital Lead Free Mobile Phone Solder Stations , IC / PCB Rework Stations Display



What's In The Box

* main unit + gun + power cord
* guide
* 3 nozzles(bayonet stainless steel nozzles)
 *1pcs IC  pick-up
*1pcs small spanner

These are 220V units, you may need a transformer to use the machine in your country. we also do accept special orders for 110V  / 230V/ 240V units
