Hot Air Bga LED Mobile Phone Rework Station With 3 Nozzles , Soldering Stations

Hot Air Bga LED Mobile Phone Rework Station With 3 Nozzles , Soldering Stations

  • Hot Air Bga LED Mobile Phone Rework Station With 3 Nozzles , Soldering Stations
  • Hot Air Bga LED Mobile Phone Rework Station With 3 Nozzles , Soldering Stations
Hot Air Bga LED Mobile Phone Rework Station With 3 Nozzles , Soldering Stations
Product Details:
Place of Origin: Guangzhou China
Brand Name: YIHUA
Certification: CE
Model Number: 898BD+
Inner box size: 27.2*16.7*14.6cm
Outer carton box size: 56*35.5*31.5cm
G.W.:: 24.8KG / CTN
Case color: Black / blue
Inner box size: 26*16.5*14.8cm
Q'TY: 8PCS / Outer carton
Outer carton size: 54*35*31cm
Goods weight: 3.1KG / PCS
Outer carton goods weight: 24.8KG / CTN
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 8PCS / CTN
Payment Terms: T/T / PAYPAL / WESTERN UNION
Contact Now
Detailed Product Description
High Light:

soldering rework station

,

smd rework station





Hot Air Bga LED Mobile Phone Rework Station With 3 Nozzles , Soldering Stations  Feature



YIHUA 898BD+ are improve from 878 and 898 series.

We using biger transformer to increase power supply

The soldering heater we using imported high-power heater improve the used life.

Those model can show high precision the temperature , good for our highest requirement.

Those model gun and soldering are using connector as the picture





Hot Air Bga LED Mobile Phone Rework Station With 3 Nozzles , Soldering Stations Main Function



1. Comfortable portable handheld and the Digital LED display.

2. Microcomputer control , warming-up quickly.

3. Adjust the air flow and temperature control rotation.

4. Refer to the instructions included with three kinds of stainless steel nozzles ( big , medium and small ) replacement part for Versatile Applications .

5. Would replace the part if the resistance value is incorrect.

6. When the temperature is less than 70C , can stop rotation automatically.

7. Intelligent system that could alarm , Fault detection automatically.

8. This product is ESD-protected.

9. High-quality resistance good for long service life

10. Shell using alloy material , elegant appearance.

11. Safe solder QFP , PLCC , BGA and other temperature-sensitive components.Also for Heating Shrink , Viscidity Removal , Lacquer Removal , Preheating , Glue Soldering and Ice-Out.

12. Intelligent detection and cool airflow features.

13. Green lines and high-quality silicone body heat good for extend life and save power.





Hot Air Bga LED Mobile Phone Rework Station With 3 Nozzles , Soldering Stations Technical Data



Power consumption

720W

Gun temperature range

100-450oC

 Soldering Iron Temperature range

200-450oC

Gun type

Brushless fan

Air flow 120L / MIN

 Soldering Iron type

Blue handle

Gun heater material

NIckel-Alloys

Soldering Iron heater material

imported high-power heater

Gun heater resistance

74Ω

Soldering Iron heater resistance

3.5~4.1Ω



Model NO.

Inner box

Dimension(cm)

Outer box

Dimension(cm)

QTY

Product weight

YH-898BD+

26*16.5*14.8

54*35*31

8pcs

3.1kg





Remark



Specifications and design subject to change without notice

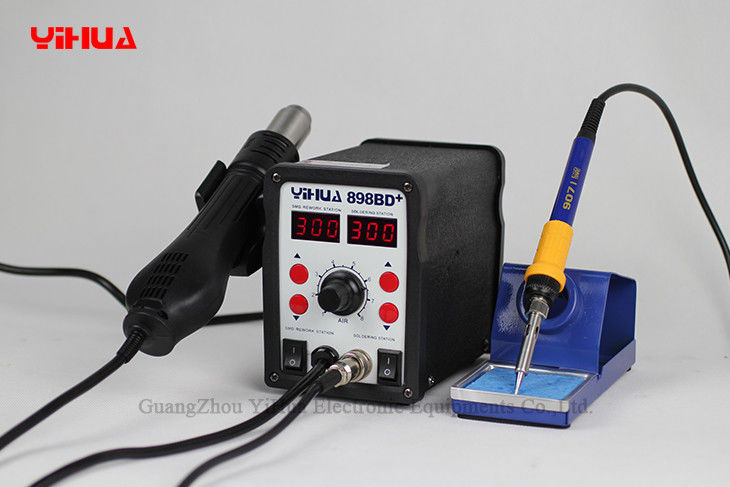

Hot Air Bga LED Mobile Phone Rework Station With 3 Nozzles , Soldering Stations Picture









What's In Hot Air Bga LED Mobile Phone Rework Station With 3 Nozzles , Soldering Stations Box

* main unit + gun + power cord
* guide
* soldering iron
* soldering iron holder
* 3 nozzles
*1pcs ICpick-up
*1pcs small spanner









These are 220V units you may need a transformer to use the machine in your country. we also do accept special orders for 110V  / 230V / 240V units.



And we have black appearance and blue appearance for your choice.
