Lead Free Cell Phone 2 In 1 Rework Station Of Diaphragm Pump 600W

Lead Free Cell Phone 2 In 1 Rework Station Of Diaphragm Pump 600W

  • Lead Free Cell Phone 2 In 1 Rework Station Of Diaphragm Pump 600W
  • Lead Free Cell Phone 2 In 1 Rework Station Of Diaphragm Pump 600W
  • Lead Free Cell Phone 2 In 1 Rework Station Of Diaphragm Pump 600W
  • Lead Free Cell Phone 2 In 1 Rework Station Of Diaphragm Pump 600W
  • Lead Free Cell Phone 2 In 1 Rework Station Of Diaphragm Pump 600W
  • Lead Free Cell Phone 2 In 1 Rework Station Of Diaphragm Pump 600W
Lead Free Cell Phone 2 In 1 Rework Station Of Diaphragm Pump 600W
Product Details:
Place of Origin: Guangzhou China
Brand Name: YIHUA
Certification: CE
Model Number: 852D+(diaphragm pump)
color: black
housing material: use NIckel-alloy material
gun type: diaphragm pump
inner box size: 32*27*19.8cm
outer carton box size: 58*35*63.5cm
Goods weight:: 4.4KG/PCS
G.W.:: 26.5KGS/CTN
color: black
housing material: use NIckel-alloy material
gun type: diaphragm pump
inner box size: 32*27*20.2cm
outer carton box size: 58*35*63.5cm
Goods weight:: 4.4KG / PCS
G.W.:: 26.5KGS / CTN
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 6PCS / CTN
Payment Terms: T/T PAYPAL WESTERN UNION
Contact Now
Detailed Product Description
High Light:

Lead free Solder Station

,

temperature controlled soldering station





Lead Free Cell Phone 2 In 1 Rework Station Of Diaphragm Pump 600W Function



1. SAMSUNG microcomputer control , warming-up quickly.

2. Adjust the air flow and temperature control rotation.

3. Refer to the instructions included with four kinds of nozzles ( big , medium , small and smaller ) replacement part.

4. Would replace the part if the resistance value is incorrect.

5. When the temperature is less than 70 degree , can stop rotation automatically.

6. Intelligent system that could alarm , Fault detection automatically

7. High-quality resistance good for long service life .

8. Safe solder QFP , PLCC , BGA and other temperature-sensitive components .

9. Intelligent detection and cool airflow features.

10. Green lines and high-quality silicone body heat good for extend life and save power .





Lead Free Cell Phone 2 In 1 Rework Station Of Diaphragm Pump 600W Technical Data



Power consumption

600W

Gun temperature range

100-450oC

 Soldering Iron Temperature range

200-450oC

Gun type

Diaphragm pump

Air flow 24-28L / MIN

 Soldering Iron type

Black handle

Gun heater material

Nickel-Alloys

Soldering Iron heater material

Common heater

Gun heater resistance

90Ω

Soldering Iron heater resistance

15Ω





*What difference for brushless fan and diaphragm pump ?



diaphragm pump the air are focus , airflow are 24 ~ 28L / min. brushless fan the air are soft , airflow are 120L / min.



Model NO.

Inner box

Dimension(cm)

Outer box

Dimension(cm)

QTY

Prduct weight

YIHUA 852D+(Diaphragm pump)

32*27*19.8

56*34*60

6PCS

4.27g





What's In Lead Free Cell Phone 2 In 1 Rework Station Of Diaphragm Pump 600W Inner Box


* main unit + gun + power cord
* guide

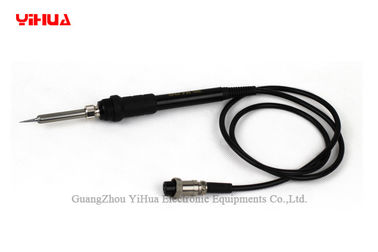

* soldering iron
* soldering iron holder
* 3 nozzles

*1pcs IC pick-up




Remark



Specifications and design subject to change without notice .

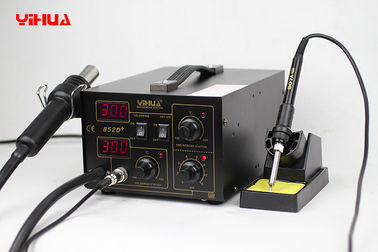

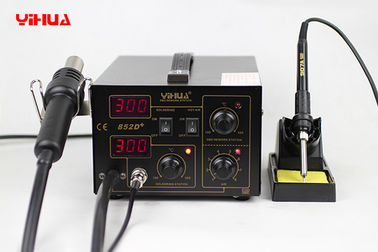

Lead Free Cell Phone 2 In 1 Rework Station Of Diaphragm Pump 600W Products Display







These are 220V units you may need a transformer to use the machine in your country. we also do accept special orders for 110V  / 230V / 240V units





Lead Free Cell Phone 2 In 1 Rework Station Of Diaphragm Pump 600W Our Warranty



*Credit Safeguard



GuangZhou YiHua Electronic Equipments Co,. Ltd  was signed a contract with Alibaba and  paid a large deposit , make buyers fee l comfortable buying



*Factory advantage



Factory D&R / production / sales / and sales service together.

Manufactory  sell directly,the goods are in plenty supply,delivery date fast,good compete price You could arrange to ship the goods by your self , or  ask we help you arrange to ship. If  we help you arrange to ship. Before quote the shipping freight , we need to know which model and quantity you are asking. We will according your detail address, order model and quantity to advise  you ship by sea  or , by air , or by Express. As usual , we are using HongKong DHL to ship the small order..



*Delivery date



As usual , 1~16pcs are 1~3 days will ship out . Made in time, fresh from the assembly line . Over 100~over 500pcs are 20days  will ship out. Over 1000pcs are 30days .If the material not enough or we have some customer  queue up our products before you , we will discuss with you the shipping date . If you want the delivery date faster than that day, please inquiry us , we will try to do it as your request.



*Warranty policy



One Years warranty

As usual , the shipping fee are high . if return China to repair are not worth the money . So we could support technology and give you the spare parts along with the product .

Note  warranty does not cover wearing parts , for example :iron heater , gun heater , iron tips.



*Products  discount



as usual we quote three price for each model sample price , over 60pcs price , over 500pcs price.

Those price are calculate our produce cost , as you know big order are less margin to sell . we hope take win-win business with both.



*Warm-heart  note



1. If products upgrade or quality improve to change the technique parameter , the factory will not further notice.

2.If the customer haven't special request , the product in accordance with factory's setting quality standards to produce.
