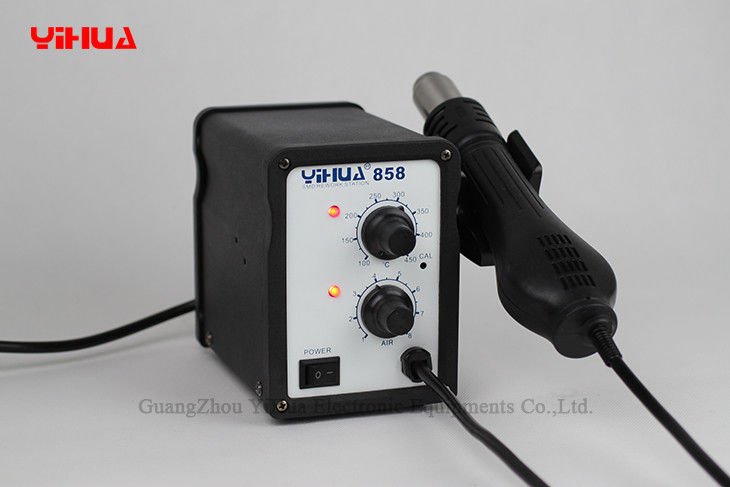

Lead Free SMD Hot-Air Soldering Station / Rework Stations Repairing Mobile Phone

Lead Free SMD Hot-Air Soldering Station / Rework Stations Repairing Mobile Phone

  • Lead Free SMD Hot-Air Soldering Station / Rework Stations Repairing Mobile Phone
  • Lead Free SMD Hot-Air Soldering Station / Rework Stations Repairing Mobile Phone
  • Lead Free SMD Hot-Air Soldering Station / Rework Stations Repairing Mobile Phone
  • Lead Free SMD Hot-Air Soldering Station / Rework Stations Repairing Mobile Phone
Lead Free SMD Hot-Air Soldering Station / Rework Stations Repairing Mobile Phone
Product Details:
Place of Origin: Guangzhou China
Brand Name: YIHUA
Certification: CE
Model Number: 858
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 12PCS / CTN
Payment Terms: T/T / PAYPAL / WESTERN UNION
Contact Now
Detailed Product Description
High Light:

Lead free Solder Station

,

temperature controlled soldering station



Lead Free SMD Hot-Air Soldering Station / Rework Stations Repairing Mobile Phone Main Function

1. Comfortable portable handheld.
2. Microcomputer control , warming-up quickly.
3. Adjust the air flow and temperature control keypad.
4. Refer to the instructions included with three kinds of nozzles ( big , medium and small ) replacement part.
5. Would replace the part if the resistance value is incorrect.
6. When the temperature is less than 70 °c , can stop rotation automatically.
7. Intelligent system that could alarm , Fault detection automatically.
8. This product is ESD-protected.
9. High-quality resistance good for long service life
10. Shell using alloy material , elegant appearance.
11. Safe solder QFP , PLCC , BGA and other temperature-sensitive components.
12. Intelligent detection and cool airflow features.


Lead Free SMD Hot-Air Soldering Station / Rework Stations Repairing Mobile PhoneTechnical Data


Power consumption

650W

Gun temperature range

100-480oC

Gun type

Brushless FAN
Air flow 120L / MIN

Gun heater material

Ferro-Alloys

Gun heater resistance

74Ω



Model NO.

Inner box
Dimension (cm)

Outer box

Dimension (cm)

QTY

Product weight

YIHUA 858

26*16.5*14.8

54*34*47.5

12pcs

1.72kg



Remark

Specifications and design subject to change without notice






What's In The Box

* main unit + gun + power cord
* guide
* 3 nozzles
*1pcs IC pick-up
*1pcs small spanner

These are 220V units, you may need a transformer to use the machine in your country. we also do accept special orders for 110V  / 230V / 240V units
