Temperature control Mobile Phone Rework Station

Temperature control Mobile Phone Rework Station

  • Temperature control Mobile Phone Rework Station
  • Temperature control Mobile Phone Rework Station
Temperature control Mobile Phone Rework Station
Product Details:
Place of Origin: GUANGZHOU,CHINA
Brand Name: YIHUA
Certification: CE
Model Number: 852D++
inner box size: 31.5*22*22cm
outer carton size: 43.8*32*66.5cm
G.W.: 18.5KG/CTN
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: 1 pcs per inner color box,6pcs per outer carton box
Payment Terms: T/T,PAYPAL,WESTERN UNION
Contact Now
Detailed Product Description
High Light:

soldering desoldering station

,

smd rework station

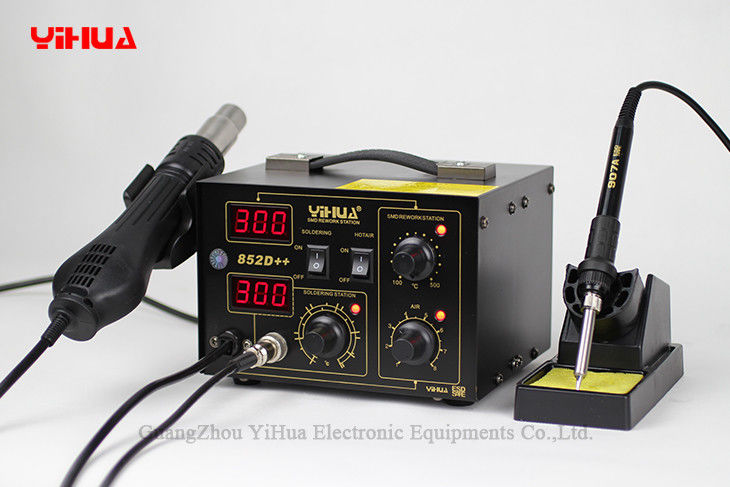

YIHUA 852D++ Mobile Phone rework station





Product Description



 MAIN FUNCTION



1. SAMSUNG microcomputer control,warming-up quickly.

2. Adjust the air flow and temperature control rotation.

3. Refer to the instructions included with three kinds of nozzles (big,medium and small) replacement part.

4. Would replace the part if the resistance value is incorrect.

5. When the temperature is less than 70 degree, can stop rotation automatically.

6. Intelligent system that could alarm, Fault detection automatically

7. High-quality resistance good for long service life

8. Safe solder QFP, PLCC, BGA and other temperature-sensitive components.

9. Intelligent detection and cool airflow features.

10. Green lines and high-quality silicone body heat good for extend life and save power.

11. Small housing make most area saving.

12. Add main switch of power supply to protect the whole machine.





Technical data:



Model: YIHUA 852D++

Power consumption:700W

Measurement:124*187*249cm

Working environment:0~50°C

Storage environment:-20-80°C



Hot Air Reworks

Airflow type: brushless fan gentle wind

Airflow:≤120L/min

Temperature range:100°C-450°C

Temperature Stability:  ±1°C

Display Type: LED Digital display

Handle length:≥100CM



Soldering Iron

Temperature range:200°C-450°C

Temperature Stability:±1°C

Tip of ground voltage:<2mV

Tip ground impedance:<2 ohm

Display Type: LED Digital display

Handle length:≥100CM

Iron heater material: Common heater

Outer Q’TY:6PCS /CTN

Inner box size:31.5*22*22cm

Outer carton:43.8*32*66.5cm

G.W.:18.5KG/CTN



Remark: Specifications and design subject to change without notice.





Packaging & Shipping




What's in the box :
* main unit + gun + power cord
* guide
* soldering iron
* soldering iron holder
* 3 nozzles


These are 220V units, you may need a transformer to use the machine in your country. we also do accept special orders for 110V  / 230V/ 240V units.
