Guangzhou EPT Environmental Protection Technology Co.,Ltd
High quality, Best service,Reasonable price.
|Place of Origin:||Guangzhou China|
|Minimum Order Quantity:||1 PCS|
|Packaging Details:||6PCS / CTN|
|Payment Terms:||T/T / PAYPAL / WESTERN UNION|
Lead free Solder Station,
cell phone soldering station
Temperature Controlled SMD Hot Air Rework Station Lead Free Machine , Yihua 850b Main Function
1. Microcomputer control , warming-up quickly.
2. Adjust the air flow and temperature control keypad.
3. Refer to the instructions included with three kinds of nozzles ( big , medium and small ) replacement part.
4. Would replace the part if the resistance value is incorrect.
5. When the temperature is less than 70 C degree, can stop rotation automatically.
6. Intelligent system that could alarm , Fault detection automatically.
7. High-quality resistance good for long service life
8. Shell using alloy material , elegant appearance.
10. Safe solder QFP , PLCC , BGA and other temperature-sensitive components.
11. Intelligent detection and cool airflow features.
Temperature Controlled SMD Hot Air Rework Station Lead Free Machine , Yihua 850b Technical Data
Power consumption 650W
Gun temperature 100-480oC
Gun type Brushless fan
Air flow 120L / MIN
Gun heater material Ferro-alloys
Gun heater resistance 74Ω
Inner box dimension (cm) 32*27*19.8
Outer box dimension (cm) 56*34*60
Outer carton box Q'TY 6PCS / CTN
Product weight 2.85KG / PCS

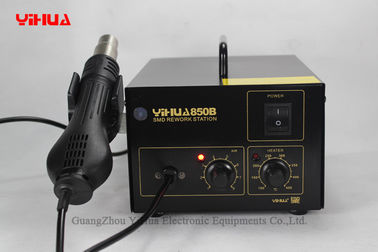

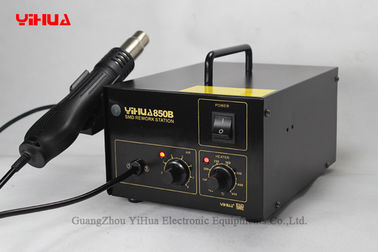

Temperature Controlled SMD Hot Air Rework Station Lead Free Machine , Yihua 850b Display
What Difference For Brushless Fan And Diaphragm Pump?
diaphragm pump the air are focus , airflow are 24~28L / min. brushess fan the air are soft , airflow are 120L / min.
Specifications and design subject to change without notice
What's In The Box
* main unit + gun + power cord
* 3 nozzles
These are 220V units you may need a transformer to use the machine in your country. we also do accept special orders for 110V / 230V / 240V units
