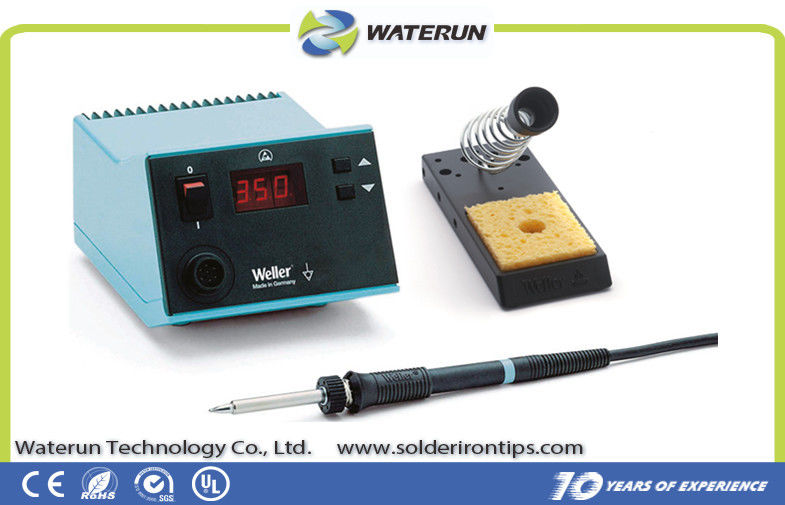

Weller WSD 81 Digital Soldering Station With Silver Line Technology Soldering Iron
Applications:
Soldering station for manufacture and repair. commonly used in electronic welding technology of hand tools, through the solder (usually refers to the tin wire) heating, melting, making two workpiece welded together.
Features:
Weller WSD 81 solderiing station set : Soldering station digital 80 W, 230 V, with WSP 80, Silver Line Technology 80W, 24 V.
The advantage is the soldering iron, Silver Line Technology WSP 80 Soldering Iron,Approved heating technology with effective heat transfer. For all purpose industrial applications. A wide range of soldering tips are available.
Quick Detail:
- Brand Name: Weller
- Model Number: WSD 81
- Application: Soldering, Welding
- Standard Soldering Tip: LTB
- Usage: Welding, Soldering
Description:
- WSD 81 Power unit, 1 channel
- WSP 80 Silver Line Heating Technology
- LT B Soldering Tip
- KH 18 Safety Rest for WSP 80 soldering iron.
Specifications:
| Station ESD safe |
Yes |
| Dimension L x W x H: |
166 x 115 x 101 mm |
| Channels: |
1 |
| Power supply: |
230 V |
| Power consumption: |
80 W |
| Protection class: |
I |
| Temperature range: |
50°C - 450°C |
| Temperature accuracy: |
± 9°C |
| Temperature stability: |
± 5°C |
| Display: |
LED |
| Setting: |
Buttons |
| ESD safe: |
Yes |
| Equipotential bonding: |
Via 3,5 mm pawl socket on back of device (normal state hard grounded) |
| USB interface: |
No |
Standard Soldering iron WSP 80 :
Advantage: Silver line Heating Technology
| Technical data |
| Voltage (heater): |
24 V |
| Heating output: |
80 W |
| Heat-up time: |
approx 10 s 50°C - 350°C (120°F - 660°F) |
| Temperature range: |
50°C - 450°C (120°F - 840°F) |
| Tip type: |
LT series |
| Connectable to: |
all power units from 80 W |
- Effective heat transfer
- Wide soldering tip range
- Universal use
Standard Soldering Tip: LTB Soldering Tip
About LTB:
LT B Soldering Tip chisel 2,4 mm, single packed
Width A: 2,4 mm
Thickness B: 0,8 mm
max. length: 13,5 mm
| Weller LT B Soldering Tip Technichal Data |
| Width: |
2,4 mm |
| Thickness: |
0,8 mm |
| Max. length: |
13,5 mm |
| Related solder irons: |
WP 80, WSP 80, MPR 80, FE 75, TCP soldering irons, |
| LR 21, MLR 21 with adapter |
| Tip form: |
Chisel tip |
KH 18 Safety Rest for WSP 80 soldering iron.

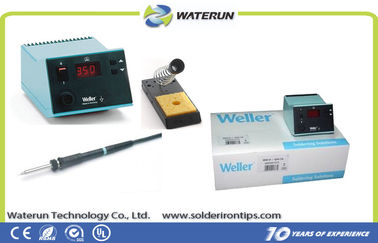

Packing detail show:
