ZH-220 pcb wave soldering machine/ small wave solder

ZH-220 pcb wave soldering machine/ small wave solder

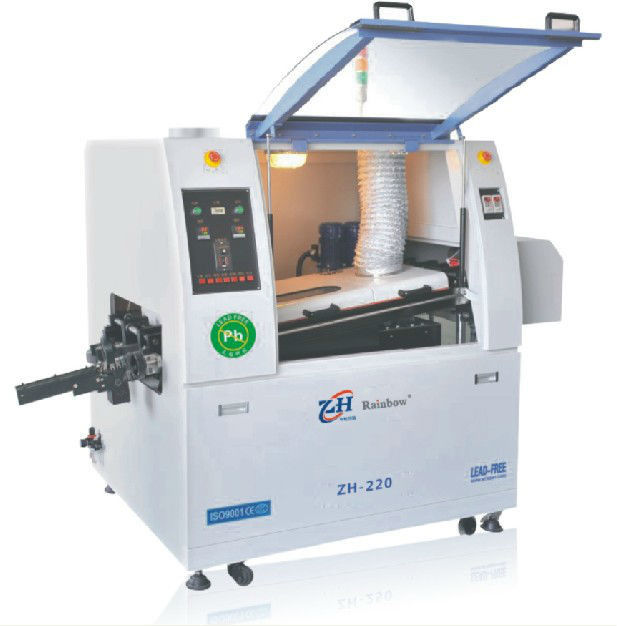

  • ZH-220 pcb wave soldering machine/ small wave solder
ZH-220 pcb wave soldering machine/ small wave solder
Product Details:
Place of Origin: China
Brand Name: ZH Rainbow
Certification: CE
Model Number: ZH-220
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: polybag first, then wooden case
Delivery Time: 10 days after deposit
Payment Terms: EXW
Supply Ability: 30 piece per month
Contact Now
Detailed Product Description
High Light:

wave soldering machine

,

wave soldering equipment

,

mini wave soldering machine

ZH-220 pcb wave soldering machine/ small wave solder

Specifications

Model

ZH-220 Dual Wave**

Solder Capacity*

180-200kg

Dual Pot Capable

Yes - Option

Pb Free Capable

Yes

PreHeat Type/Length

Convection/600mm

System Control

Touch Screen Control

Fluxer

Spray Fluxer

Conveyor

Titanium V-Shaped Finger

Finger Cleaner

Yes

Max. Board Width

220mm

Fume Extraction

Extractor Hood and Filter

Overall Dimensions

1400(L)mm×1150(W)mm ×1650(H)mm (65" L x 45.2" W x 65" H)

Machine Weight

360kg (794 lbs)

Power/Frequency

3Φ220V/60Hz

Total Power

12kw

Air Pressure

4kfg/cm2

Rosin Atomization Device

Rodless cylinder

Conveying Rate

0.5~1.8M/min

Solder Wave Width

210mm

Length of Soldered Pin

Max 20mm

Solder Temperature

Room Temperature~300°C

Exhaust Fan

400W 1Φ220V

Solder Furnace Motor

180W*2

Drive Motor

40W 1Φ220V

Heating Pipe of Preheater

1.5kw*6

Length of Preheater

600mm

Pawl Cleaning Pump

12W

Forced Cooling Fan

45W

Output

1500Pcs /8H

Specifications

Model

ZH-220 Dual Wave**

Solder Capacity*

180-200kg

Dual Pot Capable

Yes - Option

Pb Free Capable

Yes

PreHeat Type/Length

Convection/600mm

System Control

Touch Screen Control

Fluxer

Spray Fluxer

Conveyor

Titanium V-Shaped Finger

Finger Cleaner

Yes

Max. Board Width

220mm

Fume Extraction

Extractor Hood and Filter

Overall Dimensions

1400(L)mm×1150(W)mm ×1650(H)mm (65" L x 45.2" W x 65" H)

Machine Weight

360kg (794 lbs)

Power/Frequency

3Φ220V/60Hz

Total Power

12kw

Air Pressure

4kfg/cm2

Rosin Atomization Device

Rodless cylinder

Conveying Rate

0.5~1.8M/min

Solder Wave Width

210mm

Length of Soldered Pin

Max 20mm

Solder Temperature

Room Temperature~300°C

Exhaust Fan

400W 1Φ220V

Solder Furnace Motor

180W*2

Drive Motor

40W 1Φ220V

Heating Pipe of Preheater

1.5kw*6

Length of Preheater

600mm

Pawl Cleaning Pump

12W

Forced Cooling Fan

45W

Output

1500Pcs /8H

Product Features:

1. The circulararc appearance, streamline design.

2. Into the board straight association-like into the board device, stainless steel chain transmission, ensure smooth PCB into the machines.

3. Spray system USES JingMiXing digital display adjustment, nozzle mobile adopting step-motor drive, spray speed adopts digital control; auto-proportioned flux stable supply, can make the spraying flow rapidly maturing, spray the width of the change of the PCB with automatic spray to follow up, the more effective way to prevent the spray enough or spray excessive.

4. Convulsions system, adopting fluctuation convulsions. Three layer screen pack. Large three more 3 phase 750 W exhaust fan, make the spray redundant residue can completely discharge the body. In order to achieve a higher environmental process,

5. Super length 2.0 meters 3 period of infrared preheating and a shoot the light thermal compensation, four section temperature area can be separately well control temperature, better meet the requirement of free-plumburm process.

6. Tin stove made by casting copper WaiReShi heating, lead-free characteristics material makes, two peaks close design, completely lead-free, temperature PID control temperature way, temperature control accuracy±2°C, between two wave off 5°Cmaximum temperature.

7. Forced cooling system, fluctuation and cooling, using the cold windtwist-action hair drier design, the cold wind mouth temperature can achieve 5°C, ensure the PCB board each original device get related cooling effect.

8. Transportation system, the wear-resisting aluminium, unique double claw design, guide with central flexible middle support structure, the more effective to prevent deformation caused by heating guide transmission used a stepless frequency converter drive to import SMT motor, the more effective and more accurate control transportation precision.

9. Using special industrial computer, LCD monitor, with all the signals are through the shield processing, make the whole control system more stable and reliable, and Windows XP in both Chinese and English window, with flexible curve and powerful dynamic test curve analysis, and can also to all data record and print preservation.
