hot air 2 In 1 Soldering Station

hot air 2 In 1 Soldering Station

    • hot air 2 In 1 Soldering Station
    • hot air 2 In 1 Soldering Station
    • hot air 2 In 1 Soldering Station
    • hot air 2 In 1 Soldering Station
    • hot air 2 In 1 Soldering Station
    • hot air 2 In 1 Soldering Station
  • hot air 2 In 1 Soldering Station

    Product Details:

    Place of Origin: GUANGZHOU,CHINA
    Brand Name: YIHUA
    Certification: CE
    Model Number: 852 Brushless fan
    inner box size: 33*27*20.2cm
    outer carton size: 58*35*63.5cm
    goods weight: 3.5kg/pcs
    G.W.: 21KG/CTN

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Packaging Details: 1 pcs per inner box,6pcs per outer carton box
    Payment Terms: T/T, PAYPAL ,WESTERN UNION
    Contact Now
    Detailed Product Description

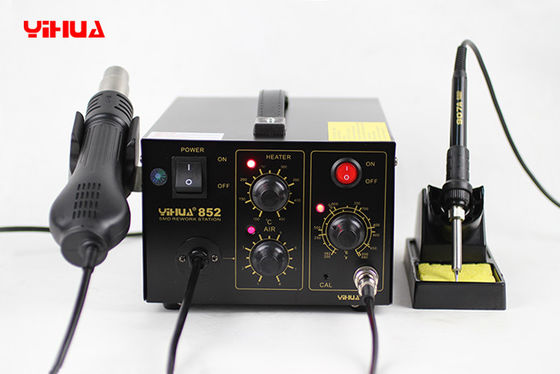

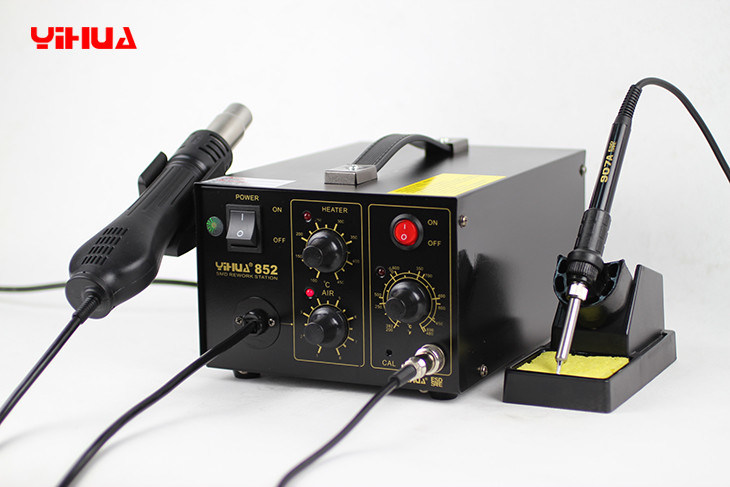

    2 in 1 soldering station YIHUA 852 (Brushless Fan) hot air soldering gun





    Product Description



      *MAIN FUNCTION

    1. SAMSUNG microcomputer control,warming-up quickly.

    2. Adjust the air flow and temperature control rotation.

    3. Refer to the instructions included with three kinds of nozzles (big,medium and small) replacement part.

    4. Would replace the part if the resistance value is incorrect.

    5. When the temperature is less than 70 degree, can stop rotation automatically.

    6. Intelligent system that could alarm , Fault detection automatically.

    7. This product is ESD-protected.

    8. High-quality resistance good for long service life

    9. Safe solder QFP, PLCC, BGA and other temperature-sensitive components.



    Technical data:





    Power consumption

    700W

    Gun temperature range

    100-450oC

     Soldering Iron Temperature range

    200-480oC

    Gun type

    Brushless fan

    Air flow:120L/MIN

     Soldering Iron type

    Black handle

    Gun heater material

    Ferro-Alloys

    Soldering Iron heater material

    Common heater

    Gun heater resistance

    74Ω

    Soldering Iron heater resistance

    15Ω



    *What's the  difference between brushless fan and diaphragm pump?
    diaphragm pump the air are focus , airflow are 24~28L/min. brushless fan the air are soft ,airflow are 120L/min.





    Model NO.

    Inner box

    Dimension(cm)

    Outer box

    Dimension(cm)

    QTY

    Product weight

    YIHUA 852

    32*27*19.8

    56*34*60

    6PCS

    3.5KG



    *Specifications and design subject to change without notice.


    Packaging & Shipping




    What's in the box:

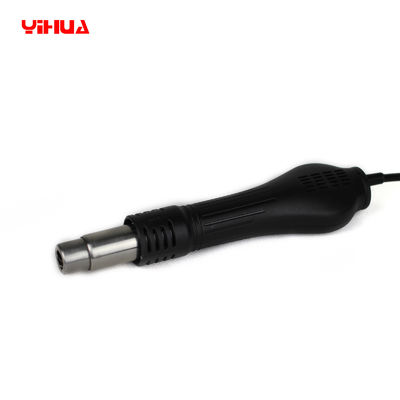

    * main unit + gun + power cord
    * guide

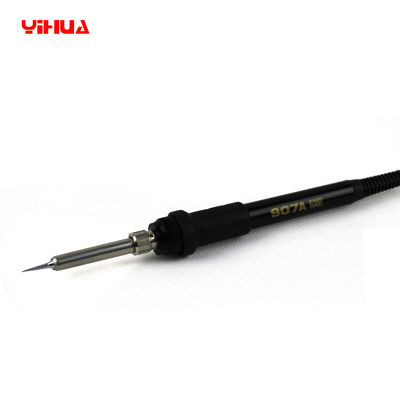

    * soldering iron

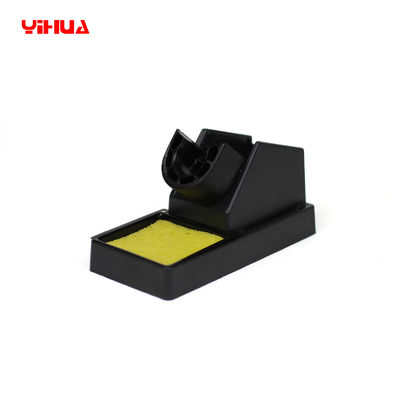

    * soldering iron holder

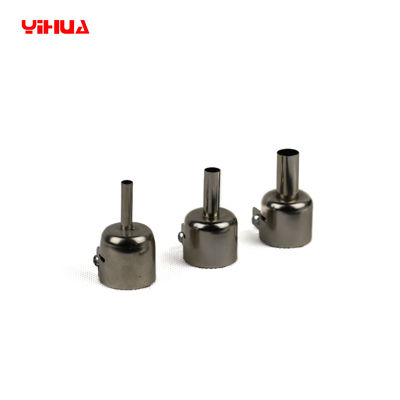

    * 3 nozzles

    *1pcs IC pick-up


    These are 220V units, you may need a transformer to use the machine in your country. we also do accept special orders for 110V  / 230V/ 240V units



    Our Services

    Our warranty

    *Credit Safeguard

    GuangZhou YiHua Electronic Equipments Co,. Ltd  was signed a contract with Alibaba and  paid a large deposit, make buyers fee l comfortable buying

    *Factory advantage

    Factory D&R / production/ sales/ and sales service together.

    Manufactory  sell directly,the goods are in plenty supply,delivery date fast,good compete price You could arrange to ship the goods by your self , or  ask we help you arrange to ship. If  we help you arrange to ship. Before quote the shipping freight, we need to know which model and quantity you are asking. We will according your detail address, order model and quantity to advise  you ship by sea  or, by air ,or by Express. As usual, we are using HongKong DHL to ship the small order..

    *Delivery date

    As usual, 1~16pcs are 1~3 days will ship out . Made in time, fresh from the assembly line.

    Over 100~over500pcs are 20days  will ship out. Over 1000pcs are 30days .

    If the material not enough or we have some customer  queue up our products before you,

    we will discuss with you the shipping date. If you want the delivery date faster than that day, please inquiry us, we will try to do it as your request.

    *Warranty policy

    One Years warranty

    As usual, the shipping fee are high. if return China to repair are not worth the money. So we could support technology and give you the spare parts along with the product .

    Note: warranty does not cover wearing parts:, for example :iron heater, gun heater ,iron tips.

    *Products  discount

    as usual we quote three price for each model :sample price, over 60pcs price, over 500pcs price.

    Those price are calculate our produce cost, as you know big order are less margin to sell. we hope take win-win business with both.

    *Warm-heart  note

    1.If products upgrade or quality improve to change the technique parameter, the factory will not further notice.

    2.If the customer haven't special request, the product in accordance with factory's setting quality standards to produce.
