YIHUA-8508D Laptop Repair QFP , PLCC , BGA Welding Device

YIHUA-8508D Laptop Repair QFP , PLCC , BGA Welding Device

    • YIHUA-8508D Laptop Repair QFP , PLCC , BGA Welding Device
    • YIHUA-8508D Laptop Repair QFP , PLCC , BGA Welding Device
    • YIHUA-8508D Laptop Repair QFP , PLCC , BGA Welding Device
  • YIHUA-8508D Laptop Repair QFP , PLCC , BGA Welding Device

    Product Details:

    Place of Origin: Guangzhou China
    Brand Name: YIHUA
    Certification: CE
    Model Number: 8508D

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PCS
    Packaging Details: 6PCS / CTN
    Payment Terms: T/T / PAYPAL / WESTERN UNION
    Power consumption: 700W
    GunTemperature range: 100-480°C
    Contact Now
    Detailed Product Description

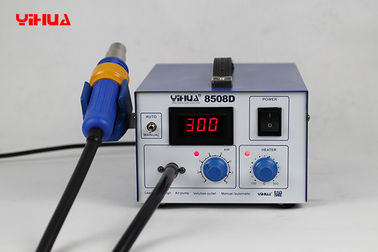

    YIHUA-8508D Laptop Repair QFP, PLCC, BGA Welding Device



    Are add new feature for manual and auto transform

    Put the key to AUTO When you put the gun on the holder over 2 minute , that the gun will enter into standby mode.

    Put the key to MANUAL When you put the gun on the holder , that the gun still work along





    Technical Data



    Power consumption 700W
    GunTemperature range 100-480°C

    Gun heater material Nickel-alloys

    Gun heater resistance 90Ω

    Gun type Diaphragm pump
    Air flow 28L / min
    Inner box Dimension(cm) 32*27*19.8
    Outer box Dimension(cm) 56*34*60
    QTY 6pcs / carton
    Goods weight 3.6kg / pcs
    g.w. 21.6kg / outer





    Main Function



    1. SAMSUNG microcomputer control,warming-up quickly.

    2. Safe solder QFP, PLCC, BGA and other temperature-sensitive components.

    3. Adjust the air flow and temperature control rotation.

    4. Would replace the part if the resistance value is incorrect.

    5. When the temperature is less than 80oC , can stop rotation automatically.

    6. Intelligent detection and cool airflow features.

    7. Silicone line, longevity and safety.

    8. Comfortable portable handheld and the Digital LED display.

    9. Refer to the instructions included with three kinds of nozzles ( big , medium and small) replacement part.





    What difference for brushless fan and diaphragm pump?

    diaphragm pump the air are focus , airflow are 24~28L / min. brushless fan the air are soft , airflow are 120L/min.




    Remark



    Specifications and design subject to change without notice









    What's In The Box

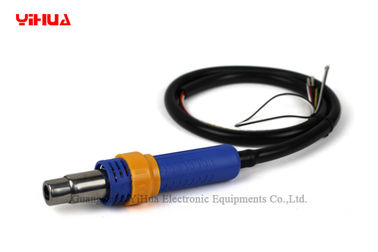

    * main unit + gun + power cord

    * guide

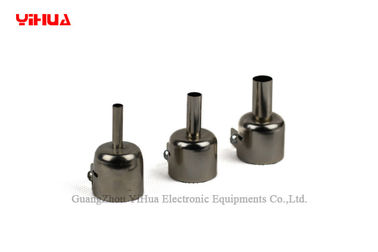

    * 3 nozzles





    These are 220V units you may need a transformer to use the machine in your country. we also do accept special orders for 110V  / 230V / 240V units
