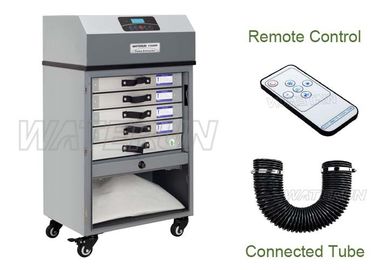

Professional Chemical Fume Extractor with Anti-corrosion Function

Professional Chemical Fume Extractor with Anti-corrosion Function

  • Professional Chemical Fume Extractor with Anti-corrosion Function
Professional Chemical Fume Extractor with Anti-corrosion Function
Product Details:
Place of Origin: China
Brand Name: Waterun
Certification: CE/ROHS/SGS
Model Number: F3000D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: 55x45x90cm/set, 31kgs
Delivery Time: about 7-10 days after received your payment
Payment Terms: T/T, western Union or Paypal
Supply Ability: 1,000pcs per month
Contact Now
Detailed Product Description
Item: Chemical Fume Extractor Application: Chemical Field
Filter: Active Carbon,glass Fiber And PP Power: 330W
Furifying: 0.3um99.97% Length Of Duct: 1.4M
Systemic Flow: 400m3/h Nosie: <70dB
High Light:

chemical fume hood

,

dust extraction equipment



Professional Chemical Fume Extractor with Anti-corrosion Function



Specifications:



Model Number:

F3000D

Input Power

330W

Voltage/Power:

AC110-220V

Systemic Flow:

400m3/h

Filtering Efficiency:

0.3micron 99.97%

Length of Duct:

Dia.90mm x1.4m

Noise:

Less than 70db

Dimensions(mm)

420 x 320 x 785

Net weight

31kgs





Description:



​The fume extractor are widely used in the following fields: electronics manufacturing, solder, immersion tin, SMT wave stove, oven; Laser welding operations, cutting, printing, engraving, marking; welding, TIG welding, plasma cutting, metal polishing turning; LED manufacturing, automobile manufacturing, furniture manufacturing, electroplating, jewelry manufacturing, printing and other fields..





Features:



1. Our F3000D fume extractor is specially designed for industrial welding fume and light weight particles, can be widely applied to many places that produce dust and oil fume and industries such as electronic wave soldering, metal processing, laser cutting, etc. It is very light and flexible. With a two-meter-long movable flexible pipe, it can be moved to different locations.

2. Pollution source can be treated by movable single machine or be treated in multi-station concentrated handling mode.

3. Low altitude emission of the processed air guaranteed.

4. This kind of machine has incomparable disposal efficiency: at rated air volume, the welding fume elimination efficiency is above 99.97%, thus can discharge directly in the workshop.

5. Safe and stable: the Mobile Exhaust Gas Extractor has automatic detection and malfunction diagnosis function.

6. With Alfa movable arm that the Mobile Exhaust Gas Extractor can be stopped in any position of the three -dimensional space, the workers can work more efficiently.

7. The machine is easy to operate and maintain: when maintaining, what needed to be done is just to open the assess door and take out the electric field to soak and wash.



Applications:



Our line of floor, bench top, mounted and portable units serve a variety of applications including welding, soldering, manufacturing, laboratory and pharmaceutical operations. Waterun Technology Co.,Ltd manufacturing a variety of high quality air purification systems for filter the harmful substances. Don’t despair if you don’t see your application listed below. Our modular product line can be configured in a number of different ways to address your specific requirements.Contact us today to find out the solutions!



1.

 soldering fume extractor

2.

 laser cutting, laser engraving and marking

3.

 electronics Manufacturing

4.

 welding, laser welding

5.

 medical, moxibustion, moxa-moxibustion

6.

 beauty fume extraction

7.

 Pharmaceutical and laboratories, chemical

8.

 3D printing

9.

 dust collector





Competitive Advantage:



1. The products from abroad mainly purify the viruses and bacteria as the main direction of governance. In China not only to purify viruses, bacteria, but also clean harmful smoke pollution. WHO estimates that there are over 200 million people deaths each year due to inhalation of indoor and outdoor air pollution in small particles.

2. Self-developed impeller, better quality than ordinary plastic impeller, more stable, more powerful suction. The unique tiered filter design, can effectively purify the toxic and harmful substances in the air, such as formaldehyde, benzene, ammonia, radon gas, sulfur dioxide..etc, and use of low cost.

3. Our company uses a brushless motor, compare with the ordinary motor, this motor speed is higher, lower noise, it does not require maintenance, but longer product life span.

4. Compared with the products from foreign countries, our products in terms of the effect is almost the same, but the majority of our products are less than USD2000, so our products are cost-effective, and the use of more affordable cost.







FQAs:

1. What’s the functions for the filters?
Answers.1) Pre-Filter/F8 pre-filter: the large-size pad filter can filter large particles of dust (according the requirement to select pre-filter or F8)
2) PP Middle Filter/Fiber glass filter: it filters the middle-size, small size particles bigger powders for prolonging the main filter's life. (according the requirement to select PP middle filter or fiber glass filter,can use both, the efficiency better.)
3) Main Filter/Active carbon: it cleans harmful particles and fumes.
4) High efficiency filter(combine middle filter and active carbon filter): it can filter about 0.3micron particles and other harmful fumes.

2. What’s the life span of our fume extractor?
Answer:Motor lifetime is (continuous working 24 hours) 20,000 hours, consider environmental factors. Usually it can use 4-5 years without any problems.



3. How long need to to replace the pre-filter, middle filter and the main filter?
Answer:1. Pre-filter : normally needs to replace by 1 months
        2. Middle filter: normally needs to replace by 3 months
        3. Main filter: normally needs to replace by 6 months.

4. What’s the best distance between the nozzle and the smokes?
Answer:The distance to be 5-15cm is the best.

5. Can our fume extractor completely filtered poison gas?
Answer:No, there still no any kind of filter can filter out 100% of poison gas, but you can make a different filter net rate upon request.


6. What’s the advantage compare with ducted exhaust fan?
Answer:1. Many advantages like (1) Clean the air quality (2) energy saving (3) easy installation, flexible remove (4) low cost (5) reduce the incidence of diseases and major diseases, and health is priceless (6) to reduce unpleasant  smell (7) to reduce dust and other harmful substances, and so on.

7. Bent pipe will affect smoke purify?
Answer:Yes, it affect the suction power, it should reduce the bent rate.

8. The ducts for the fume extractor can be shortened or lengthened?
Answer:It can be shortened or lengthened appropriate; but we suggest not more than 1.5meter. For multi-station, the total pipe length should not exceed 10 meters.
