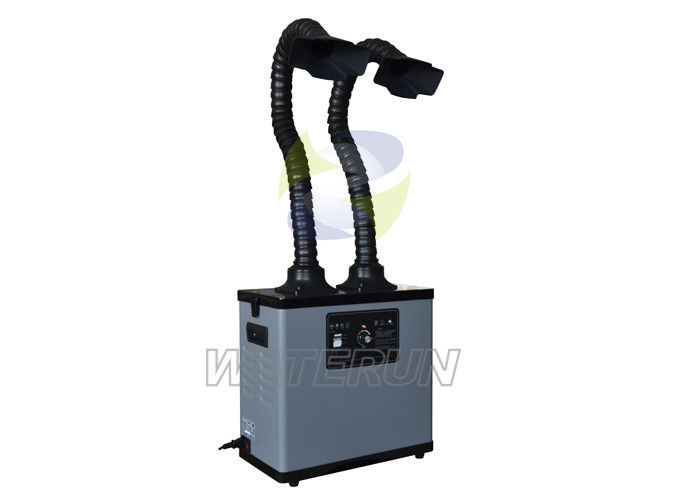

Portable Laser Cutting Industrial Fume Extractor System with Two Fume Extraction Arm 75mm

Portable Laser Cutting Industrial Fume Extractor System with Two Fume Extraction Arm 75mm

Portable Laser Cutting Industrial Fume Extractor System with Two Fume Extraction Arm 75mm

Product Details:

Place of Origin: China
Brand Name: Waterun
Certification: CE/ROHS/SGS
Model Number: F6002

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: 54x35x54cm/set, 13Kgs
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, western Union or Paypal
Supply Ability: 1,000pcs per month
Contact Now
Detailed Product Description
Type: Industrial Fume Extractor Dimension: 420x245x400mm
Voltage: AC110V/220V Noise: Less Than 60 DB
Duct Diameter: Dia.75mm X 1.4m X 2 Advantage: Digital Displlay
Systemic Flow: 2*150m3/h Ducts: 2 Pcs



Industrial Fume Extractor System with Two Fume Extractor Arm 75mm



Specifications:



Model Number:

F6002

Filters Quantity:

Pre-filter 1 pc,middle filter 1 pc and main fliter 1 pc

Voltage/Power:

110-220V, 200W

Systemic Flow:

2X150m3/h

Absorbing Efficiency:

 99.97%

Length of pipe:

1.4m*2

Noise:

Less than 60db

Dimensions(mm)

425x245x400

Net weight

13kgs





Description:





1.The fume extractor has eally effective intelligent “filter element blockage alarm” function gives an acousto-optic alarm immediately upon filter element blockage.


2.The fume extractor has excellent purify effect with four-stage purification design: filtering step by step enables harmful smoke to be better purified. Even for objects at least 8 times smaller than PM2.5, the purification rate can reach up to 99.97%.


3. The solder fume extractor is corrosion-resistant, environment-friendly and durable, with replaceable independent filters which can reduce the production cost.



4. The fume extractor is equipped with remote control, the operator can control the machine from a distance.


5. The fume extractor has a triple-filter system design.
1) Pre-Filter: the large-size pad filter can filter large particles of dust
2) Middle Filter: it filters the bigger powders for prolonging the main filter's life.
3) Main Filter: it includes HEPA (high efficiency) filter and gas filter. The HEPA cleans the gas and powders filtering from the pre-filter and then carry them to the gas filter. which with the carbon and other chemical combination, filters off the deleterious substance and then outputs the clean air.


6. We have been selling a good quantity of our solder fume extractors to Germany, Israel, UK and a few other European countries. And we got quite good and positive feedback from them on the quality and performance of our products.


7. We make really effective fume extractors only which are widely used in the process of soldering, laser marking & carving, printing, etc.







Features:




  1. Integrative structure design,easy installation,agile movement,no need to lay any pipelines.
  2. Low noise.
  3. Large-power brushless DC fan generates large air flow.
  4. Triple filter design,remove hazardous substances from fume to ensure body safety.
    Prefilter and main filter can be replaced separately to make full use of filters and cut
    down cost.
  5. Built-in air cycling filtering system,avoid discharging the cool/hot air outside.
  6. Both air flow and arms are adjustable.





Competitive Advantage:



1. Our company uses a brushless motor, compare with the ordinary motor, this motor speed is higher, lower noise, it does not require maintenance, but longer product life span.



2. The products from abroad mainly purify the viruses and bacteria as the main direction of governance. In China not only to purify viruses, bacteria, but also clean harmful smoke pollution. WHO estimates that there are over 200 million people deaths each year due to inhalation of indoor and outdoor air pollution in small particles.

ucts and workers.



3. Compared with the products from foreign countries, our products in terms of the effect is almost the same, but the majority of our products are less than USD2000, so our products are cost-effective, and the use of more affordable cost.



4. Self-developed impeller, better quality than ordinary plastic impeller, more stable, more powerful suction. The unique tiered filter design, can effectively purify the toxic and harmful substances in the air, such as formaldehyde, benzene, ammonia, radon gas, sulfur dioxide..etc, and use of low cost.
