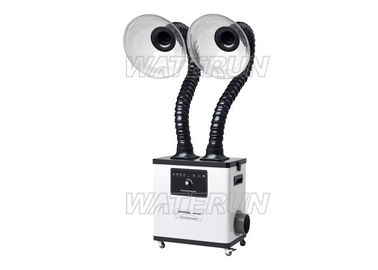

High Power 200W Medical Fume Extractor , Carbon Filter Extractor with Ducts

High Power 200W Medical Fume Extractor , Carbon Filter Extractor with Ducts

  • High Power 200W Medical Fume Extractor , Carbon Filter Extractor with Ducts
High Power 200W Medical Fume Extractor , Carbon Filter Extractor with Ducts
Product Details:
Place of Origin: China
Brand Name: Waterun
Certification: CE/ROHS/SGS
Model Number: M6002DW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: 52x35x54cm/main:13kgs 43x42x20/duct:2.5kg
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, western Union or Paypal
Supply Ability: 1,000pcs per month
Contact Now
Detailed Product Description
Product Name: M6002DW Medical Type Fume Extractor Application: Air Cleaner, Fume Purifying
Construction: Metal Surface , HEPA Filters, Plastic Ducts Noise: Less Than 55 DB
Duct Diameter: Dia.75mm X 1.4m Length * 2 Voltage/Power: 110V-220V 80W
Systemic Flow: 235m3/h Filtering Efficiency: 0.3micron 99.97%
Advantage: With Double Ducts Cone Color: White
High Light:

portable weld fume extractor

,

portable fume hood

High Power Medical Weld Fume Extractor Carbon Filter with Ducts


Specifications:

Model Number:

M6002DW

Filters Quantity:

pre-filter 5pcs, middle filter 1pc, main filter 1pc

Voltage/Power:

110-220V, 80W

Systemic Flow:

235m3/h

Air Velocity:

17m/s

Filtering Efficiency:

0.3micron 99.97%

Length of Duct:

Dia.75mm x 1.4m * 2

Noise:

Less than 50db

Dimensions(mm)

420x245x400

Net weight

12kgs



Description:

High efficency fume extractor, which are widely used in the process of soldering, laser marking & carving, printing, etc.We have been selling a good quantity of our solder fume extractors to Germany, Israel, UK and a few other European countries. And we got quite good and positive feedback from them on the quality and performance of our products.

1.The fume extractor is not only used for absorbing the particles and gases , but also can purify the harmful air.

2. The fume extractor catches harmful smoke with freestanding ducts and adjustable air volume to significantly improve your working environment.

3.The fume extractor is designed to filter the harmful substances, such as hydrocarbon and cyanide, during the process of soldering, tin dipping in the solder pot, laser marking and carving, printing, etc.

4. Triple-filters system, including carbon filter, filter cotton, and HEPA filter ,can filter the fume clearly..

1) Pre-Filter: the large-size pad filter can filter large particles of dust
2) Middle Filter: it filters the bigger powders for prolonging the main filter's life.
3) Main Filter: it includes HEPA (high efficiency) filter and gas filter. The HEPA cleans the gas and powders filtering from the pre-filter and then carry them to the gas filter. which with the carbon and other chemical combination, filters off the deleterious substance and then outputs the clean air.


Features:

1. Freestanding flexible ducts facilitate production chaneovers

2. Ducts can be bent or lengthened as desired and maintain their shape after adjustment, letting you place them exactly where suction is needed.

3. It realizes powerful suction with quiet operation

4. The machine surface is made of metal, more corrosion resistance and durable

5. The airflow is freely adjustable according to working environments



Applications:

Waterun Technology Co.,Ltd manufacturing a variety of high quality air purification systems for filter the harmful substances. Our line of floor, bench top, mounted and portable units serve a variety of applications including welding, soldering, manufacturing, laboratory and pharmaceutical operations.Don’t despair if you don’t see your application listed below! Our modular product line can be configured in a number of different ways to address your specific requirements.Contact us today to find out the solutions!


1.

 soldering fume extractor

2.

 laser cutting, laser engraving and marking

3.

 electronics Manufacturing

4.

 welding, laser welding

5.

 medical, moxibustion, moxa-moxibustion

6.

 beauty fume extraction

7.

 Pharmaceutical and laboratories, chemical

8.

 3D printing

9.

 dust collector



Competitive Advantage:

1. Compared with the products from foreign countries, our products in terms of the effect is almost the same, but the majority of our products are less than USD2000, so our products are cost-effective, and the use of more affordable cost.

2. Our company uses a brushless motor, compare with the ordinary motor, this motor speed is higher, lower noise, it does not require maintenance, but longer product life span.

3. Self-developed impeller, better quality than ordinary plastic impeller, more stable, more powerful suction. The unique tiered filter design, can effectively purify the toxic and harmful substances in the air, such as formaldehyde, benzene, ammonia, radon gas, sulfur dioxide..etc, and use of low cost.


4. The products from abroad mainly purify the viruses and bacteria as the main direction of governance. In China not only to purify viruses, bacteria, but also clean harmful smoke pollution. WHO estimates that there are over 200 million people deaths each year due to inhalation of indoor and outdoor air pollution in small particles.

FQA:

1. What’s the functions for the filters?

Answers. 1) Pre-Filter/F8 pre-filter: the large-size pad filter can filter large particles of dust (according the requirement to select pre-filter or F8)
2) PP Middle Filter/Fiber glass filter: it filters the middle-size, small size particles bigger powders for prolonging the main filter's life. (according the requirement to select PP middle filter or fiber glass filter,can use both, the efficiency better.)
3) Main Filter/Active carbon: it cleans harmful particles and fumes.
4) High efficiency filter(combine middle filter and active carbon filter): it can filter about 0.3micron particles and other harmful fumes.

2. What’s the advantage compare with ducted exhaust fan?

Answer: 1. Many advantages like (1) Clean the air quality (2) energy saving (3) easy installation, flexible remove (4) low cost (5) reduce the incidence of diseases and major diseases, and health is priceless (6) to reduce unpleasant  smell (7) to reduce dust and other harmful substances, and so on.

3. What’s the life span of our fume extractor?

Answer: Motor lifetime is (continuous working 24 hours) 20,000 hours, consider environmental factors. Usually it can use 4-5 years without any problems based on the normor working condition.

4. The ducts for the fume extractor can be shortened or lengthened?

Answer: It can be shortened or lengthened appropriate; but we suggest not more than 1.5meter. For multi-station, the total pipe length should not exceed 10 meters.If you really need the long duct, you need purchase the corrugated hose.

5. What’s the best distance between the nozzle and the smokes?

Answer: The distance to be 5-15cm is the best, and the absorb function is very strong.

6. How long need to to replace the pre-filter, middle filter and the main filter?

Answer: 1. Pre-filter : normally needs to replace by 1 months
        2. Middle filter: normally needs to replace by 3 months
        3. Main filter: normally needs to replace by 6 months.
All above life time base on the normal working condition

7. Can our fume extractor reduce the harm of poison gas?

Answer: Because our fume extractor has several high quality filters, including the active carbon filters, which can filter the harmful particles, and pre-cotton filter, which can aborb the gase air. and the HEPA filters.  All these kind of filters can reduce the harm from poison gas.
