Double Ducts Solder Smoke Absorber with Filter Clogging Alarm System Fume Extractor

Double Ducts Solder Smoke Absorber with Filter Clogging Alarm System Fume Extractor

  • Double Ducts Solder Smoke Absorber with Filter Clogging Alarm System Fume Extractor
  • Double Ducts Solder Smoke Absorber with Filter Clogging Alarm System Fume Extractor
  • Double Ducts Solder Smoke Absorber with Filter Clogging Alarm System Fume Extractor
  • Double Ducts Solder Smoke Absorber with Filter Clogging Alarm System Fume Extractor
Double Ducts Solder Smoke Absorber with Filter Clogging Alarm System Fume Extractor
Product Details:
Place of Origin: China
Brand Name: WATERUN
Certification: ROHS, SGS,CE
Model Number: F6002D
Contact Now
Detailed Product Description
High Light:

fume extraction systems

,

soldering smoke absorber



Double Ducts Solder Smoke Absorber with Filter Clogging Alarm System







Quick Detail:



  1. Brand Name:  WATERUN/OEM
  2. Model Number:  F6002D
  3. Application: fume purifying and filtering
  4. Material:  metal, plastic, HEPA filter
  5. Noise:  less than 60 dB
  6. Features: Triple-filter design, powerful suction with quiet operation

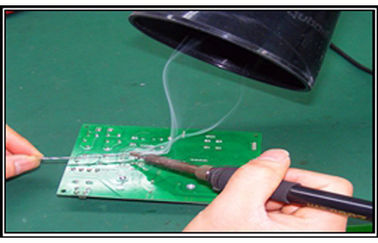

  7. Usage: Used to absorb and filter the harmful fume during the process of soldering, laser marking,
    printing, etc.





Description:



1. The fume extractor is for cleaning of both particles and gases.

2. The fume extractor is designed to filter the harmful substances, such as hydrocarbon and cyanide,

    during the process of soldering, tin dipping in the solder pot, laser marking and carving, printing, etc.

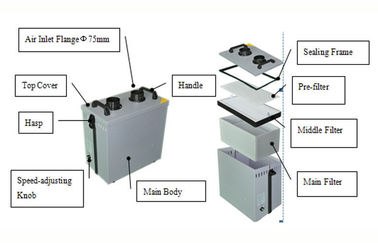

3. The fume extractor has a triple-filter system.

3. The fume extractor catches harmful smoke with freestanding ducts and adjustable air volume to

    significantly improve your working environment.

4. We have been selling a good quantity of our Fume Extractors to Germany, Israel, UK and a few other

   European countries. And we got quite good and positive feedback from them on the quality and

   performance of our products.

6. We make really effective Fume Extractors only. They are widely used in the process of soldering, laser

    marking & carving, printing, etc.





Features:

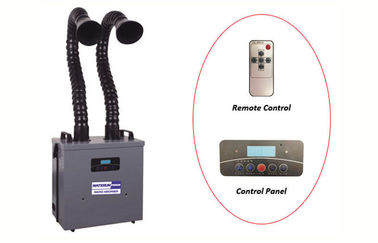

1. With the intelligent control panel and digital display, the operation becomes easy and simple. By

    pressing the button, you can freely adjust the air volume and set the working time,. you can achieve

    real-time monitoring on the working status.

2. Equipped with the remote control, the operator can control the machine from a distance.

3.With the truly sensitive and effective "Filter Clogging Alarm System". When the filter gets saturated and

   clogged, the machine will give sound and light alarms within 20 seconds. It notifies the operator to

   replace the filter in time, to guarantee a comfortable working environment.

4. Ducts can be bent or lengthened as desired and maintain their shape after adjustment, letting you

    place them exactly where suction is needed.

5. The High-voltage and large-volume brushless motor, ensure low vibration, low noise, stable operation.

and long life span.



Applications:



1. Location: SMT factories, Electronic factories, workshops

2. Fume environmental equipment for workshop, used to absorb and filter the harmful fume during the

    process of soldering, laser marking, printing, etc.





Specifications:



Model

Voltage

Power

Ducts

Systemic

 flow

Air

 Velocity

Filtering

 Efficiency

Length of

Duct

Noise

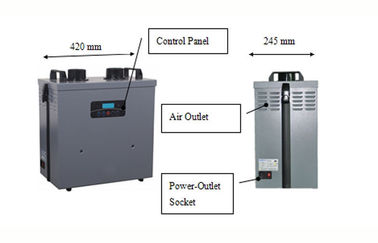

Dimensions

(mm)

Weight

F6001

110v/220v

80W

1

235m3/h

17m/s

0.3µm

99.97%

D75mm x1.4m

<55dB

420*245*400mm

12kg

F6002

110v/220v

200W

2

2*150m3/h

2x11m/s

0.3µm

99.97%

D75mm x1.4m

<60dB

420*245*400mm

13kg

F6001D

110v/220v

80W

1

235m3/h

17m/s

0.3µm

99.97%

D75mm x1.4m

<55dB

420*245*400mm

12kg

F6002D

110v/220v

200W

2

2*150m3/h

2x11m/s

0.3µm

99.97%

D75mm x1.4m

<60dB

420*245*400mm

13kg

F800

110v/220v

35W

1

160m3/h



0.3µm

99.97%

D50mm

<50dB

300*270*300mm

4.5kg
