Guangzhou EPT Environmental Protection Technology Co.,Ltd
High quality, Best service,Reasonable price.
|Place of Origin:||GUANGZHOU ,CHINA|
|Model Number:||853DA 1A|
|inner box size:||33*27*20.2cm|
|outercarton box size:||56*34.5*42cm|
|Minimum Order Quantity:||1PCS|
|Delivery Time:||As per the order quantity confirmed|
|Payment Terms:||TT/PYAPAL ,WESTERN UNION|
soldering desoldering station,
smd rework station

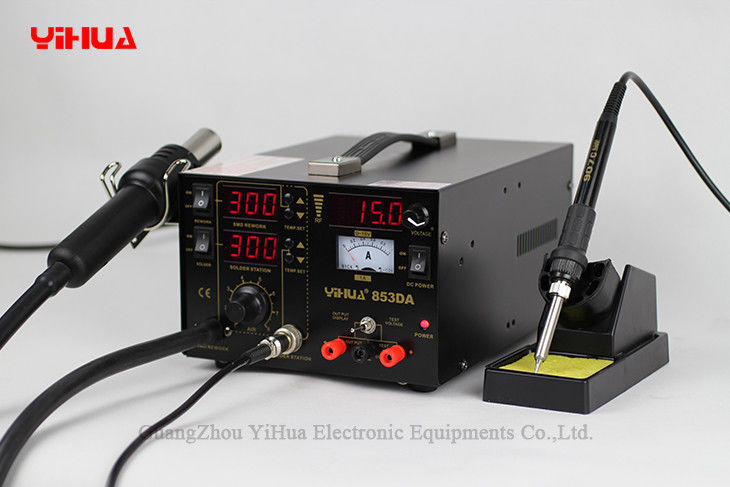

Mobile phone rework station with DC power supply YIHUA 853DA
Recently illegal criminals counterfeit our machine that the machine we have independent
intellectual property rights .Use three non false and inferior to assemble the device,
machine handle serious security risks, the crisis to the user's safety. Recently, we will
take action in every major internet sales platform to take activism.Infringement of our
intellectual property to promote fake and shoddy products off the shelf as soon as
possible to ensure the user's safety. Please must be careful to identify when you
purchasing, avoid fooled!
Patented products, counterfeiting not allowed
1.it has hot air rework,soldering station,powe supply 3 in 1 multi-functional tools,A product can meet customer testing,maintenance, welding and other demolition work .
2.Products within the exclusive use of double panels, patch (SMD) process, dual-CPU control,it has prolong lifetime.
3.Inside has dual-CPU control,,one of the bad, the other can continue to work, it ensure the main unit stability.
4.LED accurate display real-time temperature of the current work,procedures in milliseconds to high speed track of the air gun and soldering iron actual temperature, rapid temperature compensation enhance the temperature stability.Avoid temperature error leading to damage delicate components,welcome to users thermometer test.
5.Use high quality Diaphragm pump air outlet,air is focus on and air pressure big, strong winds and long service life.
6.Air gun heater use of long-life Skeleton heating elements,long-term use it,will not deformation and not short-circuit,air gun handle air outlet tube and nozzles’s material is stainless steel.
7.Iron heateruse of new crafts and high-quality material,it prolong using lifetime,reducing the failure rate.
8.Power supply part:voltage:0~15V current:0~1A,its scope is far higher than the independent power supply,the most advanced short circuit protection auto recovery circuit, to full maintenance functions suitable for mobile phone maintenance, commissioning of production lines, laboratories and other occasions.
1). Iron and gun temperature are using Intelligent Fuzzy logic PID control, therefore the temperature steady-state drift is relatively small, it overcomes the drift quite quickly even in a harsh environment.
2). Fan's airflow capacity,Iron and Hot air rework's temperature are all adjustable, the power supply voltage is shown on the LED digital display, and it is constantly updated.
3). Iron, Gun and power supply are using independent dual-core micro-controller, which means they can work independently, when the problem occurs on one tool it does not affect the others. Dual-core CPU is used to avoid failures .
4). Hot air rework, soldering iron are equipped by variety of fault protection
5). Power supply part of the recovery with continuous protection and RF protection, to avoid various unexpected burning mobile the phenomenon of interference.
6). The DC power supply provides power to a mobile phone, it can also detect the RF signal's strength through the LED indicator.
Rated voltage: AC 220V±10% 50HZ ( 110V±10% 50HZ)
Whole machine Power Consumption: ≤800W
Work environment: 0-50°C
DC power supply parts
work Voltage :AC:26V±10% 50HZ
work Voltage: AC:220V±10% 50HZ( 110V±10% 50HZ)
work Voltage:AC 220V±10% 50HZ ( 110V±10% 50HZ)
Tip of ground impedance<2ohm
Gun type:Diaphragm pump
Airflow is focus on it,24L~28L/Min
Tip of ground voltage: <2mV
|Gun heater resistance:90Ω||
Ripple dB<1mvrms (virtual value)
|Iron Heater material: Common heater||
Gun heater material:Nickel-alloys
|Iron handle:Black handle||
Protection starting current:>standard value 10%
What's in the box:
* main unit + gun + power cord
* soldering iron
* soldering iron holder +gun frame+testleadest cable
* 4 nozzles
These are 220V units you may need a transformer to use the machine in your country. we also do accept special orders for 110V / 230V/ 240V units.
You could arrange to ship the goods by your self , or ask we help you arrange to ship. If we help you
arrange to ship. Before quote the shipping freight, we need to know which model and quantity you are
asking. We will according your detail address, order model and quantity to advise you ship by sea or,
by air ,or by Express.
Over 100~over500pcs are 20days will ship out. Over 1000pcs are 30days .
If the material not enough or we have some customer queue up our products before you,
we will discuss with you the shipping date. If you want the delivery date faster than that day, please inquiry us,
we will try to do it as your request.
One Years warranty
As usual, the shipping fee are high. if return China to repair are not worth the money. So we could support
technology and give you the spare parts along with the product .
Note: warranty does not cover wearing parts:, for example :iron heater, gun heater ,iron tips.
If the customer have special request, pls inform me before produce.DJUSTABLE TEMPERATURE CONTROLLED
