Hakko FX-951 ESD Safe Digital Soldering Station For Hakko T12 Soldering Tip

Hakko FX-951 ESD Safe Digital Soldering Station For Hakko T12 Soldering Tip

  • Hakko FX-951 ESD Safe Digital Soldering Station For Hakko T12 Soldering Tip
  • Hakko FX-951 ESD Safe Digital Soldering Station For Hakko T12 Soldering Tip
Hakko FX-951 ESD Safe Digital Soldering Station For Hakko T12 Soldering Tip
Product Details:
Place of Origin: China
Brand Name: Hakko
Certification: ROHS, SGS,CE
Model Number: FX-951
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: 1 pcs /pack
Delivery Time: 7-10 days
Payment Terms: FOB Shenzhen, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000PCS/month
Contact Now
Detailed Product Description
Power Consumption: 75W Temperature Range: 200 To 450ºC
Temperature Stability: ±5ºC At Idle Temperature Soldering Iron: FM-2028
Soldering Tip: T12 Soldering Tip Heating Element: Ceramic Heating Element
High Light:

soldering iron station

,

soldering desoldering station

Hakko FX-951 ESD Safe Digital Soldering Station For Hakko T12 Soldering Tip





Applications:



Soldering station is a kind of commonly used in electronic welding technology of hand tools, through the solder (usually refers to the tin wire) heating, melting, making two workpiece welded together.





Description:



Hakko 951 Soldering Station Standard: Soldering Station (HAKKO FX-951), Soldering Iron (HAKKO FM-2028*), Card, Power Cord, Heat Resistant Pad, Iron Holder, Connecting cable, Instruction Manual (One of each unless specified)





Quick Detail:



  1. Brand Name:  Hakko/WATERUN/OEM
  2. Model Number:  951
  3. Application: Soldering, Welding
  4. Standard Soldering Tip: Hakko T12 Soldering Tip
  5. Usage: Welding, Soldering
  6.

Features:

  • Compact high-power thermally-controlled soldering iron
  • Standard model that ensures high thermal recovery needed for lead-free soldering
  • Selectable soldering iron for N2 system or micro soldering as usage at your option

Hakko FX-951 ESD Safe Digital Soldering Station For Hakko T12 Soldering Tip 0





Standard Part:



FM-2028 Soldering Iron



Description: Powerful thermal recovery allows soldering at lower temperature settings. Lineup includes 85 types of standard soldering tips.



Three Features of the Soldering Iron HAKKO FM-2028



・ Interlock mechanism with the iron holder makes setting of the power-save setting easy.
・ Power-save function allows minute-by-minute setting. (up to 30 minutes)
   0-29mins. --- Sleep mode,
   30 mins.--- Auto-power, Shutoff
・ Enclosed type iron holder ensures safety.





Other Option:



1. N2 soldering iron---Hakko FM-2026

    Improve solderability and wettability with the HAKKO N2 system.



2. Micro soldering iron---Hakko FM-2032

    Specially designed handle and tip provide improved workability when mounting minute, high-density electronic components.





Composite tip:





The composite tip is a ceramic soldering tip with integrated heating element and sensor. Despite its highly compact design, the tip offers superior thermal responsivity and greatly improved thermal recovery.





Specifications:



Model No. FX-951
Power consumption 75W
Temperature range 200 to 450ºC
Temperature stability ±5ºC at idle temperature
・Station

Output voltage AC 24V
Dimensions 80(W)×130(H)×131(D)mm
Weight 1.2kg
・Soldering Iron

Power consumption 70W (24V)
Tip to ground resistance <2Ω
Tip to ground potential <2mV
Heating element Composite heater
Cord length 1.2m
Total length 188mm (with 2.4D tip)
Weight 30g (with 2.4D tip)





Standard Soldering Tip:



T12-B,T12-B2,T12-B2Z,T12-B3,T12-B4,T12-BC1,T12-BC1Z,T12-BC2,T12-BC2Z,T12-BC3,T12-BC3Z,T12-BCF1,T12-BCF1Z,T12-BCF2,T12-BCF2Z,T12-BCF3,T12-BCF3Z,T12-BL,T12-BZ,T12-C1,T12-C4,T12-C4Z,T12-CF4,T12-CF4Z,T12-D4,T12-D08,T12-D12,T12-D16,T12-D24,T12-D52,T12-DL08,T12-DL12,T12-DL32,T12-DL52,T12-I,T12-IL,T12-ILS,T12-J02,T12-JL02,T12-JS02,T12-K,T12-KF,T12-KL,T12-KR,T12-KU

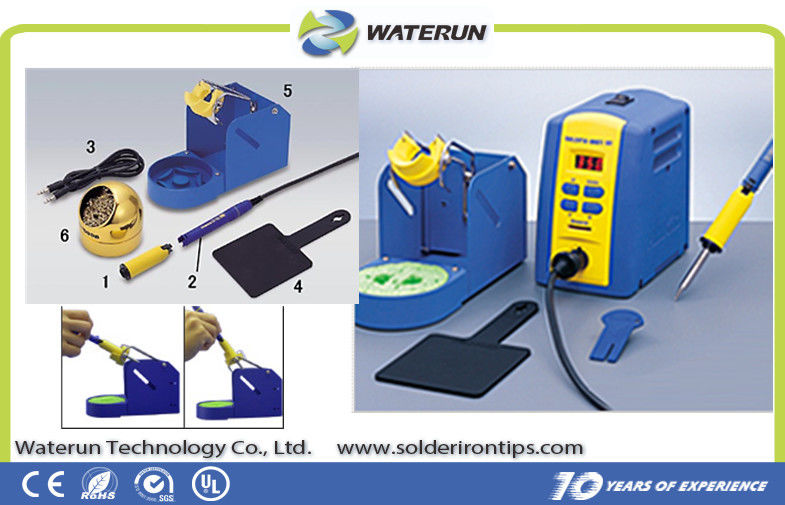

Hakko FX-951 ESD Safe Digital Soldering Station For Hakko T12 Soldering Tip 1





Replacement Parts:



Name Specifications
FH200-02 Iron holder <w/ cleaning sponge>  (w/ power-save function)
FM2028-01 Soldering iron FM-2028 <w/ sleeve assembly, yellow>                                        (70W (24V))
B3253 Connecting cable
B2300 Heating resistant pad
B2972 Control card
B3216 yellow Sleeve assembly
A1536 green Cleaning sponge
FM2028-03 Connector assembly
B3220 Connector cover

Hakko FX-951 ESD Safe Digital Soldering Station For Hakko T12 Soldering Tip 2





Packing detail:



Model No. Packing List
No. FX951 Soldering Station (HAKKO FX-951), Soldering Iron (HAKKO FM-2028*), Card, Power Cord, Heat Resistant Pad, Iron Holder, Connecting cable, Instruction Manual (One of each unless specified)





Hakko FX-951 ESD Safe Digital Soldering Station For Hakko T12 Soldering Tip 3





Competitive Advantage:



Our advantage:

1. We are a leading manufacturer of Soldering Products, ESD Products, Cleanroom Products, Tools & Instruments for

    Electronic Assembly Industry. We have been in this line 11 years.

2. We supply a wide range of products and provide one-stop service for Electronic Assembly Industry.

3. We keep a lot of stock for regular products and we can support small orders. Usually, our lead time

    is just 3-5 days.

4. We can also customize the products to fulfill different requirements.

5. Credibility: We are the 6th year Alibaba Gold Supplier. Our customers are located all over the world.

6.Gratitude: We cherish and feel grateful to every customer for the business you give us. We are your

   reliable partner and will return to you with good products and good support.

7.Professional: We have been in this business for more than 10 years. We have a strong professional

   team with various experiences.

8. We keep doing new product development. Our goal is to enhance our competitive capacity constantly.

9. Price: we always offer competitive prices and help our customers to cost down.

10. Quality: we do 100% inspection before the shipment.

11. Promise: we are always ready to shoulder the responsibility if any loss caused to our customer due

     to our mistakes.
