Guangzhou EPT Environmental Protection Technology Co.,Ltd
High quality, Best service,Reasonable price.
|Place of Origin:||China|
|Certification:||ISO AND CE|
|Minimum Order Quantity:||1pc|
|Packaging Details:||Plywood box|
|Delivery Time:||1 Week|
Welding Fume and Dust Cleaner,
Portable fume extractor,
Smoke catcher for welding fume

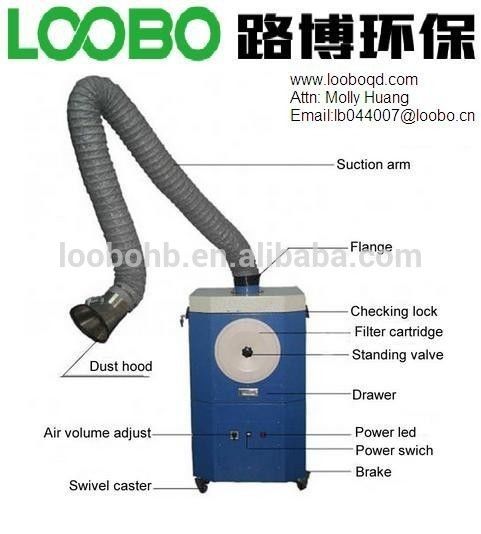

Portable Fume Extractor and Dust Cleaner
for welding/metal fabrication field

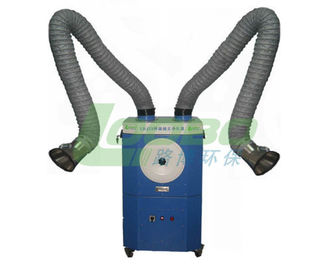

Available for both one arm and double arms.
LB-JZ Series Welding Fume Purifier Parameters Table:
Filter Area (M2)
L xWxH (mm)
N. W. (KG)
LB-JZ (D) back-flushing pressure is 0.5-0.6Mpa.
Pulsing back-flushing automatic dust-removal system.
The welding fume purifier is easy of installation, and has no technical requirements when the customer install and use it. The flexible extraction arm is made from high quality material of PVC and steel wire, which is anti-corrosion, heat-resistant of up to 140°C. It can swivel 360º and can be brought in any desired direction without additional support. It is equipped with the damper to adjust the wind. It is equipped with the caster wheels and can be freely mobile to meet the requirements of different work places.
The purified gas can meet the standard requirements and can enter into work room or indoor place, which is helpful to keep the room close, maintain the temperature and be convenient for work.
Under the help of the fan device, the welding fume is sucked into inlet through multi-direction sucking hood. There is the flame arrester in the inlet, so the spark can be blocked here, and the left fume and dust is sucked into gravity separator. The bigger paticiles firstly descend into dust bag. The smaller particles is arrested in the surface of core filter. The cleaner gas then flow into clean room after being purified by core filter. In clean room, the clean gas is then further purified by active carbon. At last, the gas meets the required standards and enter into air or other required room.
1) It is equipped with ABB turbo fan and motor imported from Germany and America, with overload prevention circle to avoid motor damage. It is of steady performance.
2) It is equipped with built-in centralized PLC controlling system. The operation panel is clear and simple, very easy to operate.
3) Pulsing back-flushing automatic dust-removal system: The filter core is the automatic rotating and back-flushing type, which keeps the filter core surface clean when working, to insure the stable blowing rate; The air compressor parts are connected with high pressure rubber pipe with high pressure air-inflow in the bottom, which insure the facility always in good working condition.
4) The filter core is imported from the large company in America with long useful life. It can arrest the 0.3μm particles. The filtering effect is good for all kinds of particles including the wet particles.
5) It is equipped with the all-directions sucking arm of 360 degree rotating. It can suck the fume exactly from the source which make best of the fume collection efficiency, and insure the workers’ health in the largest extent.
6) It is equipped with three layer filter system to avoid the damage effect of flame and large slag particles, which extend the useful life, more safe and more reliable.
7) The clean air is exhausted uniformly and diffusely through the gridiron outlet, so it can minimize the noise.
8) It is attached with all-direction caster wheels, which makes the facility movable freely and easy to position.
9) Photoelectric controlled on/off, energy saving and high efficiency. The hood has the lighting device which is upon customer’s choice.
10) The parts working condition are all stable and has long useful life, meantime easy to be replaced.
Custom design and production is available.
Other main similar products:
1. LB-JZX model(double cartridge filters):
2.LB-BG model(wall mounted type):
3.LB-JK model(with simple structure):
4.LB-JW model(Flat filter):
5.LB-JF model(High vacuum pressure type):
