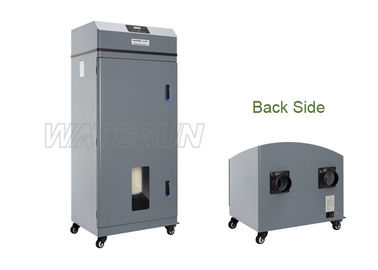

Protective Metal Surface Welding Dust Extractor , Weld Fume Extractor

Protective Metal Surface Welding Dust Extractor , Weld Fume Extractor

  • Protective Metal Surface Welding Dust Extractor , Weld Fume Extractor
  • Protective Metal Surface Welding Dust Extractor , Weld Fume Extractor
  • Protective Metal Surface Welding Dust Extractor , Weld Fume Extractor
  • Protective Metal Surface Welding Dust Extractor , Weld Fume Extractor
  • Protective Metal Surface Welding Dust Extractor , Weld Fume Extractor
  • Protective Metal Surface Welding Dust Extractor , Weld Fume Extractor
Protective Metal Surface Welding Dust Extractor , Weld Fume Extractor
Product Details:
Place of Origin: China
Brand Name: Waterun
Certification: CE/ROHS/SGS
Model Number: F6000D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: 65x54x140cm/set, 75kgs
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, western Union or Paypal
Supply Ability: 1,000pcs per month
Contact Now
Detailed Product Description
Product Name: Welding Fume Extractor Accessories: PP Filters, F8 Filters, Actived Filters , Glass Filters, Corrugated Hose
Connector Size: 90mm X 2 Noise: Less Than 75 DB
Dimension: 550x415x1300mm Voltage/Power: 110V-220V 700W
Feature: DC Brushless Motor Filtering Efficiency: 0.3micron 99.97%
High Light:

portable welding fume extractor


weld fume extractors

Protective Metal Surface Welding Dust Extractor , 700W Welding Fume Extractor

Model Number:


Filters Quantity:

pre-filter 5pcs,PP filter 1pc,glass fiber filter 1pc, active carbon filter 5pcs


110-220V, 700W

Systemic Flow:


Filtering Efficiency:

0.3micron 99.97%

Length of Duct:

Dia.90mm x1.4m


Less than 75db


550 x 415 x 1300

Net weight


Protective Metal Surface Welding Dust Extractor , Weld Fume Extractor 0Protective Metal Surface Welding Dust Extractor , Weld Fume Extractor 1Protective Metal Surface Welding Dust Extractor , Weld Fume Extractor 2Protective Metal Surface Welding Dust Extractor , Weld Fume Extractor 3
Welding Fume Purifier / Extractor is designed specially for cleaning of both particles and gases, It is designed to filter the harmful substance, such as hydrocarbon and cyanide, during the process of soldering, tin dipping in the solder pot, laser marking & carving, printing, etc. It catches harmful smoke with freestanding ducts and adjustable air volume to significantly improve your working environment.
1, Integrated body design, structured with metal framework and processed with electrostatic spraying for premium cold-rolled steel sheet, is corrosion-resistant, environment-friendly and durable.
◆ Original noise reduction structure design enables it to work more quietly and create a more tranquil and pleasant environment.
◆ Unique modeling curve design of original “air inlet flange” better accords with fluid mechanics principle (A patent application has been filed).
◆ Microcomputer intelligent control and digital display keep you informed of the use condition all the time.
◆ Really effective intelligent “filter element blockage alarm” function gives an acousto-optic alarm immediately upon filter element blockage.
◆ Available for remote operation; stepless speed regulation for you to regulate air volume and suction force arbitrarily without the necessity of bending over and lowering your head.
◆ Small, easy to use and install; standard castor for convenient and flexible movement.
2, Four-stage purification design: filtering step by step enables harmful smoke to be better purified. Even for objects at least 8 times smaller than PM2.5, the purification rate can reach up to 99.97%.
◆ Active carbon filter element with catalyst can absorb multiple substances that exist in the air to be purified and are with foreign odor, toxic and harmful. Modular design for protection layer by layer: Independent replacement of primary, medium and high-efficiency filter elements enables longer service life of filter element and lower use cost.
◆ Energy conservation and environmental protection: Built-in circular initiative filtering method can prevent indoor cold air/warm air from flowing outside without destroying temperature and humidity environment in the operation section.
3, This product has the 1.4m universal smoke suction arm, which can be positioned and oriented arbitrarily (its length may be regulated according to customer requirements, without the support of external force). (A patent application has been filed.)
◆ Original square-shaped smoke hood, uniquely structured in accordance with aerodynamics principle, has larger smoke suction area and better efficiency. (A patent application has been filed.)
◆ Easy installation and convenient use without the necessity of laying pipes otherwise.
4, Adopt DC brushless motor that has stable performance and long service life. Low noise, high efficiency, low energy consumption, zero maintenance and zero consumable.
◆ The wind wheel, designed in vortex backward type, adopts special alloy material that could effectively prevent itself from being corroded. Unique dynamic balance correction technology enables it to operate more stably and reliably, with higher wind suction volume. (A patent application has been filed.)
5, CE and PONY certified, safe and reliable.
◆ Designed according to standards: Indoor Air Quality Standard, GB21551.1- 2008 and GB/T 18801.
◆ Awarded national appearance design patent and the overall structure utility model patent. No counterfeiting is allowed.
6, Special metal material wheel, corrosion protection.
Our line of floor, bench top, mounted and portable units serve a variety of applications including welding, soldering, manufacturing, laboratory and pharmaceutical operations. Waterun Technology Co.,Ltd manufacturing a variety of high quality air purification systems for filter the harmful substances. Don’t despair if you don’t see your application listed below. Our modular product line can be configured in a number of different ways to address your specific requirements.Contact us today to find out the solutions!


 soldering fume extractor


 laser cutting, laser engraving and marking


 electronics Manufacturing


 welding, laser welding


 medical, moxibustion, moxa-moxibustion


 beauty fume extraction


 Pharmaceutical and laboratories, chemical


 3D printing


 dust collector

Competitive Advantage:
1. Self-developed impeller, better quality than ordinary plastic impeller, more stable, more powerful suction. The unique tiered filter design, can effectively purify the toxic and harmful substances in the air, such as formaldehyde, benzene, ammonia, radon gas, sulfur dioxide..etc, and use of low cost.
2. Compared with the products from foreign countries, our products in terms of the effect is almost the same, but the majority of our products are less than USD2000, so our products are cost-effective, and the use of more affordable cost.
3. The products from abroad mainly purify the viruses and bacteria as the main direction of governance. In China not only to purify viruses, bacteria, but also clean harmful smoke pollution. WHO estimates that there are over 200 million people deaths each year due to inhalation of indoor and outdoor air pollution in small particles.
4. Our company uses a brushless motor, compare with the ordinary motor, this motor speed is higher, lower noise, it does not require maintenance, but longer product life span.
Five Technical Superiorities:
1 ) Precise control technology achieved by microcomputer chips;
2 ) Brushless motor + no Hall technlogy;
3 ) Overheat protection technology;
4 ) Flange Equilibrium distribution technlogy;
5 ) Clogged filter alarming technology.
Company Factory Profile
NEW OXYGEN Purification Technology Co., Ltd, established in 2005, is a China National High Technology Enterprice. Located in Dongguang China, we have been focusing on the purification of harmfulfumes for nearly 15 years. New Oxygen has become the leading manufacturer of fume extractors in China. Our products are widely used for eliminating Solder Fumes, Laser Fumes, Welding Fumes, Beauty Salon Fumes, Medical Fumes, 3D printing Fumes, etc.
We own several brands : NEW OXYGEN, FUME GO, QUBO, etc.
New Oxygen makes really effective Fumes Extractors only, Our superiority in technology and high quality has gained the leading position in the air purifying industry. The filtering efficiency of our Fume Extractors has reached the highest standard in the world.
