|Place of Origin:||Guangzhou China|
|Gun type:||Brushless fan|
|Inner box size:||26*16.5*14.8cm|
|Outer box size:||58*37*34 cm|
|Outer carton weight:||20.62KG|
|Minimum Order Quantity:||1PCS|
|Packaging Details:||8PCS / CTN|
|Payment Terms:||T/T PAYPAL WESTERN UNION|
temperature controlled soldering station,
cell phone soldering station

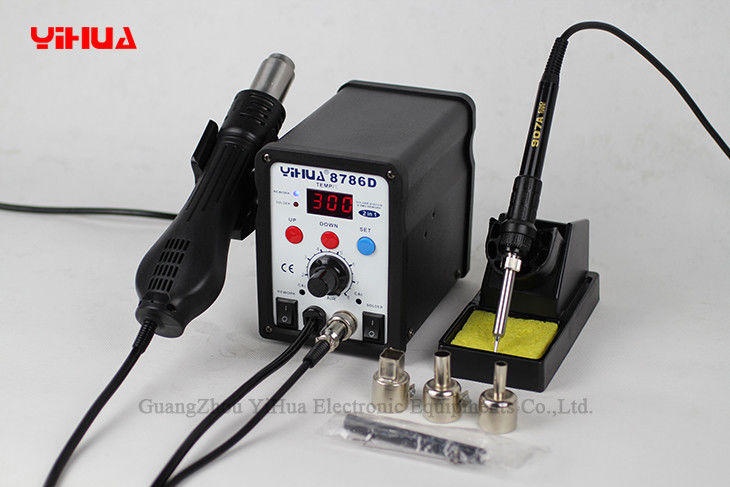

SMD Rework Station Hot Air 2 IN 1 Soldering Station With LED Display
1. High-grade LED digital red LED display,nice apperance and durable.
2. Red&blue keypad can conversion function indication,more convenient,visualized and beautiful.
3. Indicate light is blue:means gun display state indication.
4. Indicate light is red:means iron display state indication.
5. Hot air rework and soldering station perfect combination in 1,not only easy operate and convenient,but also small housing,take up small place,save more worktable place.suitable for all kinds of maintain and produce place use.
6. Sensors closed loop,microcomputer PID control,precise control temperature,LED digital red show a variety ofcondition,conversion key,more convenient and visualable.
7. Hot air gun with strong power,warming-up quickly,soft airflow outlet,large airflow,extremely suitable forlead-free soldering work.
8. Soldering station heater adopt low voltage supply,efficiently protect sensitive components and workstaff.
9. YIHUA8786D electric soldering iron & hot air gun has Fault self-detective alarming show function.
1. Comfortable portable handheld and the Digital LED display.
2. Microcomputer control,warming-up quickly.
3. Adjust the air flow and temperature control rotatin.
4. Refer to the instructions included with three kinds of nozzles (big,medium and small) replacement part.
5. Would replace the part if the resistance value is incorrect.
6. When the temperature is less than 70°c, can stop rotation automatically.
7. Intelligent system that could alarm , Fault detection automatically.
8. This product is ESD-protected.
9. High-quality resistance good for long service life
10. Shell using alloy material, elegant appearance.
11. Safe solder QFP, PLCC, BGA and other temperature-sensitive components.
12. Intelligent detection and cool airflow features.
13. Green lines and high-quality silicone body heat good for extend life and save power.
|Gun temperature range||100-450oC||Soldering Iron Temperature range||200-450oC|
|Soldering Iron type||Black handle|
|Gun heater material||Ferro-Alloys||Soldering Iron heater material||Common heater|
|Gun heater resistance||74Ω||Soldering Iron heater resistance||15Ω|
Specifications and design subject to change without notice
What's in the box :
* main unit + gun + power cord
* soldering iron
* soldering iron holder
* 3 nozzles
These are 220V units you may need a transformer to use the machine in your country. we also do accept special orders for 110V / 230V/ 240V units
