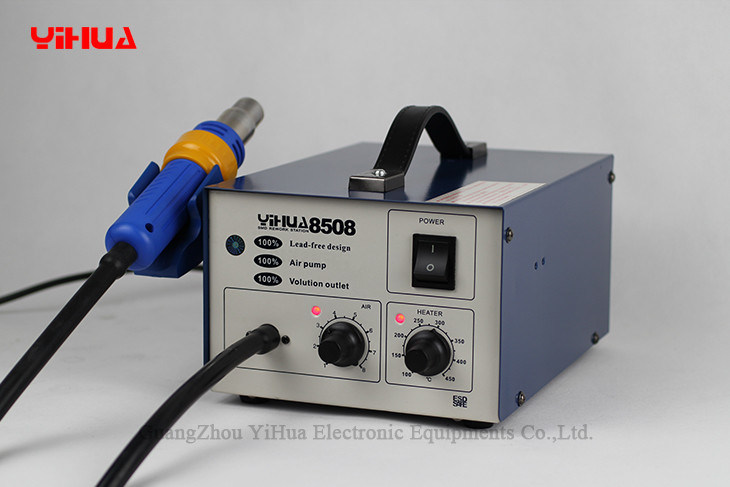

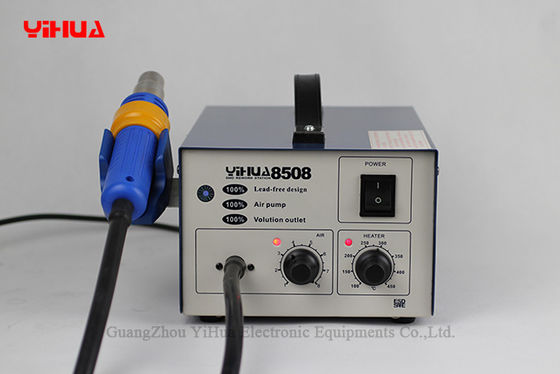

ESD Hot-Air Soldering Stations , Temperature Controlled Rework Station Yihua 8508 Main Function
1. SAMSUNG microcomputer control , warming-up quickly.
2. Safe solder QFP, PLCC , BGA and other temperature-sensitive components.
3. Adjust the air flow and temperature control rotation.
4. Refer to the instructions included with three kinds of nozzles ( big , medium and small ) replacement part.
5. Would replace the part if the resistance value is incorrect.
6. When the temperature is less than 70oC , can stop rotation automatically.
7. Intelligent detection and cool airflow features.
8. Green lines and high-quality silicone body heat good for extend life and save power.
ESD Hot-Air Soldering Stations , Temperature Controlled Rework Station Yihua 8508 Data
|
Power consumption
|
700W
|
|
Gun temperature range
|
100-450oC
|
|
Gun type
|
Diaphragm pump
Air flow 28L / MIN
|
|
Gun heater material
|
Nickel alloys
|
|
Gun heater resistance
|
90Ω
|
What Difference For Brushless Fan And Diaphragm Pump?
diaphragm pump the air are focus , airflow are 24~28L / min. brushless fan the air are soft , airflow are 120L / min.
|
Model NO
|
Inner box
Dimension(cm)
|
Outer box
Dimension(cm)
|
QTY
|
Product weight
|
|
YIHUA 8508
|
32*27*19.8
|
56*34*60
|
6pcs
|
3.5kg
|
Remark
Specifications and design subject to change without notice
What's In The Box
* main unit + gun + power cord
* guide

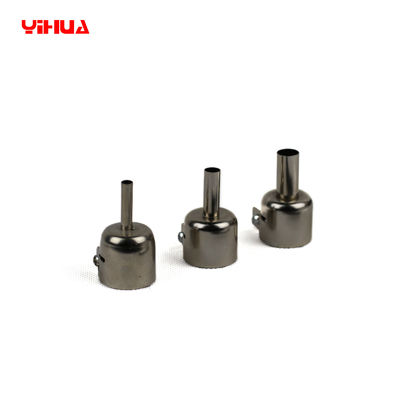

* 3 nozzles
These are 220V units , you may need a transformer to use the machine in your country. we also do accept special orders for 110V / 230V / 240V units.
And we have black appearance and blue appearance for your choice.
