Soldering fume extractor for electronic device manufacture

Soldering fume extractor for electronic device manufacture

  • Soldering fume extractor for electronic device manufacture
  • Soldering fume extractor for electronic device manufacture
  • Soldering fume extractor for electronic device manufacture
Soldering fume extractor for electronic device manufacture
Product Details:
Place of Origin: China
Brand Name: LOOBO
Certification: ISO AND CE
Model Number: LB-QX200
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD
Packaging Details: PLYWOOD BOX
Delivery Time: 1 week
Payment Terms: t/t
Supply Ability: 1000pcs
Contact Now
Detailed Product Description
High Light:

Soldering fume extractor

,

Laser fume collection

,

smoke filter for soldeing

Soldering fume extractor for electronic

device manufacture

**Applicable occasions:

Soldering iron welding;Tin furnace, wave soldering, reflow soldering;Laser welding, engraving, marking, cutting;The chemistry lab;Medical institutions;

Beauty, etc.

***Technical Parameter Table

Stations(Arms)

one

two

Static pressure

900pa

Fan flow

200 m3/h

320 m3/h

System flow(including filtration device)

160m3/h

2*100 m3/h

Power

80W

120W

Noise

Less than 55db

Suction arm

length:1.5M

Voltage

220V AC

Size

400(L)*230(W)*350(H)MM

470(L)*230(W)*500(H)MM

Weight

7.8kg

15.5kg

**Product advantage:

1, with three filtration devices:It uses three filtration devices, including the initial filter, medium filter and main filter. The main filter is made up of HEPA high efficiency filtration and gas filtration. Large area primary filter can effectively filter large dust particles to extend the life of main filter.

2, Adjustable arm and the length of the arms can be adjustable according to user's requirement;

***Features:

1, integrated structural design of smoke filtration, easy for installation, mobile flexibly, not requires a fume suction pipeline.

2, high-power brushless DC motor, long life, low noise, a large air flow.

3, Triple fume filtration design, ensure to totally filter out hazardous substances, protect the security of human. Initial filter, medium filter and main filter can be replaced individually, to make full use of filters to reduce the production cost.

4, Built-in smoke filtration cycle design avoids expelling indoor cold/heat air outside.

5, Multi-position design, adjustable air flow, flexible suction arm adjust freely.

6, Low noise design.

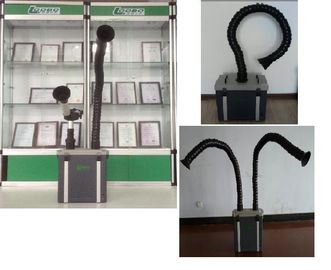

7, Single or Double-station design, adjustable air flow, directional air control adjustment.

Qingdao Loobo Environmental Protection Technology Co.,Ltd is one of the biggest enviromental protection products manufacturer, located in Qingdao city of china,specialized in alll kinds of portable fume extractor, downdraft benches(grinding dust removal worktable), central fume purification system, flexible suction arm,etc.

We have more than ten years export experience ,all of our products with the ISO9001 and CE certification, the quality can be guaranteed.

We have our own R&D department , have a variety of style range to meet any of your requirments and had established the economies of scale, so can dilivery fast and provide can beat your competitor's price.
