YH-853D 3A 4 LED with USB new type 3 in 1 soldering station with power supply

YH-853D 3A 4 LED with USB new type 3 in 1 soldering station with power supply

    • YH-853D 3A 4 LED with USB new type 3 in 1 soldering station with power supply
    • YH-853D 3A 4 LED with USB new type 3 in 1 soldering station with power supply
    • YH-853D 3A 4 LED with USB new type 3 in 1 soldering station with power supply
    • YH-853D 3A 4 LED with USB new type 3 in 1 soldering station with power supply
    • YH-853D 3A 4 LED with USB new type 3 in 1 soldering station with power supply
  • YH-853D 3A 4 LED with USB new type 3 in 1 soldering station with power supply

    Product Details:

    Place of Origin: Guangzhou China
    Brand Name: YIHUA
    Certification: CE
    Model Number: 853D 3A(A/M)
    soldering iron handle: Hakko heater soldering iron handle
    Air gun type: Brushless fan 120L/min soft wind
    Current: 3A
    Inner box size: 33*27*20.2cm
    Outer carton size: 56*34.5*42cm
    Q'TY: 4PCS /CTN
    G.W.:: 5.2KG/PCS
    Outer carton G.W.:: 21.6KG/CTN

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Packaging Details: 4PCS/CTN
    Payment Terms: T/T/ PAYPAL / WESTERN UNION
    Contact Now
    Detailed Product Description

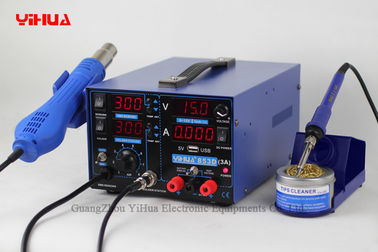

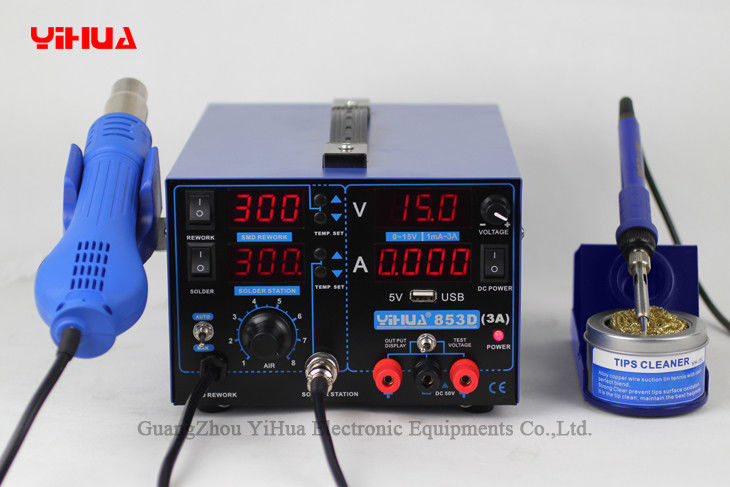

    YH-853D 3A 4 LED with USB new type 3 in 1 soldering station with power supply



    Main function



    YH-853D 3A 4LED with USB tegrate all merits of 853D+.

    it is improved from our old model:YIHUA853D+ 3A ,this new type also additional below new function:



    1.all parts is LED digital display ,and the current is 4 digital precise display current value,the current value can precise display mA value.it is very directly perceived through the senses.

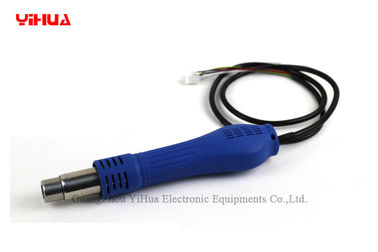

    2.Air gun handle add to auto./manual conversion function ,

    Manual mode: air gun back into the handle frame, air gun to maintain the current state of the work, the manual mode is suitable for frequent use of air guns, eliminating the need for back and forth to cool the warming process, convenient.

    Automatic mode: air gun back into the handle frame, air gun automatic cooling to standby, automatic mode for infrequently used air gun to save energy and reduce wear and tear on the machine, to extend the life of the machine

    3.Iron handle add to iron sleep function: iron handle have 10mins sleep function ,can use iron handle use lite.

    4.This new type add to 5V output USB interface ,it more convenience repair mobile phone,also can use power supply for mobile.

    5.Wiring terminal output use thick material than before,then the output end power will be larger than before.

    6.The goods inside board use double panel SMT technology,the performance more stability and durable.

    7.New front printing ,it makes the machine outlook more pretty.





    Technical data

    Rated voltage: AC 220V±10% 50HZ ( 110V±10% 50HZ)

    Total Power: 720W+75W+45W=840W±10%(max)

    Work environment: 0-50°C



    Iron parts

    Gun parts

    DC power supply parts

    work Voltage: AC:26V±10% 50HZ

    work Voltage: AC:220V±10% 50HZ( 110V±10% 50HZ)

    work Voltage: AC 20V±10% 50HZ ( 110V±10% 50HZ)

    Output power: 75W±10%

    Output power: 720W±10%

    Output power: 45W

    Temperature range: 200°C-480°C

    Temperature range: 100°C-480°C

    Output voltage: 0-15V

    Output current :3A

    Temperature stability: ±2°C

    Temperature stability: ±2°C

    Load stability: <0.01±2mv



    Tip of ground impedance: <2ohm



    recovery time: <100us

    Tip of ground voltage: <2mV

    Ripple dB: <1mvrms (virtual value)

    Heater: Imported heater

    Temperature coefficient:<300PPm/°C

    Color: Blue handle

    Protection starting current: >standard value 10%



    Pictures Display

    YH-853D 3A 4 LED with USB new type 3 in 1 soldering station with power supply

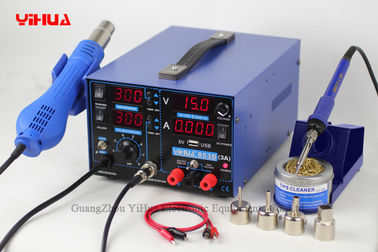

    What's in the box


    * main unit + gun + power cord
    * guide
    * soldering iron
    * soldering iron holder +gun frame+ cable

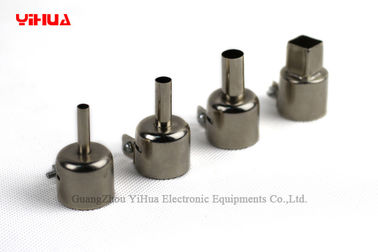

    * 4nozzles


    These are 220V units, you may need a transformer to use the machine in your country. we also do accept special orders for 110V / 230V/ 240V units
