BGA Rework Station 4in1 Hot Air Gun With Iron SMD Soldering Welder And Fume Extractor

BGA Rework Station 4in1 Hot Air Gun With Iron SMD Soldering Welder And Fume Extractor

  • BGA Rework Station 4in1 Hot Air Gun With Iron SMD Soldering Welder And Fume Extractor
  • BGA Rework Station 4in1 Hot Air Gun With Iron SMD Soldering Welder And Fume Extractor
  • BGA Rework Station 4in1 Hot Air Gun With Iron SMD Soldering Welder And Fume Extractor
Product Details:
Place of Origin: Guangzhou China
Brand Name: YIHUA
Certification: CE
Model Number: 968DB+
Inner box size: 36*30*24cm
QTY: 4PCS/Outer box carton
Goods weight: 4.83kg/pcs
G.W: 20.45KG/CTN
Contact Now
Detailed Product Description
High Light:

electronic soldering station

,

laptop rework Station





NEW BGA Rework Station 4in1 Hot Air Gun With Iron SMD Soldering Welder And Fume Extractor



It is patented products , the Patent No. 2012306291727 , we are not allowed counterfeit .





NEW BGA Rework Station 4in1 Hot Air Gun With Iron SMD Soldering Welder And Fume Extractor Features



1, Machine internal main board use dual panel,chip manufacturing process, higher quality, more stability;

2, To additional smoke absorber function, effectively to remove the smoke and dust generated during the welding process;

3, 28L ultra-stabilizing atmospheric diaphragm pump wind, strong wind, long service life;

4, Soldering iron part using a high-power imported heater, small or large solder joints can be easily de-soldering;

5, Temperature correction function, the aging of the heater and tip temperature deviation, use the correction;

6, Use PID program precise temperature control, temperature precise, and can effectively avoid the temperature error damage delicate components or motherboard, additional wind speed ball window, the observed air volume more intuitive.





NEW BGA Rework Station 4in1 Hot Air Gun With Iron SMD Soldering Welder And Fume Extractor Function



1. Air speed ball dynamic display airflow .

2.. -50 °C to +50 °C temperature compensation function

3. Fahrenheit / Celsius temperature conversion functions.

4. Soldering iron has smoke absorbed function. Smoke generated by soldering iron was immediately sucked away, after a dust-sheet absorption, filtration, this function is to achieve air purification effect, to bring users healthy, environmentally friendly work environment, no longer have to worry about the smoke produced for the use of soldering iron. If you don’t use soldering iron, in the case of using air gun, can iron inspiratory interface to the vacuum wand for blowing demolition IC to pick up the IC.

Note : In the case of blowing demolition of the IC, the vacuum suction pen only as pick up the IC tool, pick up IC then loose it immediately, because press vacuum pen pipe air inlet hole will reduce air gun air outlet.



5. High temperature automatic protection .

6. Airflow :28L/min, by the strong pressure of the pump as the air source, long life.

7. The machine part of the device has a self-test function, the whole intelligent over-temperature, short circuit, open circuit, overload, fault indication and protection functions.

8, The air gun steel tube use stainless steel tube, the air gun handle lines and soldering iron handle lines are silicone wire, high temperature, you can use for a long time.

9. All functions data setting is automatically saved, without duplication.





NEW BGA Rework Station 4in1 Hot Air Gun With Iron SMD Soldering Welder And Fume Extractor

technical data



Power consumption  720W
Soldering Iron Temperature range  200-480°C
Gun Temperature range  100-480°C
Gun heater material  Nickel-alloys
Gun heater resistance 90Ω
Soldering Iron Type  Black Handle
Soldering Iron Heater material  Imported heater
Gun type  Diaphragm pump

Airflow  28L/min
QTY  4PCS/Outer box carton

Inner box size 36*30*24cm

Outer carton box 56*34.5*42CM

Goods weight 4.83kg/pcs

G.W  20.45KG/CTN





NEW BGA Rework Station 4in1 Hot Air Gun With Iron SMD Soldering Welder And Fume Applications



1. Industrial production of electronic products assembly

2. Scientific research departments for product development

3. Repair industry for electronic product repair

4. Enterprises electrician soldering operation

5. Electronic technology enthusiasts electronics assembly

6. Students of various Colleges Electrical Skills Training

7. Suitable for a various kind of soldering or desoldering ( removals ) purposes of the electronic components such as SOIC , CHIP , QFP , PLCC , BGA , SMD , etc. ( especially mobile phone's cable ) .Shrinking , Paint drying, adhesive removal, thawing , warming , Plastic welding.




NEW BGA Rework Station 4in1 Hot Air Gun With Iron SMD Soldering Welder And Fume The Inner Box Include parts


* main unit + gun + power cord

* guide

* soldering iron handle with smoke absorber

* soldering iron holder +gun frame+ clean sponge

* 4 nozzles+5pcs smoke absorber sponge

*1pcs IC-pick up

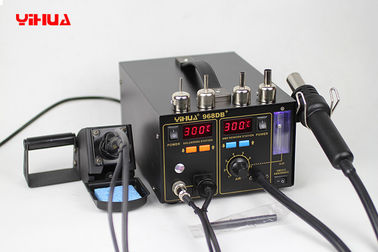

NEW BGA Rework Station 4in1 Hot Air Gun With Iron SMD Soldering Welder And Fume pictures Display
