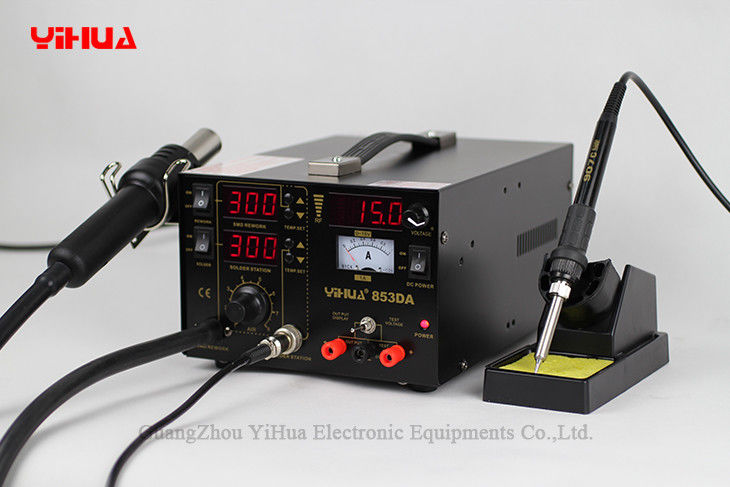

4 Nozzles Electronic Mobile Phone Rework Station With DC Power Supply YIHUA 853DA

4 Nozzles Electronic Mobile Phone Rework Station With DC Power Supply YIHUA 853DA

  • 4 Nozzles Electronic Mobile Phone Rework Station With DC Power Supply YIHUA 853DA
  • 4 Nozzles Electronic Mobile Phone Rework Station With DC Power Supply YIHUA 853DA
  • 4 Nozzles Electronic Mobile Phone Rework Station With DC Power Supply YIHUA 853DA
  • 4 Nozzles Electronic Mobile Phone Rework Station With DC Power Supply YIHUA 853DA
4 Nozzles Electronic Mobile Phone Rework Station With DC Power Supply YIHUA 853DA
Product Details:
Place of Origin: GUANGZHOU , CHINA
Brand Name: YIHUA
Certification: CE
Model Number: 853DA 1A
inner box size: 33*27*20.2cm
outercarton box size: 56*34.5*42cm
goods weight: 5.25kg / pcs
G.W.: 22.13KG / CTN
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: 4PCS / CTN
Delivery Time: As per the order quantity confirmed
Payment Terms: TT/ PYAPAL , WESTERN UNION
Contact Now
Detailed Product Description
High Light:

soldering rework station

,

smd rework station





4 Nozzles Electronic Mobile Phone Rework Station With DC Power Supply YIHUA 853DA



Dear Customers

 Recently illegal criminals counterfeit our machine that the machine we have independent intellectual  property rights. Use three non false and inferior to assemble the device,machine handle serious  security risks, the crisis to the user's safety. Recently, we will take action in every major internet  sales platform to take activism. Infringement of our intellectual property to promote fake and shoddy products off the shelf as soon as possible to ensure the user's safety. Please  must  be careful to identify when you purchasing , avoid fooled .



4 Nozzles Electronic Mobile Phone Rework Station With DC Power Supply YIHUA 853DA are Patented products , counterfeiting not allowed





4 Nozzles Electronic Mobile Phone Rework Station With DC Power Supply YIHUA 853DA Feature



1. it has hot air rework , soldering station , powe supply 3 in 1 multi-functional tools , A product can meet customer testing , maintenance , welding and other demolition work .

2. Products within the exclusive use of double panels , patch (SMD) process , dual-CPU control , it has prolong lifetime.

3. Inside has dual-CPU control , one of the bad , the other can continue to work , it ensure the main unit stability.

4. LED accurate display real-time temperature of the current work , procedures in milliseconds to high speed track of the air gun and soldering iron actual temperature , rapid temperature compensation enhance the temperature stability . Avoid temperature error leading to damage delicate components , welcome to users thermometer test.

5. Use high quality Diaphragm pump air outlet , air is focus on and air pressure big , strong winds and long service life.

6. Air gun heater use of long-life Skeleton heating elements,long-term use it , will not deformation and not short-circuit , air gun handle air outlet tube and nozzles’s material is stainless steel.

7. Iron heater use of new crafts and high-quality material , it prolong using lifetime , reducing the failure rate.

8. Power supply part voltage 0~15V current 0~1A , its scope is far higher than the independent power supply , the most advanced short circuit protection auto recovery circuit , to full maintenance functions suitable for mobile phone maintenance , commissioning of production lines , laboratories and other occasions.





4 Nozzles Electronic Mobile Phone Rework Station With DC Power Supply YIHUA 853DA Main Function



1). Iron and gun temperature are using Intelligent Fuzzy logic PID control , therefore the temperature steady-state drift is relatively small , it overcomes the drift quite quickly even in a harsh environment.

2). Fan's airflow capacity,Iron and Hot air rework's temperature are all adjustable , the power supply  voltage is shown on the LED digital display , and it is constantly updated.

3). Iron , Gun and  power supply are using independent dual-core micro-controller , which means they can work independently , when the problem occurs on one tool it does not affect the others. Dual-core CPU is used to avoid failures .

4). Hot air rework , soldering iron are equipped by variety of fault protection

5). Power supply part of the recovery with continuous protection and RF protection , to avoid various unexpected burning mobile the phenomenon of interference.

6). The DC power supply provides power to a mobile phone , it can also detect the RF signal's strength through the LED indicator.





4 Nozzles Electronic Mobile Phone Rework Station With DC Power Supply YIHUA 853DA Technical Data



Rated voltage  AC 220V±10% 50HZ ( 110V±10% 50HZ )

Whole machine  Power Consumption  ≤800W

Work environment  0-50°C





Iron parts



Gun parts



DC power supply parts



work Voltage AC 26V±10% 50HZ



work Voltage  AC 220V±10% 50HZ( 110V±10% 50HZ)



work Voltage AC 220V±10% 50HZ ( 110V±10% 50HZ)



Output power 50W±10%



Output power 600W±10%



Output power 15W / 30W



Temperature range 200°C-480°C



Temperature range 100°C-480°C



Output voltage 0-15V



Temperature stability±2°C



Temperature stability ±2°C

Load stability <0.01±2mv


Tip of ground impedance<2ohm

Gun type Diaphragm pump

Airflow is focus on it , 24L~28L / Min



recovery time <100us

Tip of ground voltage  <2mV

Gun heater resistance 90Ω

Ripple dB<1mvrms (virtual value)

Iron Heater material Common heater

Gun heater material Nickel-alloys



Temperature coefficient <300PPm/°C

Iron handle Black handle

Protection starting current >standard value 10%





What's In 4 Nozzles Electronic Mobile Phone Rework Station With DC Power Supply YIHUA 853DA Inner Box


* main unit + gun + power cord

* guide

* soldering iron

* soldering iron holder +gun frame+testleadest cable
* 4 nozzles





4 Nozzles Electronic Mobile Phone Rework Station With DC Power Supply YIHUA 853DA







These are 220V units you may need a transformer to use the machine in your country. we also do accept special orders for 110V  / 230V/ 240V units.





4 Nozzles Electronic Mobile Phone Rework Station With DC Power Supply YIHUA 853DA Our warranty



*Credit Safeguard



GuangZhou YiHua Electronic Equipments Co,. Ltd  was signed a contract with Alibaba and  paid a large deposit, make buyers fee l comfortable buying



* Factory advantage



Factory D&R / production / sales / and sales service together.

Manufactory  sell directly, the goods are in plenty supply , delivery date fast , good compete price You could arrange to ship the goods by your self , or  ask we help you arrange to ship . If  we help you arrange to ship. Before quote the shipping freight , we need to know which model and quantity you are asking. We will according your detail address, order model and quantity to advise  you ship by sea  or ,  by air , or by Express . As usual, we are using HongKong DHL to ship the small order.



* Delivery date



Over 100~over 500pcs are 20 days  will ship out . Over 1000pcs are 30days .

If the material not enough or we have some customer  queue up our products before you,

we will discuss with you the shipping date. If you want the delivery date faster than that day , please inquiry us , we will try to do it as your request.



* Warm-Heart  Note



1.If products upgrade or quality improve to change the technique parameter , the factory will not further notice.

2.If the customer haven't special request , the product in accordance with factory's setting quality standards to produce
