968DB+ vacuum soldering station

Features

1. LED display air gun and iron work temperature, function indicates at a glance and nice.

2. It adopts more powerful, more stable performance of the Samsung CPU.

3. Only four buttons, operate simply and clearly.

4. Air speed ball dynamic display airflow .

5. It adopts PID precision temperature control algorithm, the temperature fluctuation range of ≤ ± 1 °C.

6. -50 °C to +50 °C temperature compensation function

7. Fahrenheit / Celsius temperature conversion functions.

8. Soldering iron has smoke absorbed function. Smoke generated by soldering iron was immediately sucked away, after a dust-sheet absorption, filtration, this function is to achieve air purification effect, to bring users healthy, environmentally friendly work environment, no longer have to worry about the smoke produced for the use of soldering iron

9. High temperature automatic protection .

10. Airflow :28L/min, by the strong pressure of the pump as the air source,long life.

11. The machine part of the device has a self-test function, the whole intelligent over-temperature, short circuit, open circuit, overload, fault indication and protection functions.

12, The air gun steel tube use stainless steel tube, the air gun handle lines and soldering iron handle lines are silicone wire, high temperature, you can use for a long time.

13. All functions data setting is automatically saved, without duplication.

14. 3 in 1 repairing station the combines Hot Air Rework Gun with a Soldering Iron and a Smoke Absorber

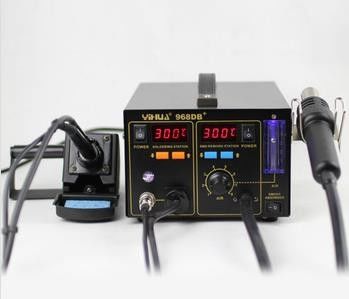

YIHUA 968DB+ vacuum soldering station products pictures
