AF402 Adjustable Height Elemental Analyzers, Atomic Fluorescence Spectrometer

Product Details:

Brand Name:	PG instruments
Certification:	CE
Model Number:	AF402

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Contact for a quote
Packaging Details:	Carton package, 1280x800x800mm, 100kg
Delivery Time:	Contact for confirmation
Payment Terms:	T/T,L/C
Supply Ability:	500 units per year

Contact Now

Detailed Product Description

High Light:

Atomic Fluorescence Spectrometer

Atomic Absorption Spectrophotometer

AF402 Adjustable Height Elemental Analyzers, Atomic Fluorescence Spectrometer

Detection Limit

Element	Detection Limit (ug/L)	RSD (%)
As, Se, Pb, Bi, Te, Sn, Sb	< 0.01	< 1.0
Hg, Cd	< 0.001	< 1.0
Zn	< 1.0	< 1.0
Ge	< 0.05	< 1.0

Applications:

Agricultural

Food and Beverage

Public Health

Clinical

Pharmaceutical

Geological

Metallurgical

Petrochemical

Specifications:

Sample Automisation
Atomizer	Quartz tube furnace with auto ignition of argon/hydrogen flame
Furnace heating	Computer controlled heating
Hydride generator	Continuous flow high performance for cold-vapour mercury and hydride determinations of As, Se, Te, Bi, Sb, Sn, Zn, Pb, Cd, Ge
Gas requirement	High purity argon gas (99.99%) 30psi pressure
Sample and Delivery
Peristaltic pump	3 channel pump with 3 adjustable pressure control clamps and programmable speed control
Exhaust system	Built in with filter to decontaminate pollutants
Gas/liquid separator	High efficiency two-stage gas-liquid separator
Autosampler
Type	XYZ built in design
Sample introduction	High sample capacity, automated introduction of sample and standards by motorized syringe drive
Sample capacity	2 x45 standard test tube sample racks
Optics
Optical design	Short focal length, non-dispersive integrated optical design
Light source	3 channel simultaneous element analysis using computer controlled. Modulated and pulsed, hollow cathode light source
Baseline stability	<2%
Linear range	>10
Computer System
Operating software	PF Win software
Safety	Alarm for low gas <50ml/min. Gas cut off in the event of power supply loss
Power requirements	220Vac+10% 50/60hz 300W
Dimensions	100.6x58x55cm

The Atomic Fluorescence Spectroscopy (AFS) technique is widely used for determination of hydride forming elements and Mercury analysis. The technique provides an alternative to the conventional method of connecting a hydride generator to an Atomic Absorption Spectrophotometer (AAS). Due to the high intensity Hollow Cathode lamp source and low baseline noise offered by this technique, the usable sensitivity is greatly improved offering very low detection limits (ppt).

The AFS instrument fulfils the analysis by means of simultaneous detection, accurate sample introduction and stable furnace temperature control complementing the more widely used AAS flame/graphite systems.

Standard Features

Light Source

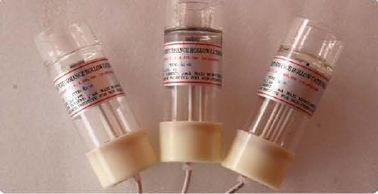

High intensity Hollow Cathode lamps for greater intensity and stability

Up to three lamps can be installed for simultaneous analysis

All lamps are uniquely data coded offering important information to the PF Win operating software

Optical System

Shielded optical design greatly reduces light interference

Enhanced signal to noise ratio for increased analytical sensitivity

Unique optical configuration for increased fluorescence intensity. Up to twice the fluorescence intensity found in traditional AFS systems.

High Quantum Solar Blind Photomultiplier Tube fitted as standard to ensure optimum stability

Atomiser System

High precision quartz atomizer tube designed for optimum performance, durability and long life
Self-igniting Argon/Hydrogen flame with software controlled heater coil

Adjustable height control for improved optimization

Integrated fume exhaust system to decontaminate pollution

Hydride Generator

Built in hydride generator with continuous flow
Multi-pump with individual pressure adjustment for uptake control of reagents and carrier liquids

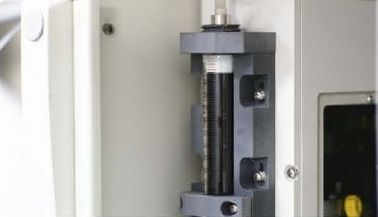

Introduction of sample using motorized syringe drive and unique three way control valve. Software controlled for greater accuracy

High efficiency glass liquid separator which optimizes the separation minimizing pressure fluctuations and improving measurement precision

Reagent compartment stores reagents safely and cleanly. Storage for up to four containers

Low level reagent monitoring

Autosampler

Integrated autosampler
XYZ configuration
x 45 vial trays for automated sample introduction
Auto dilution using motorized syringe drive and selection valve
Full calibration using only one stock standard solution
Fully controlled by the PF Win software
Electronic Control System
High technology electronics and PCB components
Rear mounted and separated electronic section to eliminate carry over from hydride technique
PF Win instrument control software
