High Precision BGA ESD mobile phone soldering station YIHUA 878AD
Main Function
1. Comfortable portable handheld and the Digital LED display.
2. Microcomputer control,warming-up quickly.
3. Adjust the air flow and temperature control rotatin.
4. Refer to the instructions included with three kinds of nozzles (big,medium and small) replacement part.
5. Would replace the part if the resistance value is incorrect.
6. When the temperature is less than 70°c, can stop rotation automatically.
7. Intelligent system that could alarm , Fault detection automatically.
8. YIHUA 878AD Digital Lead-Free Solder SMT SMD Soldering Station Unit is ESD-protected.
9. High-quality resistance good for long service life
10. Shell using alloy material, elegant appearance.
11. Safe solder QFP, PLCC, BGA and other temperature-sensitive components.
12. Intelligent detection and cool airflow features.
13. Green lines and high-quality silicone body heat good for extend life and save power.
| Power consumption | 700W | ||
| Gun temperature range | 100-450oC | Soldering Iron Temperature range | 200-450oC |
| Gun type |
Brushless fan Air flow:120L/MIN |
Soldering Iron type | Black handle |
| Gun heater material | Nickel-Alloys | Soldering Iron heater material | Common heater |
| Gun heater resistance | 74Ω | Soldering Iron heater resistance | 15Ω |
| Model NO. |
Inner box Dimension(cm) |
Outer box Dimension(cm) |
QTY | Product weight |
| YIHUA 878AD | 26*16.5*14.8 | 54*35*31 | 8pcs | 2.61kg |
Remark
Specifications and design subject to change without notice

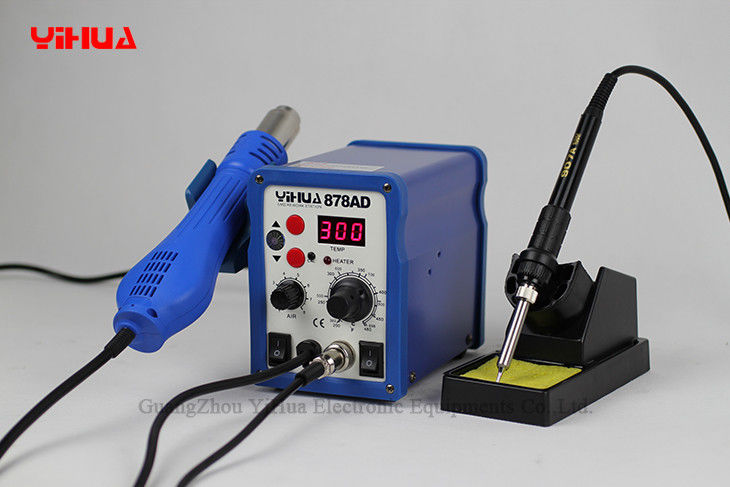

High Precision BGA ESD mobile phone soldering station YIHUA 878AD Display
What's In The Box
* main unit + gun + power cord
* guide
* soldering iron
* soldering iron holder
* 3 nozzles
*1pcs IC pick-up
*1pcs small spanner
These are 220V units, you may need a transformer to use the machine in your country.
we also do accept special orders for 110V / 230V/ 240V units.
