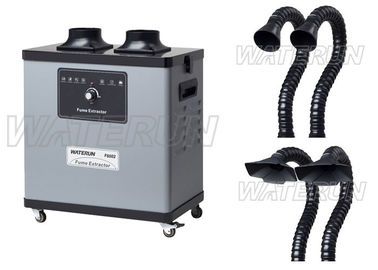

Laser Soldering Fume Extractor , Solder Welding Fume Extractor High Efficiency

Laser Soldering Fume Extractor , Solder Welding Fume Extractor High Efficiency

  • Laser Soldering Fume Extractor , Solder Welding Fume Extractor High Efficiency
Laser Soldering Fume Extractor , Solder Welding Fume Extractor High Efficiency
Product Details:
Place of Origin: China
Brand Name: Waterun
Certification: CE/ROHS/SGS
Model Number: F6002
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: 52x35x54cm/set, 15kgs
Delivery Time: about 7-10 working days after received your payment
Payment Terms: T/T, western Union or Paypal
Supply Ability: 1,000pcs per month
Contact Now
Detailed Product Description
Product Name: Solder Fume Extractor Power: 200W
Air Velocity: 2 X 11m/s Systemic Flow: 2 X 150m3/h
Dimension: 420 X 245 X400mm Ducts: 2
Noise: Less Than 60db Filtering Efficiency: 0.3micron 99.97%
Description: Laser Soldering Fume Extractor Ducts Dis.: 75mm And 50mm
High Light:

soldering fume extractor

,

portable solder fume extractor



Laser Soldering Fume Extractor , Solder Welding Fume Extractor High Efficiency



Specifications:



Model Number:

F6002

Power: 200W
Voltage: 110V~220V AC

Systemic Flow:

2 x 150m3/h

Air Velocity:

2 x 11m/s

Filtering Efficiency:

0.3micron 99.999%

Diameter of Dust: 75mm and 50mm

Noise:

Less than 60dB

Dimensions(mm)

420x245x400

Net weight

13kgs

Application Soldering fume removel and purify system






Description:

1. The fume extractor is easy to install and no need to lay plpelinesor
.


2. The air flow of fume extractor is freely adjustable and the ducts of fume extractor can be bent or lengthened as desired and maintain the shape.


3. The freestanding flexible ducts of fume extractor facilitate production changeovers.



4. Wheels are available for the fume extractor which is easy to move and station.


5. The fume extractor has a triple-filter system design.
- Pre-Filter: the large-size pad filter can filter large particles of dust
- Middle Filter: it filters the bigger powders for prolonging the main filter's life.
- Main Filter: it includes HEPA (high efficiency) filter and gas filter. The HEPA cleans the gas and powders filtering from the pre-filter and then carry them to the gas filter. which with the carbon and other chemical combination, filters off the deleterious substance and then outputs the clean air.


6. We have been selling a good quantity of our solder fume extractors to Germany, Israel, UK and a few other European countries. And we got quite good and positive feedback from them on the quality and performance of our products.


7. We make really effective fume extractors only which are widely used in the process of soldering, laser marking & carving, printing, etc.





Features:


- It realizes powerful suction with quiet operation;



- Brushless motor ensures low noise, stable performance, and long product life;



- Triple-filter design. Pre-filters and Main Filters can be replaced separately for prolonging the filter‘ s life time and cutting down the cost:



- Built-in air cycling filtering system avoids discharging the cool/hot air to outside;



- It is easy to install and no need to lay pipelines;



- The airflow is freely adjustable according to working environments;



- Freestanding flexible ducts facilitate production changeovers;



- Ducts can be bent or lengthened as desired and maintain their shape after adjustment, letting you place them exactly where suction is needed.





Applications:

Waterun Technology Co.,Ltd manufacturing a variety of high quality air purification systems for filter the harmful substances. Our line of floor, bench top, mounted and portable units serve a variety of applications including welding, soldering, manufacturing, laboratory and pharmaceutical operations.Don’t despair if you don’t see your application listed below! Our modular product line can be configured in a number of different ways to address your specific requirements.Contact us today to find out the solutions!



1.

 soldering fume extractor

2.

 laser cutting, laser engraving and marking

3.

 electronics Manufacturing

4.

 welding, laser welding

5.

 medical, moxibustion, moxa-moxibustion

6.

 beauty fume extraction

7.

 Pharmaceutical and laboratories, chemical

8.

 3D printing

9.

 dust collector






Competitive Advantage:

Our company uses a brushless motor, compare with the ordinary motor, this motor speed is higher, lower noise, it does not require maintenance, but longer product life span. Self-developed impeller, better quality than ordinary plastic impeller, more stable, more powerful suction. The unique tiered filter design, can effectively purify the toxic and harmful substances in the air, such as formaldehyde, benzene, ammonia, radon gas, sulfur dioxide..etc, and use of low cost.


Compared with the products from foreign countries, our products in terms of the effect is almost the same, but the majority of our products are less than USD2000, so our products are cost-effective, and the use of more affordable cost. The products from abroad mainly purify the viruses and bacteria as the main direction of governance. In China not only to purify viruses, bacteria, but also clean harmful smoke pollution. WHO estimates that there are over 200 million people deaths each year due to inhalation of indoor and outdoor air pollution in small particles.





FQAs:

1. What’s the functions for the filters?
Answers. 1) Pre-Filter/F8 pre-filter: the large-size pad filter can filter large particles of dust (according the requirement to select pre-filter or F8)
2) PP Middle Filter/Fiber glass filter: it filters the middle-size, small size particles bigger powders for prolonging the main filter's life. (according the requirement to select PP middle filter or fiber glass filter,can use both, the efficiency better.)
3) Main Filter/Active carbon: it cleans harmful particles and fumes.
4) High efficiency filter(combine middle filter and active carbon filter): it can filter about 0.3micron particles and other harmful fumes.

2. What’s the advantage compare with ducted exhaust fan?
Answer: 1. Many advantages like (1) Clean the air quality (2) energy saving (3) easy installation, flexible remove (4) low cost (5) reduce the incidence of diseases and major diseases, and health is priceless (6) to reduce unpleasant  smell (7) to reduce dust and other harmful substances, and so on.

3. What’s the life span of our fume extractor?
Answer: Motor lifetime is (continuous working 24 hours) 20,000 hours, consider environmental factors. Usually it can use 4-5 years without any problems.



4. How long need to to replace the pre-filter, middle filter and the main filter?
Answer: 1. Pre-filter : normally needs to replace by 1 months
             2. Middle filter: normally needs to replace by 3 months
             3. Main filter: normally needs to replace by 6 months.


5. The ducts for the fume extractor can be shortened or lengthened?
Answer: It can be shortened or lengthened appropriate; but we suggest not more than 1.5meter. For multi-station, the total pipe length should not exceed 10 meters.

6. What’s the best distance between the nozzle and the smokes?
Answer: The distance to be 5-15cm is the best.


7. Can our fume extractor completely filtered poison gas?
Answer: No, there still no any kind of filter can filter out 100% of poison gas, but you can make a different filter net rate upon request.

8. Bent pipe will affect smoke purify?
Answer: Yes, it affect the suction power, it should reduce the bent rate.
