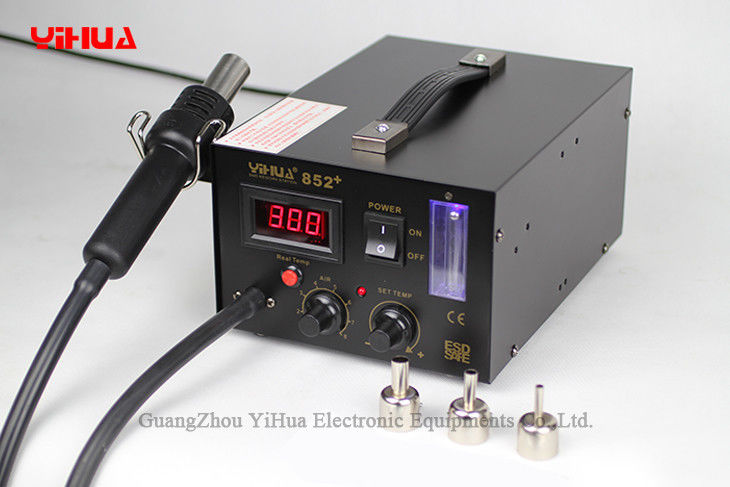

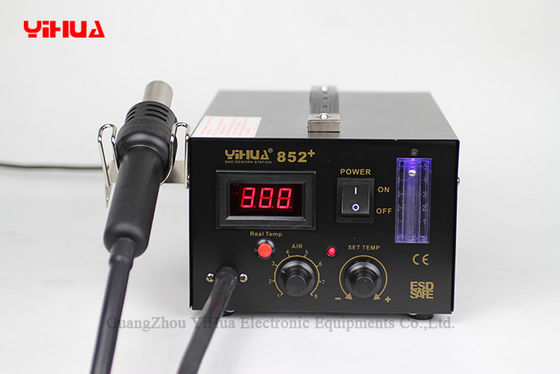

YIHUA-852+ PID Control Welding Mchina For Iphone 5 Mother Board Repair

YIHUA-852+ PID Control Welding Mchina For Iphone 5 Mother Board Repair

  • YIHUA-852+ PID Control Welding Mchina For Iphone 5 Mother Board Repair
  • YIHUA-852+ PID Control Welding Mchina For Iphone 5 Mother Board Repair
  • YIHUA-852+ PID Control Welding Mchina For Iphone 5 Mother Board Repair
YIHUA-852+ PID Control Welding Mchina For Iphone 5 Mother Board Repair
Product Details:
Place of Origin: Guangzhou China
Brand Name: YIHUA
Certification: CE
Model Number: 852+
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Packaging Details: 6PCS / CTN
Payment Terms: T/T / WESTERN UNION / PAYPAL
Contact Now
Detailed Product Description
High Light:

soldering desoldering station

,

smd rework station





YIHUA-852+ PID Control Welding Mchina For Iphone 5 Mother Board Repair





Technical Data



Power Consumption 560W±10%
Working environment 0~50°C / 0~122°F
Storage environment -20°C~80°C/-68°F~176°F
Airflow type Diaphragm pump spiral wind
Air Flow ≤28L / min
Airflow display type air wind ball dynamic display
Temperature Range 100°C-480°C / 212°F~896°F
Gun temperature display type LED display
Temperature Stability ±1°C





Main Function



1. Digital LED display air gun work temperature.

2. Latest microcomputer processor PID programmable temperature control technology and implantation of the most high-end precision PID program , warming-up quickly , stablity and precision .

3. By the strong pressure of the pump as the air source , long life , the use of the wind speed ball dynamic display of the simulated air flow and intuitive to understand.

4. Equipped with three kinds of nozzles ( big , medium  and  small ) replacement part.

5. Self-test function , the whole intelligent over-temperature , short circuit , open circuit , overload , fault indication and protection functions.

6. When the temperature is less than 70 degree , can stop rotation automatically.

7. This product is ESD-protected.

8. High-quality resistance good for long service life

9. Shell using alloy material , elegant appearance.

10. Safe solder QFP, PLCC, BGA and other temperature-sensitive components.

11. Silicone line good for extend life and save power.





What Difference For Brushless Fan And Diaphragm Pump?


Diaphragm pump the air are focus , airflow are 28L / min. Brushess fan the air are soft ,airflow are 120L/min.



Model NO.

Inner box

Dimension(cm)

Outer box

Dimension(cm)

QTY

Product Net weight

YIHUA 852+

32*27*19.8

58*35*63.5

6pcs

3.5kg





Remark



Specifications and design subject to change without notice











What's In The Box



main unit + gun + power cord

guide

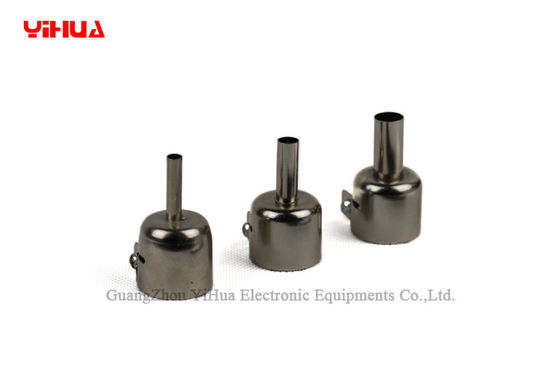

3 nozzles



These are 220V units. we also do accept special orders for 110V  / 230V / 240V units
