soldering desoldering station,
smd rework station

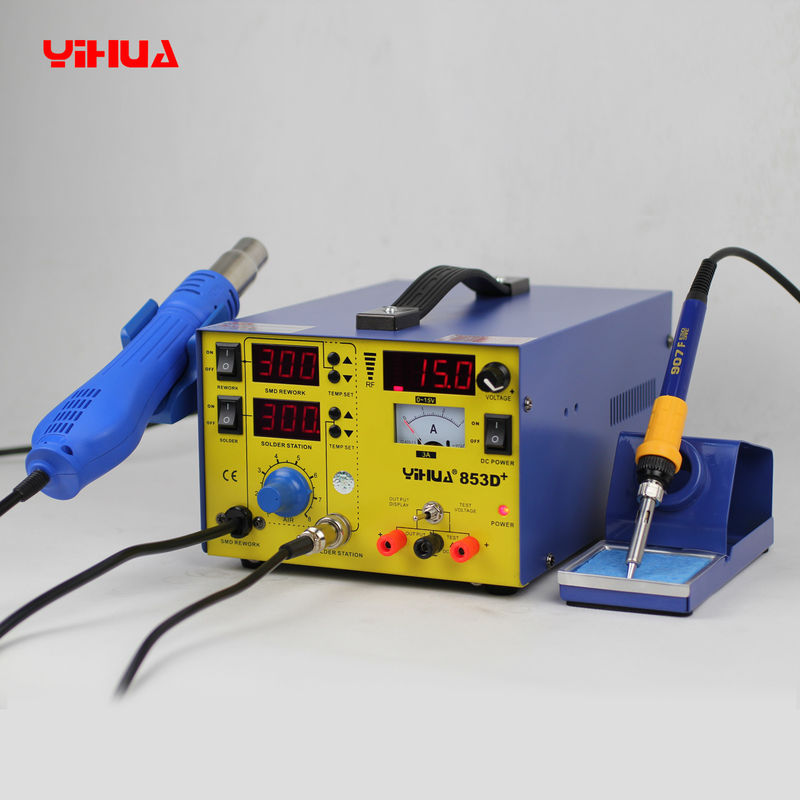

YIHUA 853D+ 3 In 1 Hot Air Mobile Phone Rework Station , Lead Free Soldering Rework Stations
Recently illegal criminals counterfeit our machine that the machine we have independent
intellectual property rights .Use three non false and inferior to assemble the device ,
machine handle serious security risks, the crisis to the user's safety. Recently , we will
take action in every major internet sales platform to take activism.Infringement of our
intellectual property to promote fake and shoddy products off the shelf as soon as
possible to ensure the user's safety . Please must be careful to identify when you
purchasing, avoid fooled !
3 In 1 Hot Air Mobile Phone Rework Station , Lead Free Soldering Rework Stations are Patented products , counterfeiting not allowed
3 In 1 Hot Air Mobile Phone Rework Station , Lead Free Soldering Rework Stations Feature
1. It has hot air rework , soldering station, power supply 3 in 1 multifunctional tools , A product can meet customer testing , maintenance , welding and other demolition work.And every part of the configuration and quality are much higher than the market independent of soldering station , hot air rework , power supply.
2. Products within the exclusive use of double panels , patch (SMD) process , dual CPU control, one of the bad , the other can continue to work , its stability and life is much higher than similar products on the market.
3. LED accurate display real time temperature of the current work , procedures in milliseconds to high speed track of the air gun and soldering iron actual temperature , rapid temperature compensation enhance the temperature stability.Avoid temperature error leading to damage delicate components , welcome to users thermometer test.
4. Air gun heater using long-life ceramic skeleton heater , long-term use it , will good shape and not short-circuit , air gun handle air outlet tube and nozzles’ material is stainless steel , rapid temperature compensation
enhance the temperature stability.Avoid temperature error leading to damage delicate components , welcome
to users thermometer test.
5. Standard life of 30,000 hours of high quality brushless fan , handle cable using high temperature resistant silicone lines.
6. Iron heater using High power import heating elements , In addition to adapt to the general welding , but also particularly suitable for high strength , high temperature , large spot welding.
7. Power supply part 15V 3A , its scope is far higher than the independent power supply , the most advanced
short circuit protection auto recovery circuit , to full maintenance functions suitable for mobile phone maintenance
commissioning of production lines , laboratories and other occasions.
3 In 1 Hot Air Mobile Phone Rework Station , Lead Free Soldering Rework Stations Main Function
1). 3 in 1 SMD Soldering Rework Station with power supply YIHUA 853D+ tegrate all merits of 853D series,it uses double-sided fiberglass circuit board material , the components installation processes are performed orderly to ensure the clarity of electric signal flow.
2). The Soldering station , Hot air rework's temperature are using Intelligent Fuzzy logic PID control , therefore the temperature steady-state drift is relatively small , it overcomes the drift quite quickly even
in a harsh environment.
3). Fan's airflow capacity , Soldering Iron and Hot air rework's temperature are all adjustable , the power supply voltage is shown on the LED digital display , and it is constantly updated.
4). Power supply part of the recovery with continuous protection and RF protection , to avoid various unexpected burning mobile the phenomenon of interference.
5). The DC power supply provides power to a mobile phone , it can also detect the RF signal's strength through the LED indicator.
6). Soldering iron, Hot air rework and dc power supply are using independent dual-core micro-controller , which means they can work independently , when the problem occurs on one tool it does not affect the others. Dual-core CPU is used to avoid failures.
7). Hot air rework , soldering iron are equipped by variety of fault protection
3 In 1 Hot Air Mobile Phone Rework Station , Lead Free Soldering Rework Stations Technical Data
Rated voltage AC 220V±10% 50HZ ( 110V±10% 50HZ)
Total Power 720W+75W+15W=810W±10%(max)
Work environment 0-50°C
DC power supply parts
work Voltage AC 26V±10% 50HZ
work Voltage AC 220V±10% 50HZ( 110V±10% 50HZ)
work Voltage AC 20V±10% 50HZ ( 110V±10% 50HZ)
Output power 75W±10%
Output power 720W±10%
Output power 15W/30W/45W
Temperature range 200°C-480°C
Temperature range 100°C-480°C
Output voltage 0-15V
Temperature stability ±2°C
Temperature stability ±2°C
|Load stability <0.01±2mv|
Tip of ground impedance <2ohm
recovery time <100us
Tip of ground voltage <2mV
Ripple dB <1mvrms ( virtual value )
|Heater Import high-power heater||
Temperature coefficient <300PPm / °C
|Color Blue handle||
Protection starting current >standard value 10%
3 In 1 Hot Air Mobile Phone Rework Station , Lead Free Soldering Rework Stations Applications
1. Industrial production of electronic products assembly
2. Scientific research departments for product development
3. Repair industry for electronic product repair
4. Enterprises electrician soldering operation
5. Electronic technology enthusiasts electronics assembly
6. Students of various Colleges Electrical Skills Training
7. Suitable for a various kind of soldering or desoldering ( removals ) purposes of the electronic components such as SOIC , CHIP , QFP , PLCC , BGA , SMD , etc. (especially mobile phone's cable ).
8. Shrinking , Paint drying , adhesive remova , thawing , warming , Plastic welding .
9. Mobile phones repair it provides power supply , circuit board voltage testing , and detects mobile radio
signal's strength , etc
What's In 3 In 1 Hot Air Mobile Phone Rework Station , Lead Free Soldering Rework Stations Inner Box
* main unit + gun + power cord
* soldering iron
* soldering iron holder +gun frame+testleadest cable
* 4 nozzles
* 1pcs IC pick-up
3 In 1 Hot Air Mobile Phone Rework Station , Lead Free Soldering Rework Stations
These are 220V units you may need a transformer to use the machine in your country. we also
do accept special orders for 110V / 230V / 240V units
SMD High Precision IC 2 In 1 Soldering Station / Solder Stations Our warranty
* Credit Safeguard
GuangZhou YiHua Electronic Equipments Co,. Ltd was signed a contract with Alibaba and paid a large deposit, make buyers fee l comfortable buying
* Factory advantage
Factory D&R / production / sales / and sales service together.
Manufactory sell directly,the goods are in plenty supply , delivery date fast , good compete price You could arrange to ship the goods by your self , or ask we help you arrange to ship . If we help you arrange to ship. Before quote the shipping freight , we need to know which model and quantity you are asking. We will according your detail address, order model and quantity to advise you ship by sea or , by air , or by Express . As usual, we are using HongKong DHL to ship the small order.
* Delivery date
Over 100~over 500pcs are 20 days will ship out . Over 1000pcs are 30days .
If the material not enough or we have some customer queue up our products before you,
we will discuss with you the shipping date. If you want the delivery date faster than that day , please inquiry us , we will try to do it as your request.
* Warranty Policy
One Years warranty
As usual , the shipping fee are high . if return China to repair are not worth the money. So we could support technology and give you the spare parts along with the product .
Note warranty does not cover wearing parts , for example iron heater , gun heater , iron tips .
