BGA Cell Phone 3 In 1 Temperature Controlled Soldering Station / Solder Stations

BGA Cell Phone 3 In 1 Temperature Controlled Soldering Station / Solder Stations

  • BGA Cell Phone 3 In 1 Temperature Controlled Soldering Station / Solder Stations
  • BGA Cell Phone 3 In 1 Temperature Controlled Soldering Station / Solder Stations
BGA Cell Phone 3 In 1 Temperature Controlled Soldering Station / Solder Stations
Product Details:
Place of Origin: Guangzhou China
Brand Name: YIHUA
Certification: CE
Model Number: 992DA+
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 4PCS / 1CTN
Payment Terms: T/T / PAYPAL / WESTERN UNION
Contact Now
Detailed Product Description
High Light:

cell phone soldering station

,

Lead free Solder Station





BGA Cell Phone 3 In 1 Temperature Controlled Soldering Station / Solder Stations



Soldering Station with vacuum high precision LCD show the gun and iron temperature .

BGA Cell Phone 3 In 1 Temperature Controlled Soldering Station / Solder Stations are  patented products , the Patent No.  2012303190461 , we are  not allowed counterfeit .






BGA Cell Phone 3 In 1 Temperature Controlled Soldering Station / Solder Stations Features


1. A large-screen LCD display , function indicates at a glance and nice.
2. It adopts more powerful, more stable performance of the Samsung CPU.
3. Only four buttons , operate simply and clearly.
4. Dynamic wind speed display.
5. It adopts PID precision temperature control algorithm, the temperature fluctuation range of ≤ ± 1 °C.
6. -50 °C to +50 °C temperature compensation function
7. 0-99 minutes sleep time setting function
8. Fahrenheit / Celsius temperature conversion functions.
9. Manual / automatic mode switching function
10. Soldering iron has suction smoke function , we'd never have to worry about the smoke generated by the

soldering iron.
12. High temperature automatic protection and alarm functions
13. The air gun has automatic detection , protection , alarm function , and more comprehensive protection for

 product safety and reliability.
14. The air gun steel tube use stainless steel tube, the air gun handle lines and soldering iron handle lines are

silicone wire , high temperature , you can use for a long time.
15. All functions data setting is automatically saved , without duplication.
16. The new memory automatically identify and restore to factory data.
17.  3 in 1 repairing station the combines Hot Air Rework Gun with a Soldering Iron and a Smoke Absorber





BGA Cell Phone 3 In 1 Temperature Controlled Soldering Station / Solder Stations function


a). Add to three storage sections CH1 / CH2 / CH3, each storage segment can store
all the features of the current machine  ( eg airflow , temperature , air gun manual /
automatic mode , iron sleep time , temperature correction ...... which is currently on
 display all function values can be stored ) , you can quickly switch between each
storage segmen t.
b). Airflow adjustment knob add to cool/hot air function , through the knob at entry /
 press out the implementation.Cool air is not heated wind , can be used to cool
components (such as circuit boards , components , etc.) temperatures.





BGA Cell Phone 3 In 1 Temperature Controlled Soldering Station / Solder Stations Technical Data


Power consumption 720W
Soldering Iron Temperature range 200-480°C
Gun Temperature range 100-480°C
Gun heater material Nickel-alloys
Gun heater resistance 90Ω
Soldering Iron Type Blue Handle
Soldering Iron Heater material imported high-power heater
Gun type Diaphragm pump  Air flow 28L / min
QTY 4PCS/Outer box carton Goods G.W. 5.16KG / PCS

OUTER  G.W. 21.65 KG / CTN

Outer box size 56*34.5*42cm




What's In BGA Cell Phone 3 In 1 Temperature Controlled Soldering Station / Solder Stations Inner Box


* main unit + gun + power cord
* guide
* soldering iron handle with smoke absorber
* soldering iron holder + gun frame + clean sponge

* 5 nozzles+ 5pcs smoke absorber sponge

*1 pcs IC pick-up

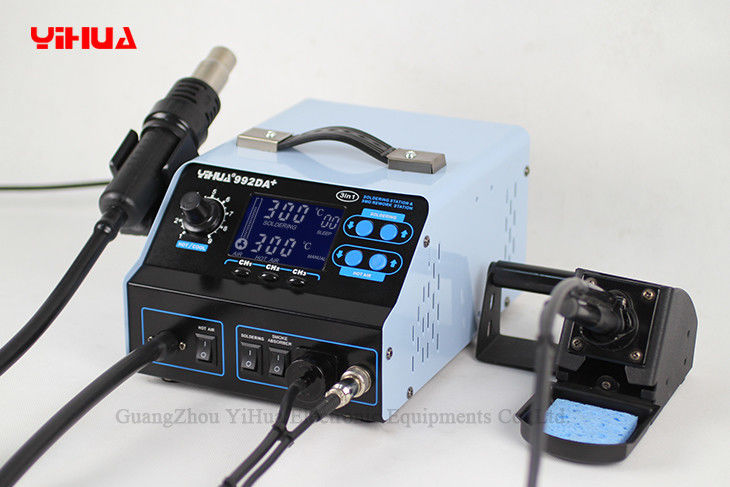

BGA Cell Phone 3 In 1 Temperature Controlled Soldering Station / Solder Stations Picture











These are 220V units,you may need a transformer to use the machine in your country. we also do accept special  orders for 110V  / 230V / 240V units





BGA Cell Phone 3 In 1 Temperature Controlled Soldering Station / Solder Stations Our Warranty
