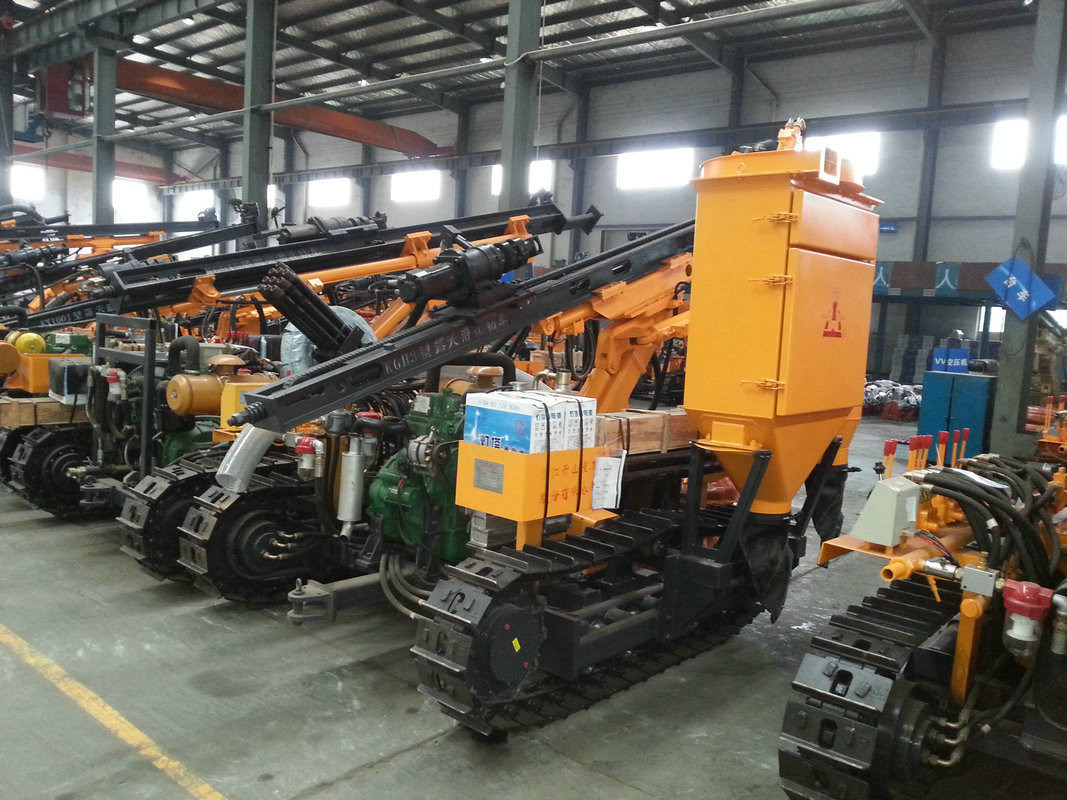

Crawler drilling rig with dust catcher for Quarry , Highway , Water and electricity

Crawler drilling rig with dust catcher for Quarry , Highway , Water and electricity

  • Crawler drilling rig with dust catcher for Quarry  , Highway , Water and electricity
Crawler drilling rig with dust catcher for Quarry  , Highway , Water and electricity
Product Details:
Place of Origin: ZHEJIANG CHINA
Brand Name: KAISHAN
Certification: ISO9001
Model Number: KGH3
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden package as customer requirement
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000
Contact Now
Detailed Product Description
Condition: New Type: Rotary Drilling Rig
Power Type: Diesel Rock Hardness: Rock Hardness
After-sales Service Provided: Engineers Available To Service Mac
High Light:

drilling rig equipment


crawler drilling rig

Mining portable crawler drilling rig with dust catcher KH3  Dia hole:80-115mm  depth:30m

High torque crawler drilling rig from China manufacturer

1, Safe and stable traveling system of   Crawler Drilling Rig

2, Powerful and reliable engine of  Crawler Drilling Rig

3, Mew type boom of  DTH Crawler Drilling Rig

 4, Powerful feeding and rotating system of crawler drilling rig



Working site and useage

1.   This series machine are used in a wide variety of Quarry ,Highway , Water and electricity , Surface mine and deep hole joint pipe drill work on the building project etc.


 2.  This series drilling rigs with air compressor,hammer together work , To blasting horizontal hole ,vertical holes ,inclines holes .





  • Metal crawler mounted, adapting to various terrain
  • Solid structure, practical and high efficiency
  • 2-speed working rev, meet your various need
  • Hydraulic winch, dependable to work
  • 45 HP 2-cylinder diesel engines, powerful to drill
  • YL series crawler mounted DTH drilling rigs are ultimate combination of performance and economy
  • DTH system delivers the highest-possible drilling performance at low running cost.
  • DTH rigs used in variety heavy industry, such as to drill blasting holes like small to medium mining projects, national defnse projects, irrigation projects, road construction and etc.
  • YL series down-the-hole drills are ideal equipment for down-hole blasting.
  • Equiped with Kaishan new designed high efficency dust collector




Dia.of hole 80-115mm
Optium drilling depth 30m
Working pressure 7-14bar
Air consumption 13-18m3/min
Ground clearance 290mm
Feed power 5000N
Lift power 15KN
Speed of rotator 0-65rpm
Rotation torque 983N·M
Climb capacity 25o
Traveling speed 0-2.5km/h
Dimensions 4100×2080×2020mm
Weight 3500KG
Diesel  33KW
Drilling Components
1.Hammer CW930
2. Dia. Of rod Φ60mm & Φ76mm
2.Length of Rod 3m
3. Dia.of Bit Φ70-100mm






1. Adopt famous 4 cylinder diesel engine as driving force which has

advantages of large power, small volume, small vibration and reliable operation.
2. Adopt patent diesel engine air inlet regulating device

(Patent No. : 200820087606.3) and desert air filter three-stage filter. That strengthens the mobile drilling rig’s adaptability to severe

environment and lengthened the diesel engine’s service life.
Optimally designed luffing mechanism and round drilling boom with the advantages

of neoteric structure and easy maintenance greatly improves the drilling hole’s

coverage area. That also makes low-order horizontal hole drilling available



Our equipments have been exported to more than 100 countries all around the world and gain a good reputation both at home and abroad. We have established cooperationrelationship  with many universities to update technology and  meet various needs from our customers.
