Dust Industrial Fume Extractor Air Purification System For Chemical Experiments

Dust Industrial Fume Extractor Air Purification System For Chemical Experiments

  • Dust Industrial Fume Extractor Air Purification System For Chemical Experiments
Dust Industrial Fume Extractor Air Purification System For Chemical Experiments
Product Details:
Place of Origin: China
Brand Name: Waterun
Certification: CE/ROHS/SGS
Model Number: F6001
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: 54x35x53cm/set, 12kgs
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, western Union or Paypal
Supply Ability: 1,000pcs per month
Contact Now
Detailed Product Description
Type: Industrial Fume Extractor Filter: Pre-filter,Middle Filter And Main Filter
Length Of Duct: Dia.75mm X 1.4m Noise: Less Than 55 DB
Size: 420 X 245 X400mm Voltage/Power: 110V-220V 80W
Systemic Flow: 235m3/h Filtering Efficiency: 0.3um99.97%
High Light:

solder smoke extractor

,

industrial smoke eater

Dust Industrial Fume Extractor Air Purification System For Chemical Experiments



Specifications:



Model Number:

F6001

Filters Quantity:

Pre-filter 1 pc,middle filter 1 pc and main fliter 1 pc

Voltage/Power:

110-220V, 80W

Systemic Flow:

235m3/h

Absorbing Efficiency:

 99.97%

Length of pipe:

1.4m

Noise:

Less than 55db

Dimensions(mm)

420x245x400

Net weight

12kgs

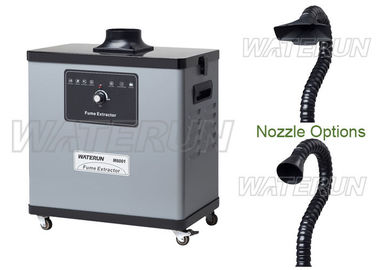

F6001 is the filtering system designed by our company especially for electronic soldering tin, tin-furnace immersion smog treatment, widely used for electronic appliances and chemical experiments.
Machine body is light and handy, easily for movement and can be used upon simple installation.

Dust Industrial Fume Extractor Air Purification System For Chemical Experiments 0Dust Industrial Fume Extractor Air Purification System For Chemical Experiments 1Dust Industrial Fume Extractor Air Purification System For Chemical Experiments 2Dust Industrial Fume Extractor Air Purification System For Chemical Experiments 3Dust Industrial Fume Extractor Air Purification System For Chemical Experiments 4Dust Industrial Fume Extractor Air Purification System For Chemical Experiments 5



Main features of Fume Extractor:


1. Integrated body design, structured with metal framework and processed with electrostatic spraying for premium cold-rolled steel sheet, is corrosion-resistant, environment-friendly and durable.

   Original noise reduction structure design enables it to work more quietly and create a more tranquil and pleasant environment.

   Unique modeling curve design of original “air inlet flange” better accords with fluid mechanics principle

   Microcomputer intelligent control and digital display keep you informed of the use condition all the time.
Really effective intelligent “filter element blockage alarm” function gives an acousto-optic alarm immediately upon filter element blockage.

   Available for remote operation; stepless speed regulation for you to regulate air volume and suction force arbitrarily without the necessity of bending over and lowering your head.

   Small, easy to use and install; standard castor for convenient and flexible movement.



2. Four-stage purification design: filtering step by step enables harmful smoke to be better purified. Even for objects at least 8 times smaller than PM2.5, the purification rate can reach up to 99.97%.
   Active carbon filter element with catalyst can absorb multiple substances that exist in the air to be purified and are with foreign odor, toxic and harmful.
   Modular design for protection layer by layer: Independent replacement of primary, medium and high-efficiency filter elements enables longer service life of filter element and lower use cost.
   Energy conservation and environmental protection: Built-in circular initiative filtering method can prevent indoor cold air/warm air from flowing outside without destroying temperature and humidity environment in the operation section.



3. This product has the 1.4m universal smoke suction arm, which can be positioned and oriented arbitrarily (its length may be regulated according to customer requirements, without the support of external force).
    Original square-shaped smoke hood, uniquely structured in accordance with aerodynamics principle, has larger smoke suction area and better efficiency. (A patent application has been filed.)
    Easy installation and convenient use without the necessity of laying pipes otherwise.



4. Adopt DC brushless motor that has stable performance and long service life. Low noise, high efficiency, low energy consumption, zero maintenance and zero consumable.
    The wind wheel, designed in vortex backward type, adopts special alloy material that could effectively prevent itself from being corroded. Unique dynamic balance correction technology enables it to operate more stably and reliably, with higher wind suction volume.



5. CE and PONY certified, safe and reliable.
    Designed according to standards: Indoor Air Quality Standard, GB21551.1- 2008 and GB/T 18801.
    Awarded national appearance design patent and the overall structure utility model patent. No counterfeiting is allowed.
