Guangzhou EPT Environmental Protection Technology Co.,Ltd
High quality, Best service,Reasonable price.
Place of Origin: | China |
Brand Name: | Waterun |
Certification: | CE/ROHS/SGS |
Model Number: | M6002D |
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotiation |
Packaging Details: | 52x35x54cm/main body:14.5kgs 43x42x21cm/duct:2.5kg |
Delivery Time: | about one week after received the TT payment |
Payment Terms: | T/T, western Union or Paypal |
Supply Ability: | 1,000pcs per month |
Product: | Laboratory Fume Extractor | Application: | Purify The Smells And Fumes |
---|---|---|---|
Material: | Metal,Plastic,HEPA Filter | Power: | 200W |
Noise: | <60dB | Voltage: | 110V/220V |
Nozzle: | Large Aluminium Nozzles | Filtering Efficiency: | 0.3micron 99.97% |
High Light: | laboratory fume hood,laboratory air purifier |

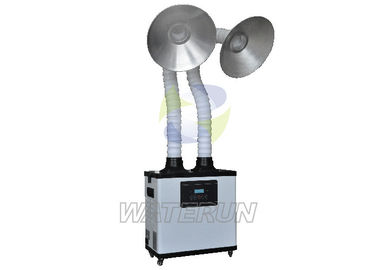

Electric Laboratory Fume and Dust Extraction with Large Aluminum Nozzles
Specifications:
Model Number: |
M6002D |
Filters Quantity: |
pre-filter 5pcs, middle filter 1pc, main filter 1pcs |
Voltage/Power: |
110-220V, 200W |
Systemic Flow: |
2 x 150m3/h |
Filtering Efficiency: |
0.1micron 99.999% |
Length of Duct: |
Dia.75mm with big round aluminum nozzles |
Noise: |
Less than 60dB |
Dimensions(mm) |
420x245x400 |
Net weight |
13kgs |
Description:
Waterun Fume Purifying and Filtering System is for cleaning of both particles and gases. It is designed to filter the harmfu substances, such as hydrocarbon and cyanide, during the process of soldering, tin dipping in the solder pot, laser marking and carving, printing, etc. It catches harmful smoke with freestanding ducts and adjustabl air volume to significantly improve your working environment.
It has a triple-filter system:
1) Pre-Filter: the large-size pad filter can filter large particles of dust
2) Middle Filter: it filters the bigger powders for prolonging the main filter's life.
3) Main Filter: it includes HEPA (high efficiency) filter and gas filter. The HEPA cleans the gas and powders filtering from the pre-filter and then carry them to the gas filter. which with the carbon and other chemical combination, filters off the deleterious substance and then outputs the clean air.
- With the intelligent control panel and digital display, the operation becomes easy and simple. By pressing the button, you can freely adjust the air volume and set the working time. You can achieve real-time monitoring on the working status.
- Equipped with the remote control, the operator can control the machine from a distance.
- With the truly sensitive and effective "Filter Clogging Alarm System". When the filter gets saturated and clogged, the machine will give sound and light alarms within 10 seconds. It notifies the operator to relace the filter in time, to guarantee a comfortable working environment.
- The high-voltage and large-volume brushless motor, ensures low vibration, low noise, stable operation, and long life span..
- Ducts can be bent or lengthened as desired and maintain their shape after adjustment, letting you place them exactly where suction is needed.
- The large aluminium nozzles can maximum the purifying areas.
Features:
1.Integrated body design, structured with metal framework and processed with electrostatic spraying for premium cold-rolled steel sheet, is corrosion-resistant, environment-friendly and durable.
2.Unique modeling curve design of original “air inlet flange” better accords with fluid mechanics principle.
3.Original square-shaped smoke hood, uniquely structured in accordance with aerodynamics principle, has larger smoke suction area and better efficiency.
4.This product has the 1.4m universal smoke suction arm, which can be positioned and oriented arbitrarily (its length may be regulated according to customer requirements, without the support of external force).
Applications:
Waterun Technology Co.,Ltd manufacturing a variety of high quality air purification systems for filter the harmful substances. Our line of floor, bench top, mounted and portable units serve a variety of applications including welding, soldering, manufacturing, laboratory and pharmaceutical operations.
Don’t despair if you don’t see your application listed below. Our modular product line can be configured in a number of different ways to address your specific requirements.Contact us today to find out the solutions!
1. |
soldering fume extractor |
2. |
laser cutting, laser engraving and marking |
3. |
electronics Manufacturing |
4. |
welding, laser welding,Argon Arc welding |
5. |
medical, moxibustion, moxa-moxibustion |
6. |
beauty fume extraction |
7. |
Pharmaceutical and laboratories, chemical |
8. |
3D printing |
9. |
dust collector |
Competitive Advantage:
Waterun's goal is to become a global supplier in the field of fume extractors, ESD Products, Tools & Instruments for electronic assemble industry.
1. Any Inquires will be replied within 24 hours.
2. All of our products 100% inspection before shipment, we guarantee to use our products safety.
3. OEM/ODM orders are warmly welcome.
4. We own the best after-sale service.If there any problems happen, our team will do our best to solve for customers.
5. Faster delivery, sample order in stock, and 3-7 days after bulk production.
Service
QC: All products will be checked before delivery.
Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
Operation Guidance: If you have any problem with operation, please feel free to contact us.
FAQ:
1. What’s the functions for the filters?
Answers.
1) Pre-Filter/F8 pre-filter: the large-size pad filter can filter large particles of dust (according the requirement to select pre-filter or F8)
2) PP Middle Filter/Fiber glass filter: it filters the middle-size, small size particles bigger powders for prolonging the main filter's life. (according the requirement to select PP middle filter or fiber glass filter,can use both, the efficiency better.)
3) Main Filter/Active carbon: it cleans harmful particles and fumes.
4) High efficiency filter(combine middle filter and active carbon filter): it can filter about 0.3micron particles and other harmful fumes.
2. What’s the life span of our fume extractor?
Answer:
Motor lifetime is (continuous working 24 hours) 20,000 hours, consider environmental factors. Usually it can use 4-5 years without any problems.
3. What’s the advantage compare with ducted exhaust fan?
Answer:
1. Many advantages like (1) Clean the air quality (2) energy saving (3) easy installation, flexible remove (4) low cost (5) reduce the incidence of diseases and major diseases, and health is priceless (6) to reduce unpleasant smell (7) to reduce dust and other harmful substances, and so on.
4. Bent pipe will affect smoke purify?
Answer:
Yes, it affect the suction power, it should reduce the bent rate.
5. The ducts for the fume extractor can be shortened or lengthened?
Answer:
It can be shortened or lengthened appropriate; but we suggest not more than 1.5meter. For multi-station, the total pipe length should not exceed 10 meters.
6. How long need to to replace the pre-filter, middle filter and the main filter?
Answer:
1. Pre-filter : normally needs to replace by 1 months
2. Middle filter: normally needs to replace by 3 months
3. Main filter: normally needs to replace by 6 months.
7. What’s the best distance between the nozzle and the smokes?
Answer:
The distance to be 5-15cm is the best.
8. Can our fume extractor completely filtered poison gas?
Answer:
No, there still no any kind of filter can filter out 100% of poison gas, but you can make a different filter net rate upon request.
