Lead Free Hakko 900M--T-B Repalceable Soldering Tips Conical Type

Lead Free Hakko 900M--T-B Repalceable Soldering Tips Conical Type

  • Lead Free Hakko 900M--T-B Repalceable Soldering Tips Conical Type
Lead Free Hakko 900M--T-B Repalceable Soldering Tips Conical Type
Product Details:
Place of Origin: China
Brand Name: WATERUN OR HAKKO
Certification: ROHS, SGS
Model Number: 900M-T-B
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: negotiation
Packaging Details: 10 pcs/pack or 1 pc/pack
Delivery Time: 3~5 days
Payment Terms: FOB Shenzhen, , T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
Supply Ability: 500, 000PCS/month
Contact Now
Detailed Product Description
Material: Oxygen-free Copper Feature: Lead Free Environmenta
Application: Hakko 936 937Soldering Station External Diameter: 0.5mm
Tip Length: 17mm Package: 1pc/pack
Heater: One-piece Composite Heater Color: Sliver
High Light:

Hakko Soldering Tip

,

tin solder tip

Lead Free Hakko 900M--T-B Repalceable Soldering Tips Conical Type





Description:



1. Long life span, solder fluent, and soldering tips can work beautiful joint point.

2. Good workmanship and easy to be replaced in the soldering station handle

3. High quality lead free copper raw material with fast heat conduction.

4. Adopt the new plating process,corrosion,antioxidant and environmental.

5. Used with Hakko 936, 937 and other equivalent soldering stations.

6. Not easy to be oxidizing

7. Shape B is All-round type which can be used from any direction and it is available for any works.

8. ot only accessible for the soldering beginners but also suitable for the experienced.







Pictures:

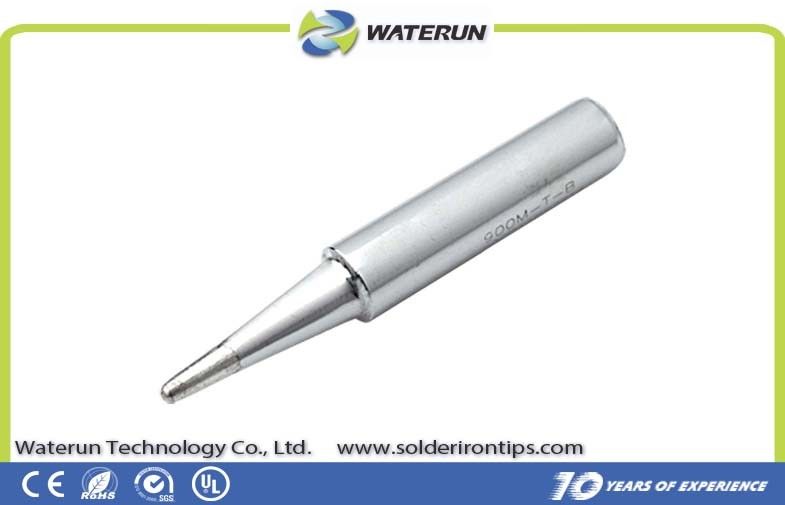

900M soldering tips series

Lead Free Hakko 900M--T-B Repalceable Soldering Tips Conical Type 0







Applications:



1. Wide used in soldering and welding industry

2. Good for precision welding or soldering cramped conditions

3. Can produce tin soldering chip Fixed bridges







Specifications:



HAKKO

Model

900M Soldering tips

900M-T-3.2LD, 900M-T-B, 900M-T-SB, 900M-T-S9, 900M-T-S8, 900M-T-S7,

900M-T-S6, 900M-T-S4, 900M-T-S3, 900M-T-RT, 900M-T-R1, 900M-T-LB,

900M-T-K , 900M-T-I, 900M-T-H , 900M-T-B, 900M-T-4CF, 900M-T-4C,

900M-T-3CF, 900M-T-3C, 900M-T-3.2D, 900M-T-2LD, 900M-T-2CF,

900M-T-0.8C, 900M-T-0.5C, 900M-T-RB, 900M-T-2C, 900M-T-2.4D,

900M-T-1CF, 900M-T-1C, 900M-T-1.8H, 900M-T-1.6D,  900M-T-1.5CF,

900M-T-1.2LD, 900M-T-1.2D, 900M-T-0.8D

900L Soldering tips

900L-T-I, 900L-T-B, 900L-T-2C, 900L-T-1C, 900S-T-1.6D, 900L-T-1.2D,

900L-T-SI, 900L-T-LB, 900L-T-K,  900L-T-I, 900L-T-B, 900L-T-5CF,

900L-T-5C, 900L-T-4CF, 900L-T-4C, 900L-T-3CF, 900L-T-3C, 900L-T-3.2D,

900L-T-2CF, 900L-T-2B, 900L-T-2.4D, 900L-T-1.6D

T12 Soldering tips

T12-B, T12-B2, T12-B3, T12-BL, T12-BC1, T12-BC2, T12-BC3, T12-C1,

T12-C4,   T12-D0.8, T12-D12, T12-D16, T12-D24, T12-D4, T12-D52, T12-IL,

T12-ILS,  T12-K,  T12-KF,  T12-KL, T12-KR, T12-KU

N452 & N454 soldering tips

N452-T-B, N452-T-2C, N452-T-3C, N452-T-4C, N452-T-I, N454-T-B, N454-T-I







Tip Cleaning Notes:

01)Work 100 is  the reserved profile for tip cleaning via compressed air(blue outlet)
02)If the sponge cleaner is utilized,air-blow cleaning is normally not required.
03)Some application require air-blow &sponge tip cleaning(depending upon tip type)
04)Standard cleaning duration is 0.5 second
05)The iron tip does not need to be extended if not required
06)The air-blow cup is not included with the standard Luna system







Solder Life:



Solder temperature

A grade approximately life

B grade approximately life

380°C

About 54 hours/45-50k solder joint

10-15k solder joint less than A grade

400°C

About 48 hours/40k solder joint

10-15k solder joint less than A grade

420°C

About 42 hours/35-40k solder joint

10-15k solder joint less than A grade

450°C

About 28 hours/30k solder joint

10-15k solder joint less than A grade

480°C

About 20 hours/20k solder joint

10k solder joint less than A grade





Competitive Advantage:



Our advantage:

1. Price: we always offer competitive prices and help our customers to cost down.

2. We supply a wide range of products and provide one-stop service for Electronic Assembly Industry.

3. We keep a lot of stock for regular products and we can support small orders. Usually, our lead time is

 just 3 days.

4. We can also customize the products to fulfill different requirements.

5. Credibility: We are the 6th year Alibaba Gold Supplier. Our customers are located all over the world.

6.Gratitude: We cherish and feel grateful to every customer for the business you give us. We are your

 reliable partner and will return to you with good products and good support.

7.Professional: We have been in this business for more than 10 years. We have a strong professional

 team with various experiences.

8. We keep doing new product development. Our goal is to enhance our competitive capacity constantly.

9. We are a leading manufacturer of ESD Products, Cleanroom Products, Tools & Instruments for

Electronic Assembly Industry.

10. Quality: we do 100% inspection before the shipment.

11. Promise: we are always ready to shoulder the responsibility if any loss caused to our customer

due to our mistakes.
