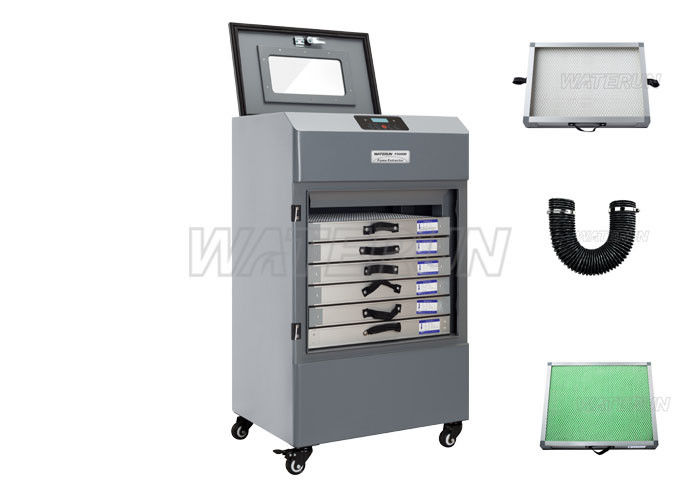

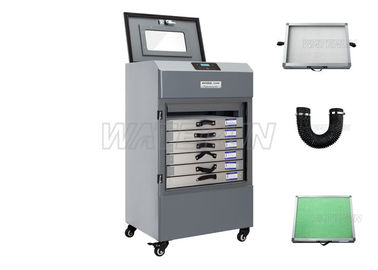

Brushless High Power Industrial Fume Extractor for Laser Cutting and Printing

Brushless High Power Industrial Fume Extractor for Laser Cutting and Printing

  • Brushless High Power Industrial Fume Extractor for Laser Cutting and Printing
Brushless High Power Industrial Fume Extractor for Laser Cutting and Printing
Product Details:
Place of Origin: China
Brand Name: Waterun
Certification: CE/ROHS/SGS
Model Number: F5000D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: 65x54x104cm/set, 70kgs
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, western Union or Paypal
Supply Ability: 1,000pcs per month
Contact Now
Detailed Product Description
Type: Soldering Fume Extractor Application: Powder Collection, Laser Printing , Welding
Filter: PP,glass Fiber And Active Carbon Filter Efficiency: 0.3um99.97%
Duct Diameter: Dia.90mm X 1.4m Voltage: 110V-220V
Systemic Flow: 500m3/h Advantage: DC Brushless Motor
Special Application: Can Be Used In Beauty Field
High Light:

smoke extractor

,

solder smoke extractor


Brushless High Power Industrial Fume Extractor for Laser Cutting and Printing


Specifications:

Model Number:

F5000D

Filters Quantity:

pre-filter 5pcs,PP filter 1pc,glass fiber filter 1pc, active carbon filter 4pcs

Voltage/Power:

110-220V, 450W

Systemic Flow:

500m3/h

Filtering Efficiency:

0.3micron 99.97%

Length of Duct:

Dia.90mm x1.4m

Noise:

Less than 70db

Dimensions(mm)

550 x 415 x 920

Net weight

60kgs



Description:

F5000D fume extraction systems effectively remove the fumes generated in many electronics manufacturing processes.Applications include solder smoke removal, reflow ovens, wave soldering, plasma cutting, conformal coating fumes and cleaning solvent fumes. These efficient and economical fume extractors are easy to install, reliable and safe.


Features:

  1. Integrated structural design of smoke filtration, easy for installation, mobile flexibly, not requiring a fume suction pipeline.
  2. Single or Double-station design, adjustable air flow, directional air control adjustment, positioning with ease.
  3. High-power brushless DC motor, long life, low noise, a large air flow.
  4. Triple fume filtration design ensure to totally filter out hazardous substances, protect the security of human. Initial filter, medium filter and main filter can be replaced individually, to make full use of filters to reduce the production cost.
  5. Built-in smoke filtration cycle design avoid expeling indoor cold/heat air outside.
  6. Multi-position design, adjustable air flow, flexible suction arm adjust freely.
  7. Low noise design


Attention



  • Don't block air inlet and outlet when using the machine.
  • When replacing filter,please make sure sealing ring, pull clasp, smoking pipe install closely to prevent air leakage.
  • Keep smoke hood surrounding air flow velocity in the minimum.
  • Make sure all pull clasp fasten when moving the machine.
  • Regular checking and replacing pre-filter,middle filter and main filter to avoid purifier blockage then cause equipment damage.
  • Please use the original filters and accessories, to avoid affecting the service life and the purification efficiency of the equipment.
  • Keep the distance between air inlet and smoke source point within 15 cm.
  • Don't use the product in high temperature and high humidity, flammable and explosive occasions.


Applications:

Our line of floor, bench top, mounted and portable units serve a variety of applications including welding, soldering, manufacturing, laboratory and pharmaceutical operations. Waterun Technology Co.,Ltd manufacturing a variety of high quality air purification systems for filter the harmful substances. Don’t despair if you don’t see your application listed below. Our modular product line can be configured in a number of different ways to address your specific requirements.Contact us today to find out the solutions!

1.

 soldering fume extractor

2.

 laser cutting, laser engraving and marking

3.

 electronics Manufacturing

4.

 welding, laser welding

5.

 medical, moxibustion, moxa-moxibustion

6.

 beauty fume extraction

7.

 Pharmaceutical and laboratories, chemical

8.

 3D printing

9.

 dust collector



Competitive Advantage:



1. Professional technician, which make sure the machine perfect. After serveral update, our machine can be operated more easilier .and the surface is safety and anti-acid.

2. Our company uses a brushless motor, compare with the ordinary motor, this motor speed is higher, lower noise, it does not require maintenance, but longer product life span.

3. The products from abroad mainly purify the viruses and bacteria as the main direction of governance. In China not only to purify viruses, bacteria, but also clean harmful smoke pollution. WHO estimates that there are over 200 million people deaths each year due to inhalation of indoor and outdoor air pollution in small particles.

4. Compared with the products from foreign countries, our products in terms of the effect is almost the same, but the majority of our products are less than USD2000, so our products are cost-effective, and the use of more affordable cost.
