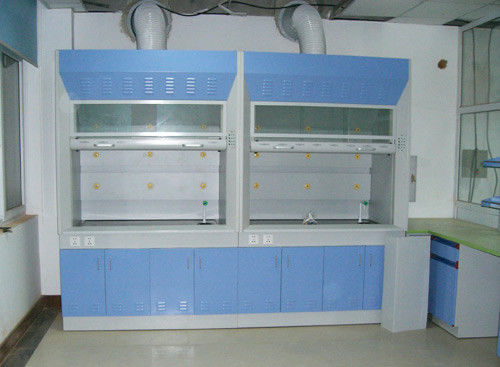

Fume hoods laboratory ,Fume extractor hoods, Fume cupboard design

Dongguan, Guangdong, China's HuaZhiJun laboratory fume hood: Size: 1200 * 800 * 2350,1500 * 2350,1800 * 800 * 800 * 2350,
Table: 12.7mm thick core physiochemical board countertops, acid and alkali resistant, wear-resistant, high temperature; along the edges stick handling, and a waterproof along; countertop color: black;
Cabinet: 1.2mm thick on the box with quality cold-rolled steel plate bending welding, surface pressure by epoxy powder electrostatic spray, acid;
The following box is 40mm * 60mm * 2.0mm steel sections welded into the overall framework for the surface treatment for anti-corrosion epoxy powder electrostatic spraying;
Wood and steel structure forming a box of high quality environmentally friendly Lushuihe melamine board, thickness 16mm, double-sided pressure-viscosity U.S. Wilsonart HPL, each edge with 2mm thick PVC edge banding high temperature hot water edge treatment.
All lower case with 1.5mm thick steel quality cold-rolled steel plate bending welding, surface high pressure epoxy powder electrostatic spray, acid and alkali.
Lining: with anti-fold special physical and chemical plate material lined plate and the guide plate;
Windows: Using 5mm thick tempered glass, CVT counterweight design, window down with ease, can stay in any position;
Distribution: selection Zhejiang Chint Premium Outlets, three-hole socket Specifications Rated current 16A, 10A five-hole socket, 25A/380V four-hole socket;
Exhaust: three exhaust design, no exhaust dead; adjustable air flow, surface wind speed up to 0.5m / s;
Lighting: 30W (40W) recessed fluorescent lighting;
Function: cabinet with leakage, overload, short-circuit automatic protection device, and with a fan control system, practical and safe;
Sink: 6mm thick imported PP material integrally molded with pressure, corrosion resistance and high temperature resistance, import
Tap: Tap Single dedicated fume hood with anti-corrosion properties, import;
Hinges: 90 degrees, 180 degrees adjustable hinge, Guangzhou production of quality hinges;
Foot: Stainless steel with rubber adjustable feet, adjustable height 50mm;
Work sliding door opening height: 800mm ~ 1000mm, HttP://WWW.LABFURNITURECHINA.COM
