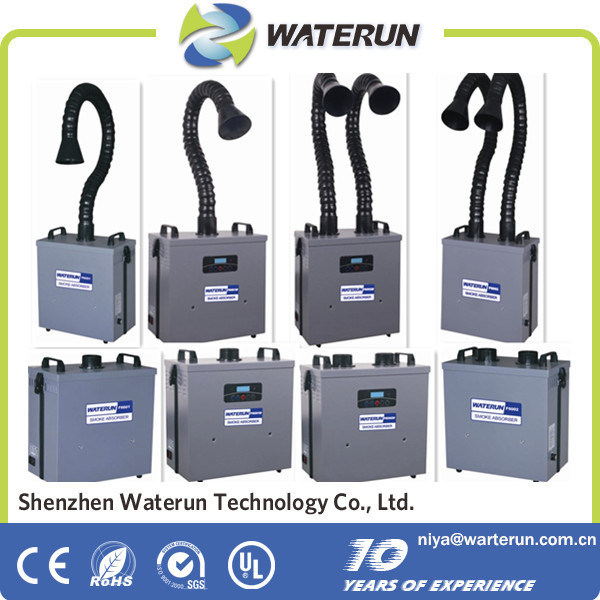

Portable Welding Solder Fume Extractor , soldering iron fume extractor

Portable Welding Solder Fume Extractor , soldering iron fume extractor

  • Portable Welding Solder Fume Extractor , soldering iron fume extractor
Portable Welding Solder Fume Extractor , soldering iron fume extractor
Product Details:
Place of Origin: China
Brand Name: WATERUN
Certification: ROHS, SGS,CE
Model Number: F6001 , F6001D , F6002 & F6002D
Contact Now
Detailed Product Description
High Light:

soldering fume extractor

,

welding fume extractor



Portable Welding Solder Fume Extractor , soldering iron fume extractor







Fume Extractor Quick Detail:



      1.   Fume Extractor with Digital Display or without Digital Display

      2. Brand:  WATERUN

      3. Model#:  F6001 , F6001D, F6002 &  F6002D

      4. Application: fume purifying and filtering

      5. Material:  metal, plastic, HEPA filter

      6. Features: Triple-filter design, powerful suction with quiet operation

      7. Usage: Used to absorb and filter the harmful fume during the process of soldering, laser marking,  printing, etc.







Fume Extractor Description:



It has a triple-filter system:



1) Pre-Filter: the large-size pad filter can filter large particles of dust

2) Middle Filter: it filters the bigger powders for prolonging the main filter's life.

3) Main Filter: it includes HEPA (high efficiency) filter and gas filter. The HEPA cleans the gas and powders filtering from the pre-filter and then carry them to the gas filter. which with the carbon and other chemical combination, filters off the deleterious substance and then outputs the clean air.



1. The fume extractor is designed to filter the harmful substances, such as hydrocarbon and cyanide,

    during the process of soldering, tin dipping in the solder pot, laser marking and carving, printing, etc.

2. The fume extractor catches harmful smoke with freestanding ducts and adjustable air volume to

    significantly improve your working environment.

3. We have been selling a good quantity of our Fume Extractors to Germany, Israel, UK and a few other

   European countries. And we got quite good and positive feedback from them on the quality and

   performance of our products.

4. We make really effective Fume Extractors only. They are widely used in the process of soldering, laser

    marking & carving, printing, etc.

5. The fume extractor has a triple-filter system.

6. The fume extractor is for cleaning of both particles and gases.











Fume Extractor Features:



1. With the intelligent control panel and digital display, the operation becomes easy and simple. By

    pressing the button, you can freely adjust the air volume and set the working time,. you can achieve

    real-time monitoring on the working status.

2. With the truly sensitive and effective "Filter Clogging Alarm System". When the filter gets saturated and

   clogged, the machine will give sound and light alarms within 20 seconds. It notifies the operator to

   replace the filter in time, to guarantee a comfortable working environment.

3. The High-voltage and large-volume brushless motor, ensure low vibration, low noise, stable operation.

    and long life span.

4. Ducts can be bent or lengthened as desired and maintain their shape after adjustment, letting you

    place them exactly where suction is needed.

5. Equipped with the remote control, the operator can control the machine from a distance.









Fume Extractor Applications:



1. Location: SMT factories, Electronic factories, workshops

2. Fume environmental equipment for workshop, used to absorb and filter the harmful fume during the

    process of soldering, laser marking, printing, etc.











Fume Extractor Specifications :



Model Voltage Power Ducts Systemic Flow Air Velocity Filtering Efficiency Length of Duct Noise Dimensions (mm) Weight
F6001D 110V/220V 80W 1 235m3/h 17m/s 0.3μm 99.97% Φ75mm x 1.4m <55dB 420 X 245 X 400 12 kg
F6002D 110V/220V 200W 2 2 x 150m3/h 2 x 11m/s 0.3μm 99.97% Φ75mm x 1.4m <60dB 420 X 245 X 400 13 kg










Competitive Advantage:



1. We supply a wide range of products and provide one-stop service for Electronic Assembly Industry.

2. We are a leading manufacturer of ESD Products, Cleanroom Products, Tools & Instruments for

Electronic Assembly Industry.

3. We keep a lot of stock for regular products and we can support small orders. Usually, our lead time

    is just 3 days.

4. We can also customize the products to fulfill different requirements.

5. Credibility: We are the 6th year Alibaba Gold Supplier. Our customers are located all over the world.

6. Gratitude: We cherish and feel grateful to every customer for the business you give us. We are your

   reliable partner and will return to you with good products and good support.

7. Professional: We have been in this business for more than 10 years. We have a strong professional

   team with various experiences.

8 . Quality: we do 100% inspection before the shipment

9. Price: we always offer competitive prices and help our customers to cost down.

10. We keep doing new product development. Our goal is to enhance our competitive capacity constantly.

11. Promise: we are always ready to shoulder the responsibility if any loss caused to our customer due

     to our mistakes.
