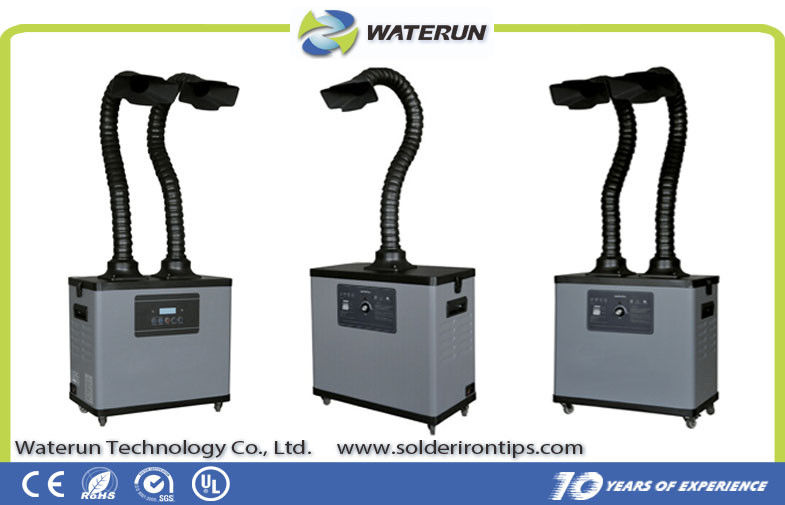

Industrial Efficient Solder Fume Extractor Absorb Welding Smokes

Industrial Efficient Solder Fume Extractor Absorb Welding Smokes

  • Industrial Efficient Solder Fume Extractor Absorb Welding Smokes
Industrial Efficient Solder Fume Extractor Absorb Welding Smokes
Product Details:
Place of Origin: China
Brand Name: WATERUN or OEM
Certification: ROHS, SGS,CE
Model Number: F6002D, F6001, F6002
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: 1 pcs /pack
Delivery Time: 7-10 days
Payment Terms: FOB Shenzhen, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000PCS/month
Contact Now
Detailed Product Description
Application: Fume Purifying And Filtering Application: Fume Purifying And Filtering
Noise: Less Than 60 DB, One Nozzle Less Than 55 DB Noise: Less Than 60 DB, One Nozzle Less Than 55 DB
Filtering Efficiency: 0.3um 99.97% Filtering Efficiency: 0.3um 99.97%
Power: 200W(2 Ducts), 80W (1 Duct) Power: 200W(2 Ducts), 80W (1 Duct)
Voltage: 110V / 220V Voltage: 110V / 220V
Systemic Flow: 235m3/h, 2 X 150m3/h Systemic Flow: 235m3/h, 2 X 150m3/h
Air Velocity: 17m/s , 2 X 11m/s Air Velocity: 17m/s , 2 X 11m/s
Length Of Duct: 75mm Diameter X 1.4m Length Length Of Duct: 75mm Diameter X 1.4m Length
Weight: 12kgs Or 13kgs Weight: 12kgs Or 13kgs
Material: Metal, Plastic, HEPA Filter Material: Metal, Plastic, HEPA Filter
High Light:

soldering fume extractor

,

welding fume extractor



Industrial Efficient Solder Fume Extractor Absorb Welding Smokes





New Technology:



    1). New elegant design for the casing
    2). Wide square nozzles
    3). With 4 castors for easy remove
    4). Alarm for replace the new filters




Description:



1. The fume extractor is for cleaning of both particles and gases.

2. The fume extractor is designed to filter the harmful substances, such as hydrocarbon and cyanide,

    during the process of soldering, tin dipping in the solder pot, laser marking and carving, printing, etc.

3. The fume extractor catches harmful smoke with freestanding ducts and adjustable air volume to

    significantly improve your working environment.

4. We have been selling a good quantity of our Fume Extractors to Germany, Israel, UK and a few other

   European countries. And we got quite good and positive feedback from them on the quality and

   performance of our products.

5. We make really effective Fume Extractors only. They are widely used in the process of soldering, laser

    marking & carving, printing, etc.

6. The fume extractor has a triple-filter system, powerful suction with quiet operation



Features:



1. With the intelligent control panel and digital display, the operation becomes easy and simple. By

    pressing the button, you can freely adjust the air volume and set the working time,. you can achieve

    real-time monitoring on the working status.

2. Equipped with the remote control, the operator can control the machine from a distance.

3.With the truly sensitive and effective "Filter Clogging Alarm System". When the filter gets saturated and

   clogged, the machine will give sound and light alarms within 20 seconds. It notifies the operator to

   replace the filter in time, to guarantee a comfortable working environment.

4. The High-voltage and large-volume brushless motor, ensure low vibration, low noise, stable operation.

    and long life span.

5. Ducts can be bent or lengthened as desired and maintain their shape after adjustment, letting you

    place them exactly where suction is needed.





Applications:



1. Location: SMT factories, Electronic factories, workshops

2. Fume environmental equipment for workshop, used to absorb and filter the harmful fume during the

    process of soldering, laser marking, printing, etc.

3. Used to absorb and filter the harmful fume during the process of soldering,laser marking, printing, etc.





Specifications:



Model

Voltage

Power

Ducts

Systemic

 flow

Air

Velocity

Filtering

 Efficiency

Length of

 Duct

Noise

Dimensions

(mm)

Weight

F6001

110v/220v

80W

1

235m3/h

17m/s

0.3µm

99.99%

D75mm  x1.4m

<55dB

420*245*400mm

12kg

F6002

110v/220v

200W

2

2*150m3/h

2x11m/s

0.3µm

99.99%

D75mm  x1.4m

<60dB

420*245*400mm

13kg

F6001D

110v/220v

80W

1

235m3/h

17m/s

0.3µm

99.99%

D75mm  x1.4m

<55dB

420*245*400mm

12kg

F6002D

110v/220v

200W

2

2*150m3/h

2x11m/s

0.3µm

99.99%

D75mm  x1.4m

<60dB

420*245*400mm

13kg

F800

110v/220v

35W

1

160m3/h



0.3µm

99.99%

D50mm

<50dB

300*270*300mm

4.5kg



Industrial Efficient Solder Fume Extractor Absorb Welding Smokes 0

Industrial Efficient Solder Fume Extractor Absorb Welding Smokes 1



Industrial Efficient Solder Fume Extractor Absorb Welding Smokes 2

Competitive Advantage:



Our advantage:

1. We are a leading manufacturer of ESD Products, Cleanroom Products, Tools & Instruments for

    Electronic Assembly Industry.

2. We supply a wide range of products and provide one-stop service for Electronic Assembly Industry.

3. We keep a lot of stock for regular products and we can support small orders. Usually, our lead time

    is just 3 days.

4. We can also customize the products to fulfill different requirements.

5. Credibility: We are the 6th year Alibaba Gold Supplier. Our customers are located all over the world.

6.Gratitude: We cherish and feel grateful to every customer for the business you give us. We are your

   reliable partner and will return to you with good products and good support.

7.Professional: We have been in this business for more than 10 years. We have a strong professional

   team with various experiences.

8. We keep doing new product development. Our goal is to enhance our competitive capacity constantly.

9. Price: we always offer competitive prices and help our customers to cost down.

10. Quality: we do 100% inspection before the shipment.

11. Promise: we are always ready to shoulder the responsibility if any loss caused to our customer due

     to our mistakes.
