Guangzhou EPT Environmental Protection Technology Co.,Ltd
High quality, Best service,Reasonable price.
|Place of Origin:||China|
|Model Number:||RTMW 20|
|Minimum Order Quantity:||1|
|Packaging Details:||carton or wooden box|
|Delivery Time:||20-30 days|
weld fume extractor,
soldering fume extractor
multi position welding fume extractor soldering with impulse counter blowing

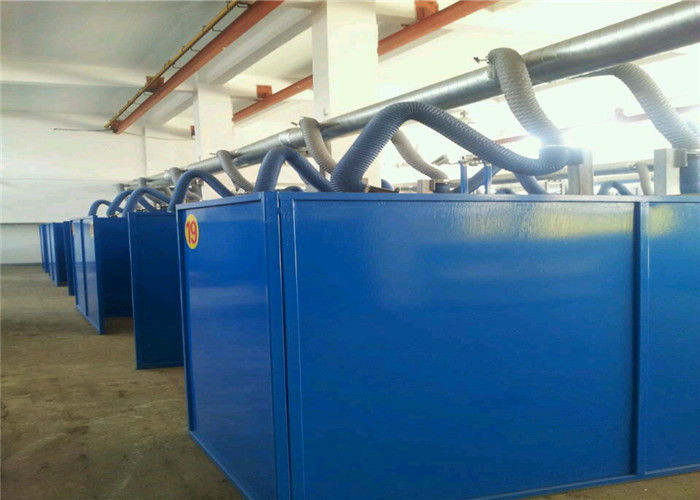

Multi-position welding dust cleaning system is used to clean dust generated while several welding positions are under operation simultaneously, which is required by large scale production.
Main pipe connected to the main machine of central type dust cleaner extends at one side .It may be connected by T pipe,I pipe ,reducer, and 90°elbow, and secured by fixtures. Suction arm (or suction cover) with necessary length may be installed at each working position ,in this way ,an entire multi-position welding dust cleaning system with the functions of suction ,filtering ,cleaning is installed .
Flexible suction arm sucks dusts and particles generated at dust generating position into central cleaning machine, and discharges clean air after filtration. The main machine may be positioned indoors and outdoors. Main pipe may use PVC pipe or galvanized screwed pipe, etc. according to customer requirements.
1. Suction arm may be flexibly extended, and can be easily positioned after rotation.
2. Multilevel of universal joints are designed. During welding operation, position and angle of suction cover may be adjusted accord¬ing to the change of welding point position, so that the best dust cleaning effect can be achieved
3. The suction cover is set with air volume control valve and handle. In order to prevent foreign bodies, the suction hood is also set with protective screen.
4. Suction cover is 360 rotatable The best effect for dust cleaning may be adjusted at any time.
5. Hose adopted by suction arm is the glass fiber with internal and external PVC coating. The internal pipe diameter is 0160mm, which is resistant to high temperature and corrosion.
